Code 46: (Solenoid Valve - Charge Relief Control)

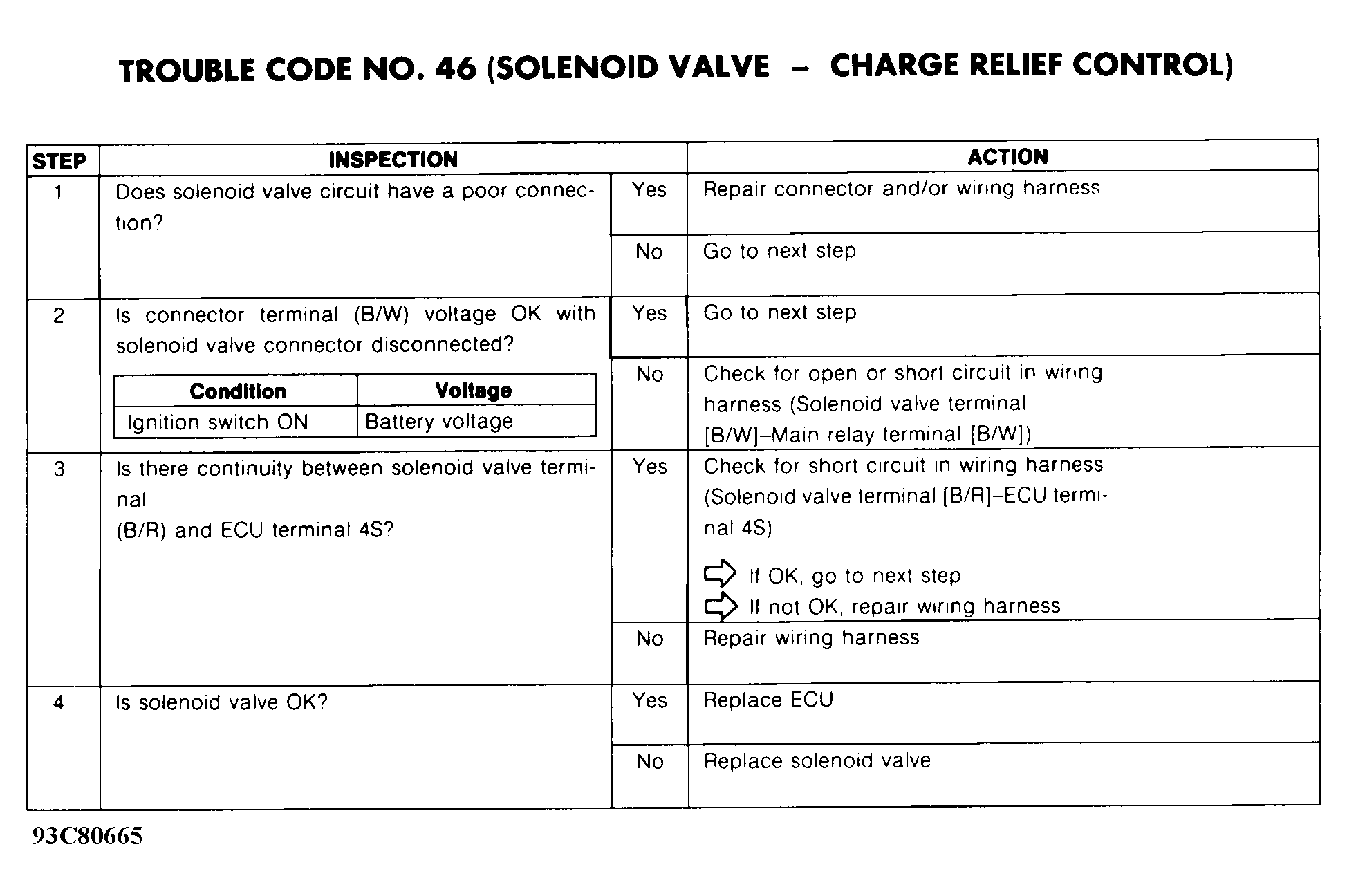

Fig 1: Trouble Code No. 46 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

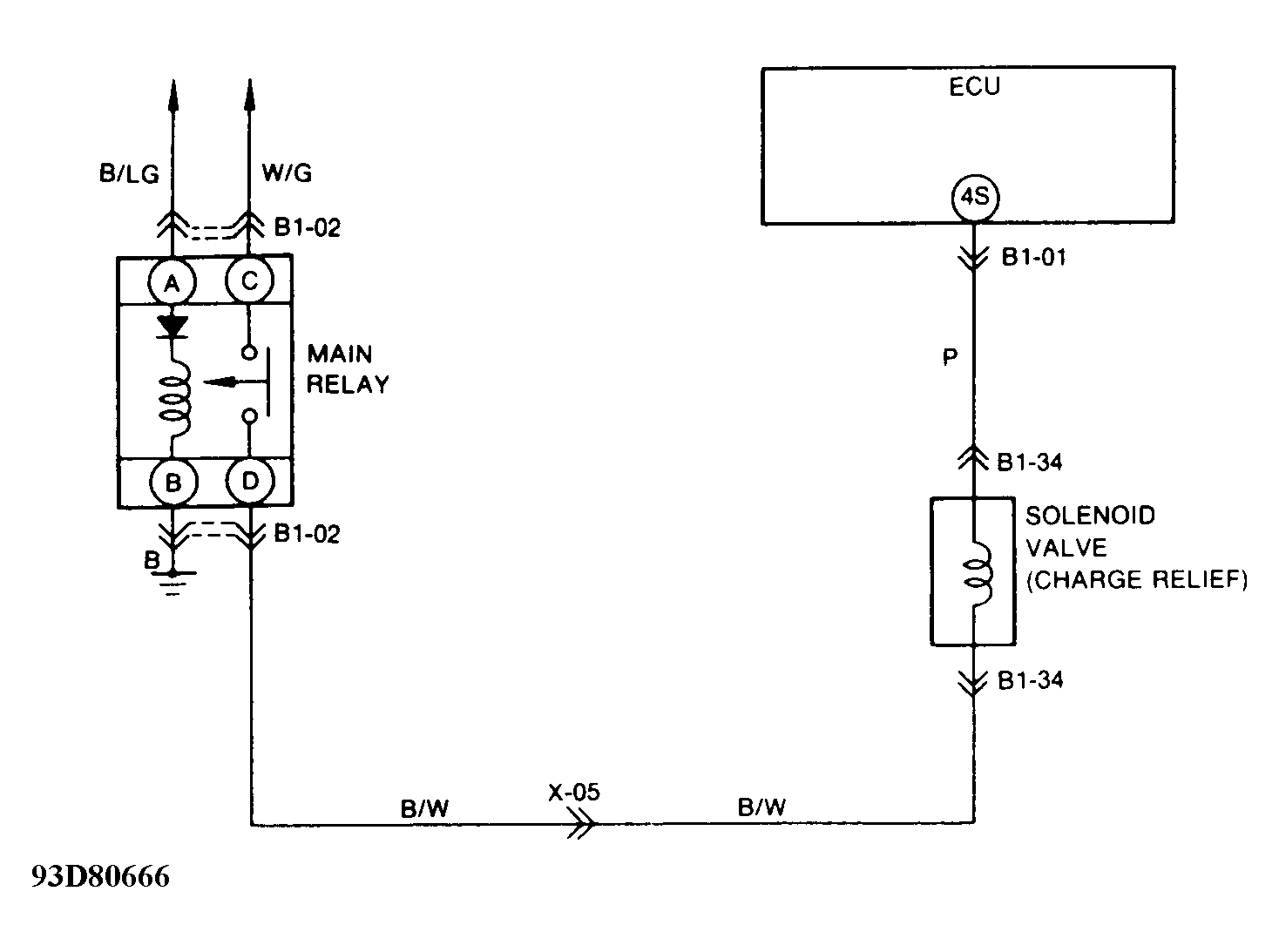

Fig 2: Trouble Code No. 46 - Schematic

Courtesy of MAZDA MOTORS CORP.
