Code 54: (Air Pump Relay)

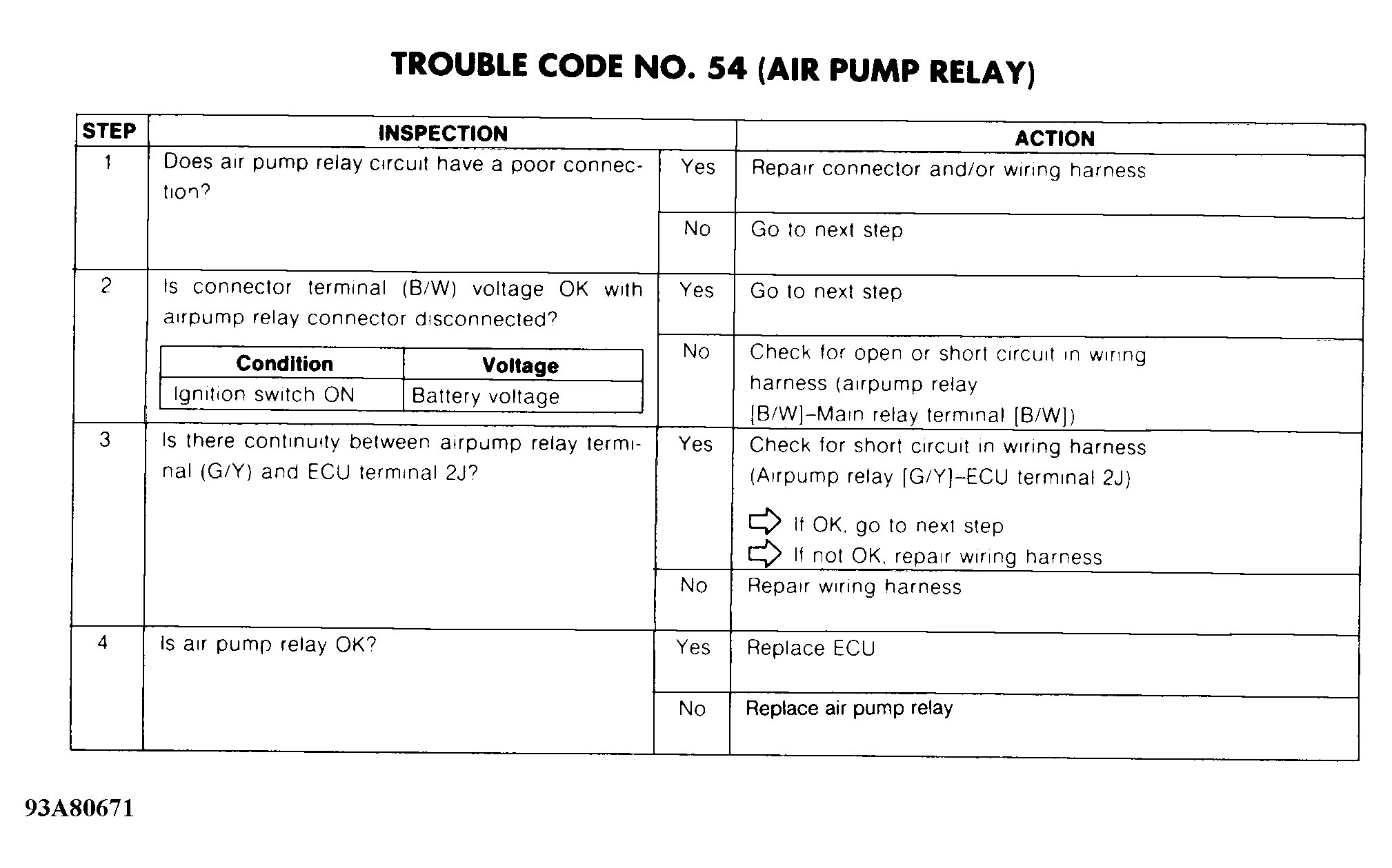

Fig 1: Trouble Code No. 54 - Diagnostic Flowchart
G93A80671Courtesy of MAZDA MOTORS CORP.

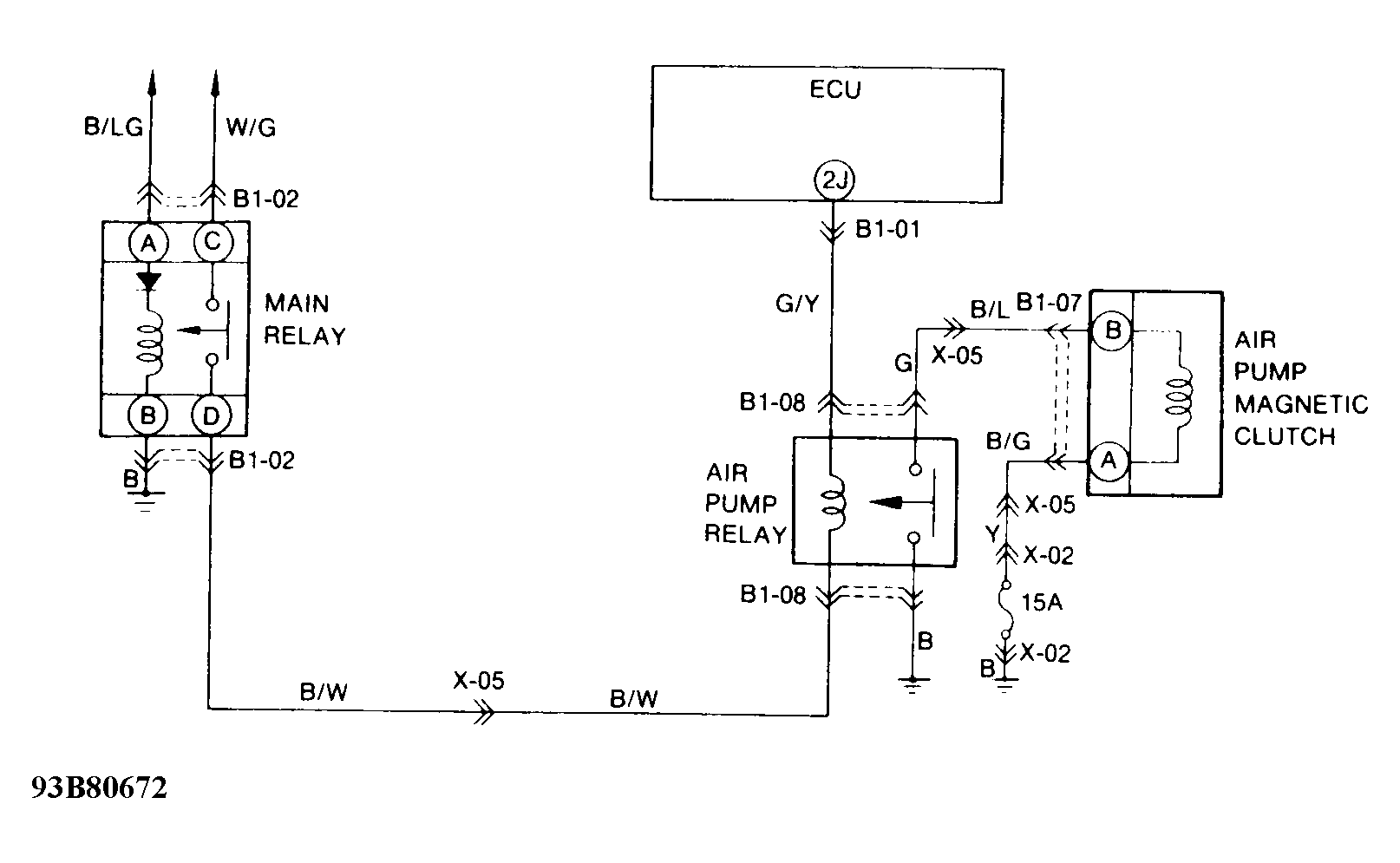

Fig 2: Trouble Code No. 54 - Schematic
G93B80672Courtesy of MAZDA MOTORS CORP.
