Code 38: (Solenoid Valve - Accelerated Warm-Up System - AWS)

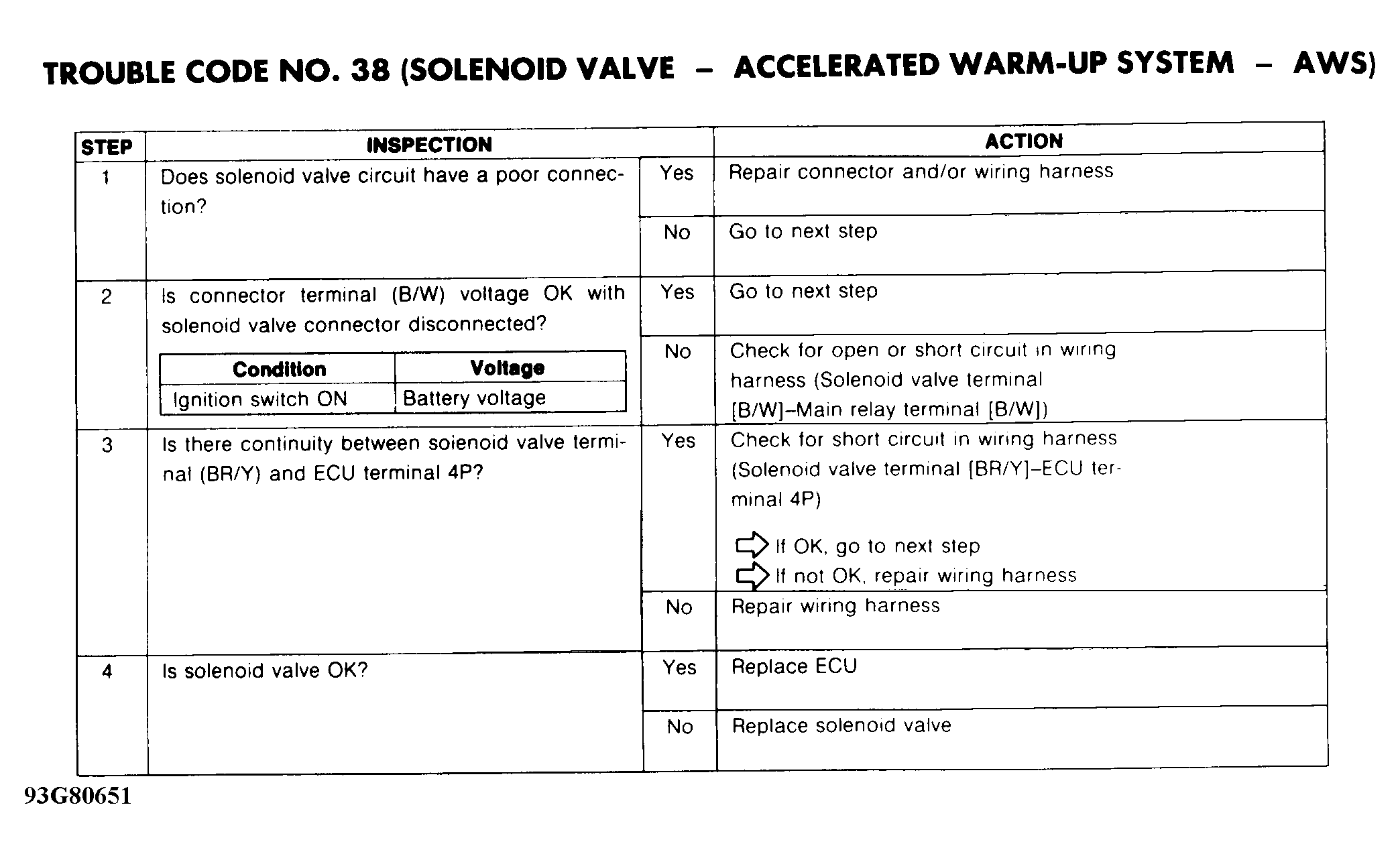

Fig 1: Trouble Code No. 38 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

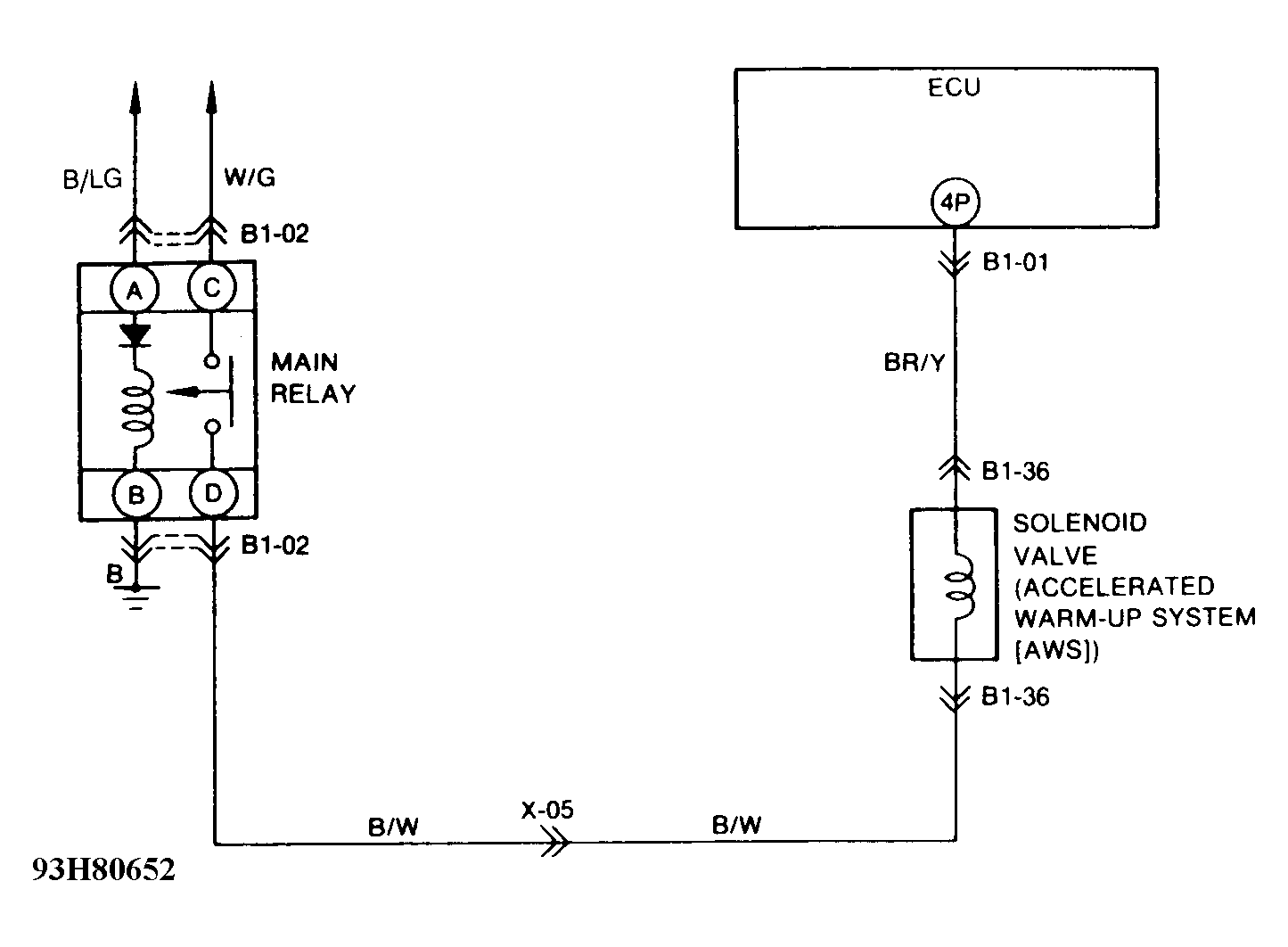

Fig 2: Trouble Code No. 38 - Schematic

Courtesy of MAZDA MOTORS CORP.
