Coolant Temperature Sensor

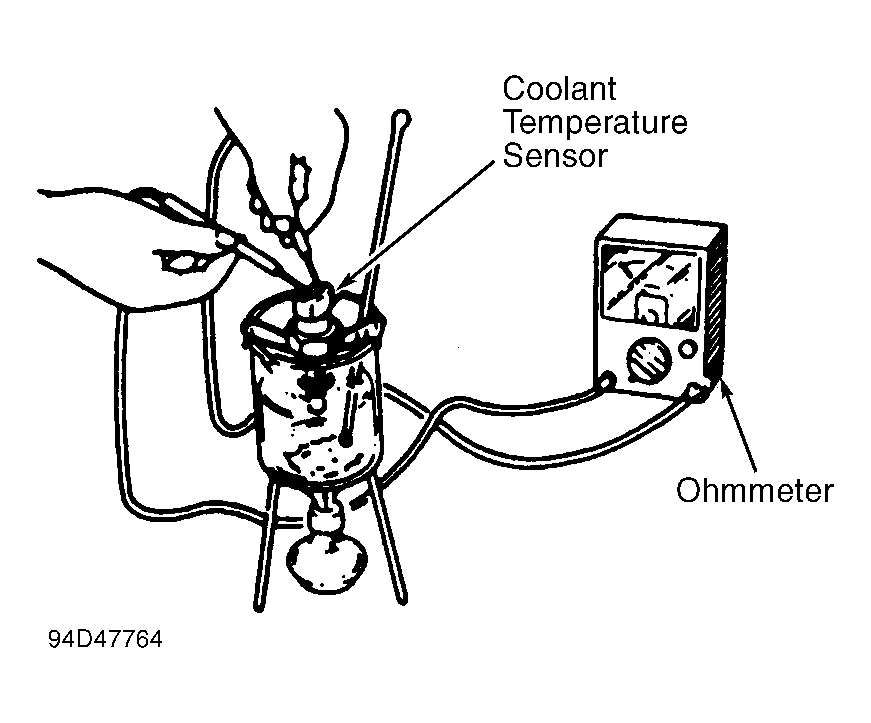

Disconnect negative battery cable. Remove coolant temperature sensor. Suspend coolant temperature sensor in a container filled with water. Place a thermometer in container. Connect ohmmeter between coolant temperature sensor connector terminals. See Fig 1 . Gradually heat water and check sensor resistance. See COOLANT TEMPERATURE SENSOR RESISTANCE SPECIFICATIONS table. If resistance is not as specified, replace coolant temperature sensor.
COOLANT TEMPERATURE SENSOR RESISTANCE SPECIFICATIONS
| Coolant Temperature | Ohms | ||
|---|---|---|---|
| 2.0L | |||
| A/T | |||
| 68°F (20°C) | 35.5-39.2k | ||
| 140°F (60°C) | 7.17-7.93k | ||
| 176°F (80°C) | 1.13-1.25k | ||
| M/T | |||
| 68°F (20°C) | 2.20-2.70k | ||
| 104°F (40°C) | 1.00-1.30k | ||
| 140°F (60°C) | 0.50-0.65k | ||
| 176°F (80°C) | 0.29-0.35k | ||
| 2.5L | |||
| 68°F (20°C) | 2.20-2.70k | ||
| 176°F (80°C) | 0.29-0.35k | ||
| 196°F (91°C) | 0.23-0.24k | ||
| 207°F (97°C) | 0.19-0.21k | ||
| 226°F (108°C) | 0.14-0.15k | ||
| 230°F (110°C) | 0.13-0.14k | ||
