Engine Controls - Tests W/Codes - 2.0L M/T
›
Trouble Code Charts
›
Code 25: (Sol Valve - Pressure Regulator Control)
Code 25: (Sol Valve - Pressure Regulator Control)

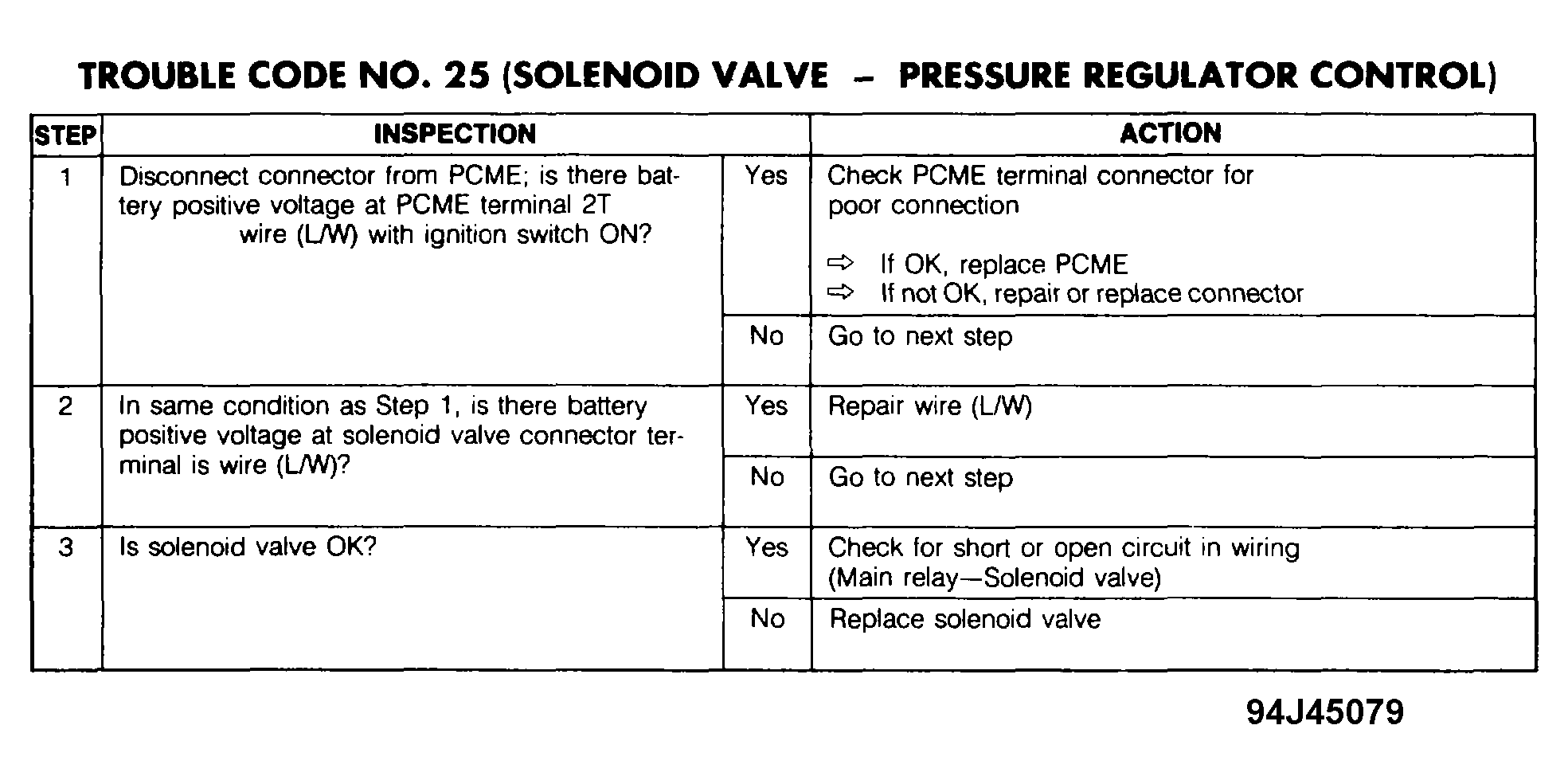

Fig 1: Trouble Code No. 25 Diagnostic Chart (Solenoid Valve - Pressure Regulator Control)
