Code 34: (Idle Air Control Valve)

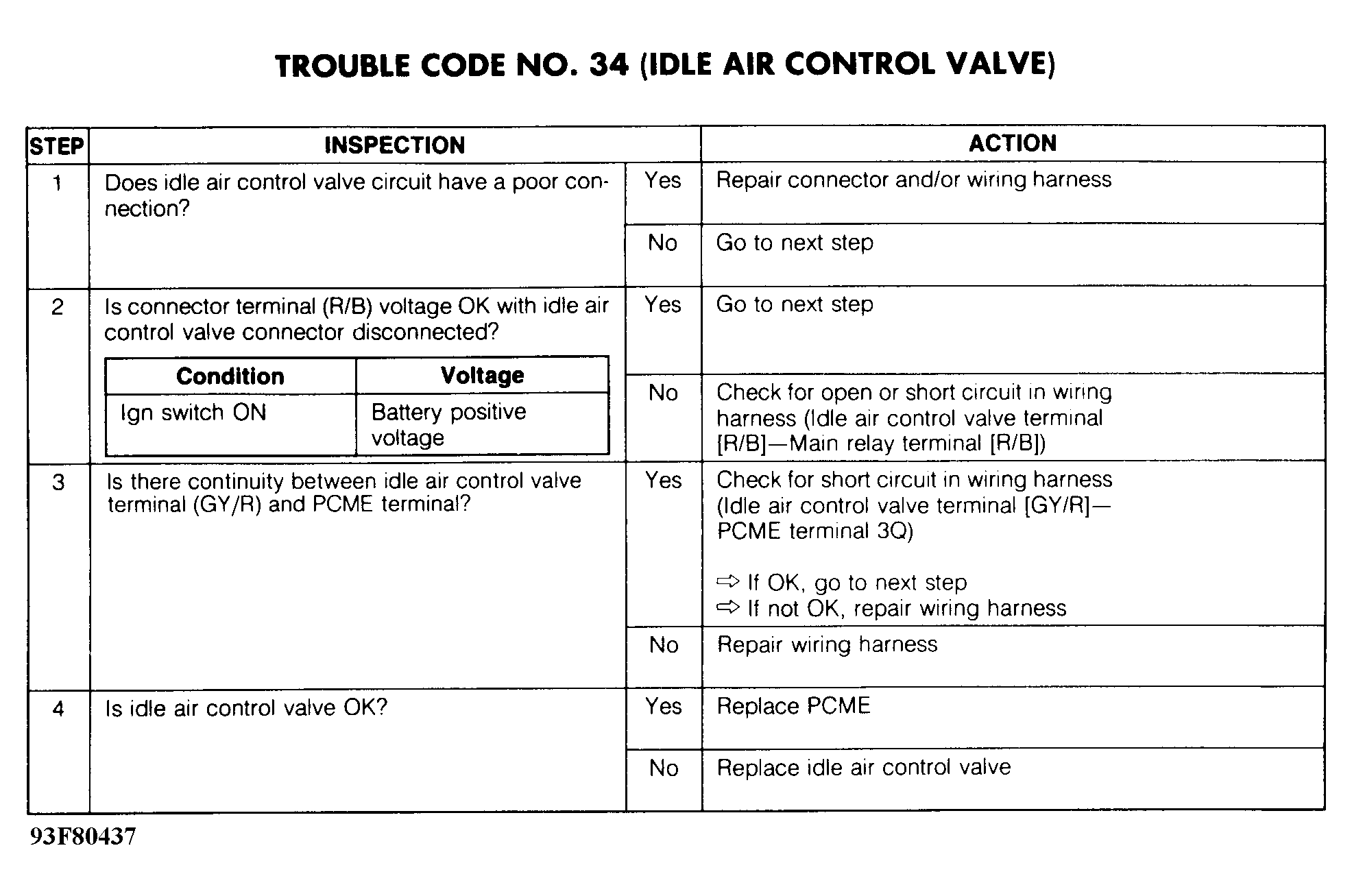

Fig 1: Trouble Code No. 34 Diagnostic Chart (Idle Air Control Valve)

G93F80437

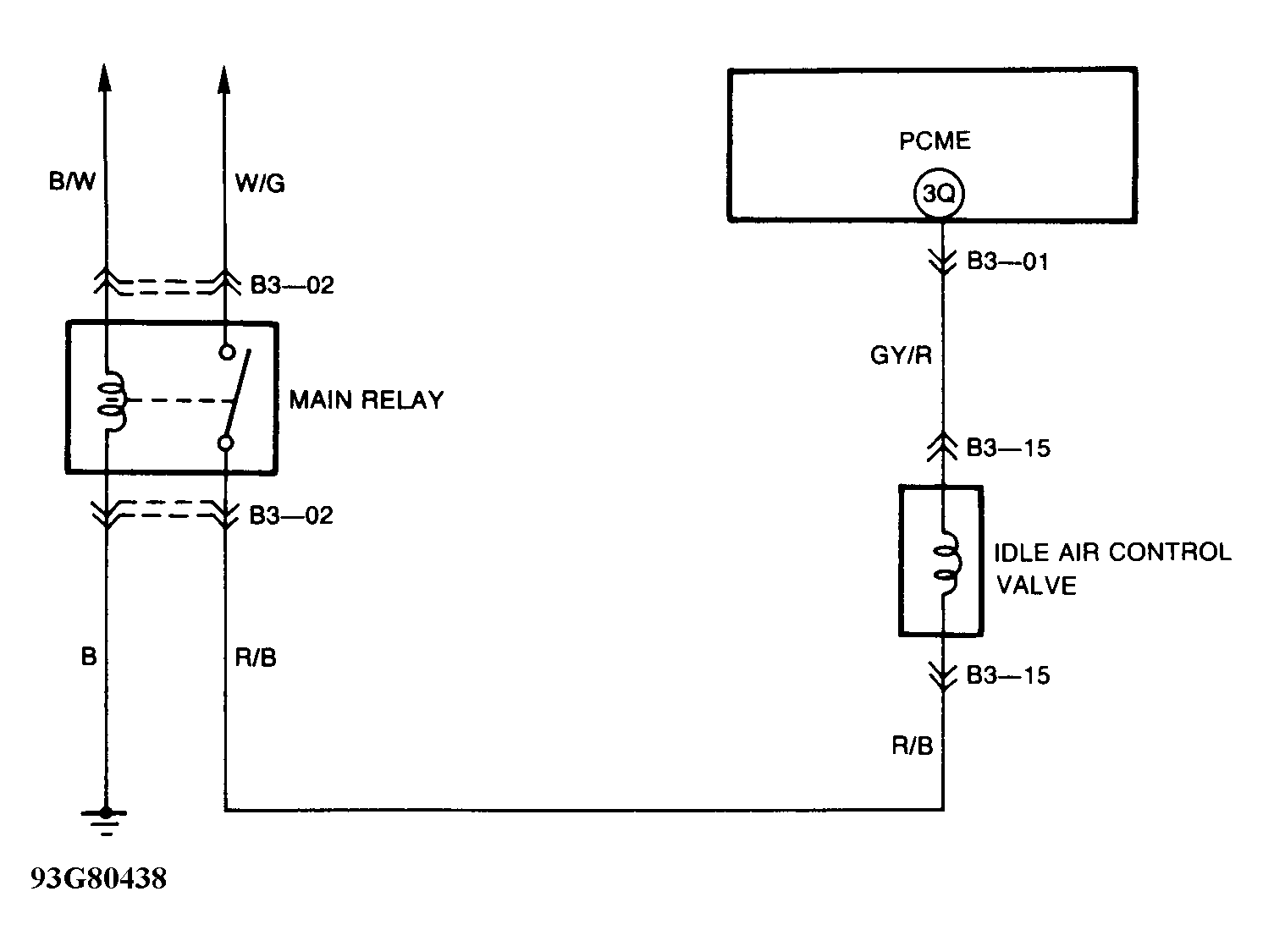

Fig 2: Trouble Code No. 34 Schematic (Idle Air Control Valve)

G93G80438
