Throttle Position (TP) Sensor: Inspection

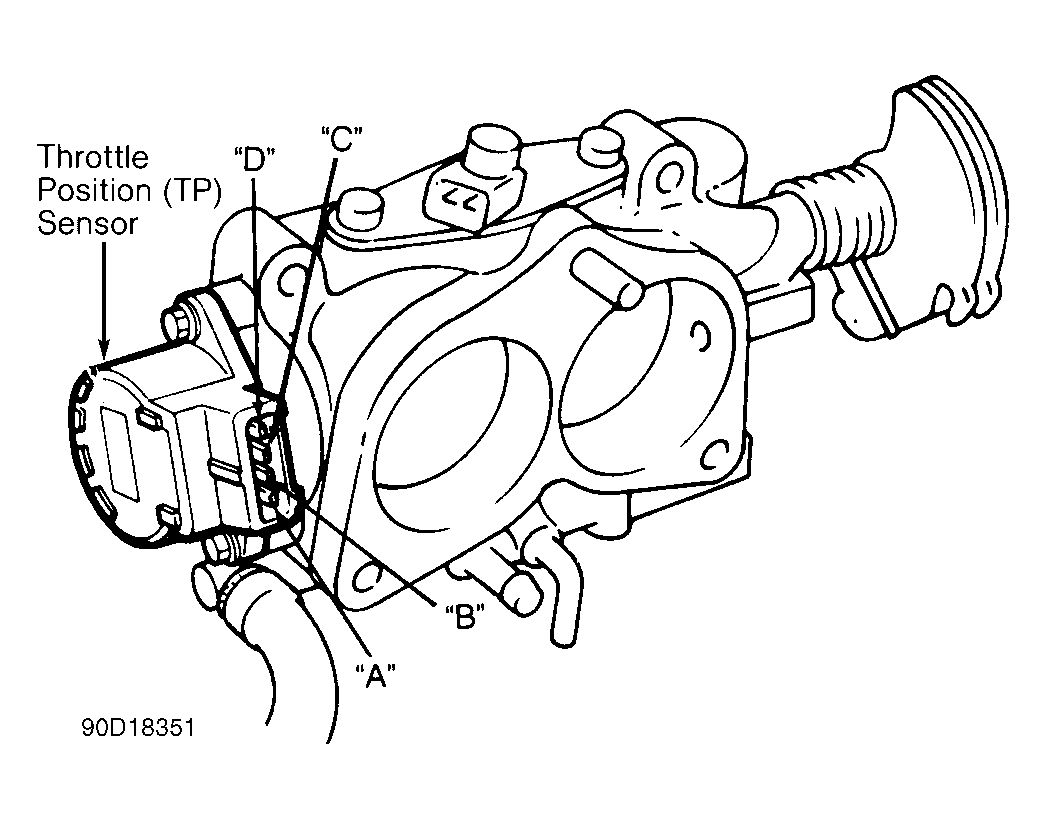

Disconnect TP sensor connector. Using an ohmmeter, measure resistance between specified terminals of TP sensor connector. See TP SENSOR RESISTANCE  table. See Figure . If resistance is not as specified, adjust TP sensor. See ADJUSTMENT procedure.
