Ignition System: Distributor

NOTE: B2300 is equipped with a distributorless ignition system.

Refer to appropriate illustration when removing, overhauling or installing distributor. See Fig 1 .

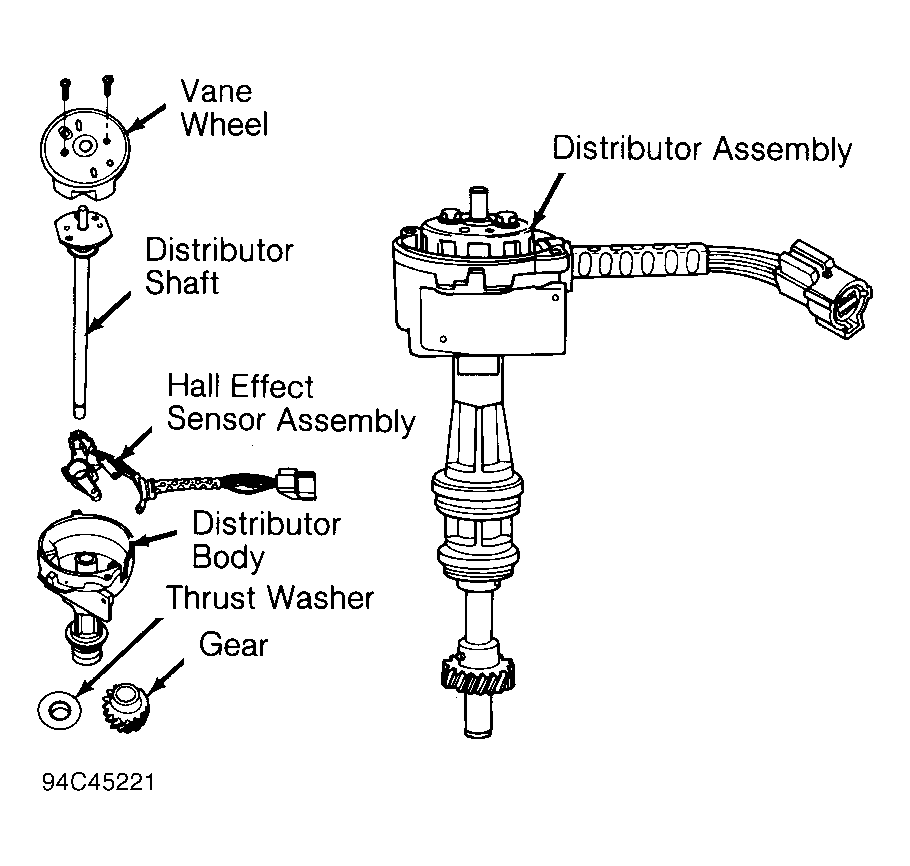

Fig 1: Exploded View Of Distributor (B3000)

Courtesy of MAZDA MOTORS CORP.
