Code 12: (Throttle Sensor)

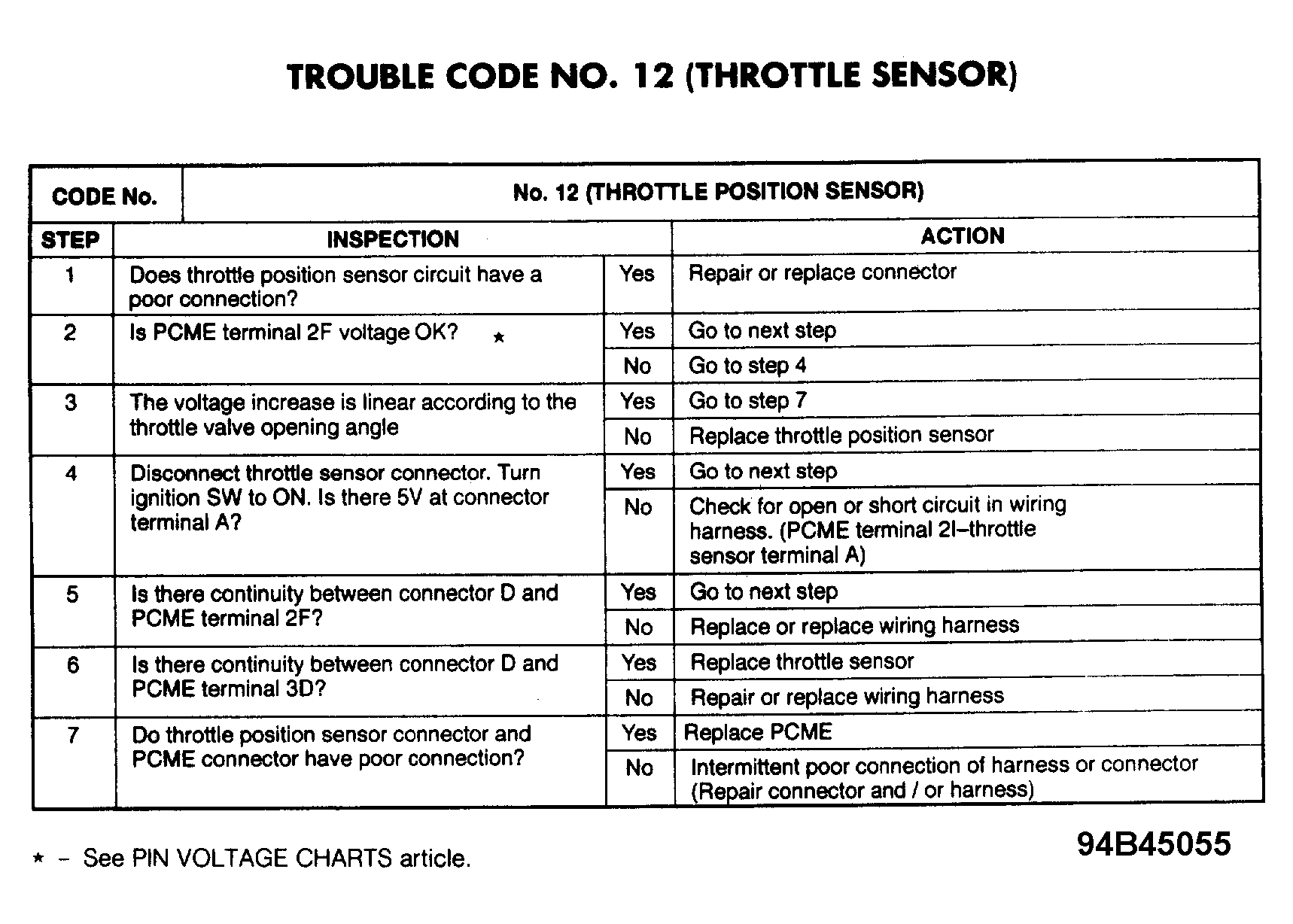

Fig 1: Trouble Code No. 12 Diagnostic Chart (Throttle Sensor )
G94B45055Courtesy of MAZDA MOTORS CORP.

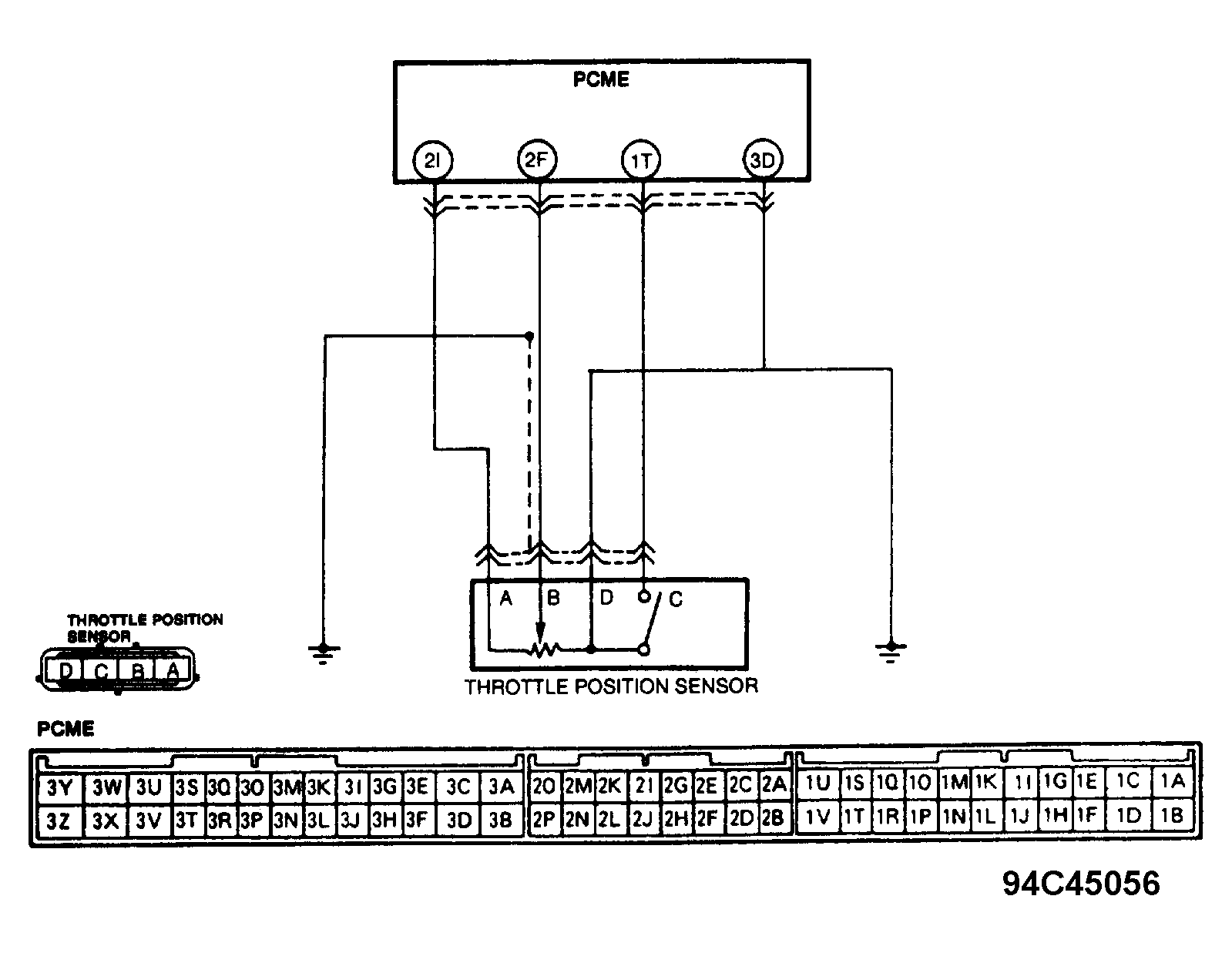

Fig 2: Trouble Code No. 12 Circuit Diagram
G94C45056Courtesy of MAZDA MOTORS CORP.
