Code 16: (EGR Position Sensor)

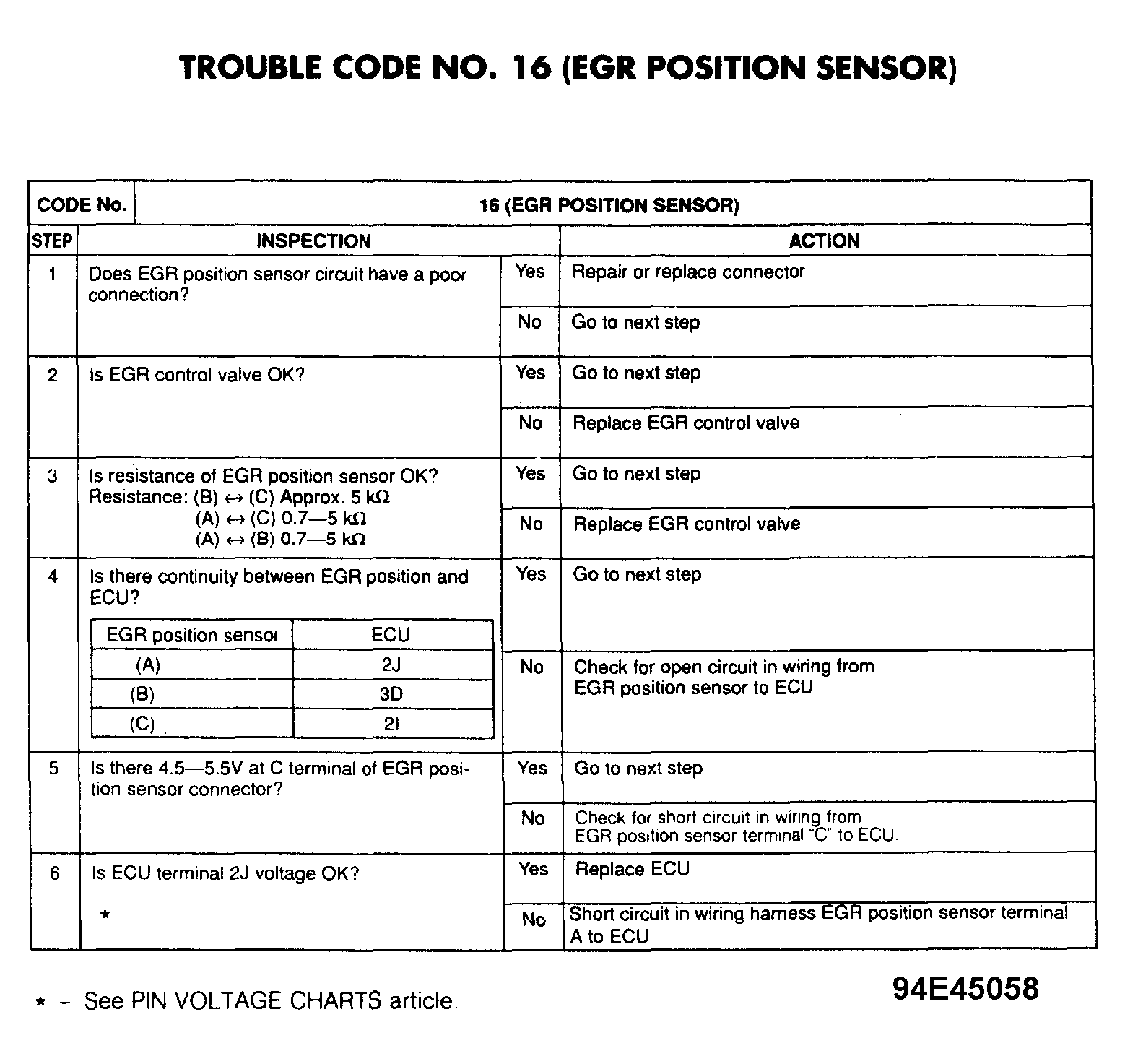

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Position Sensor )

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 16 Circuit Diagram

Courtesy of MAZDA MOTORS CORP.
