Code 3: (G Signal - Distributor)

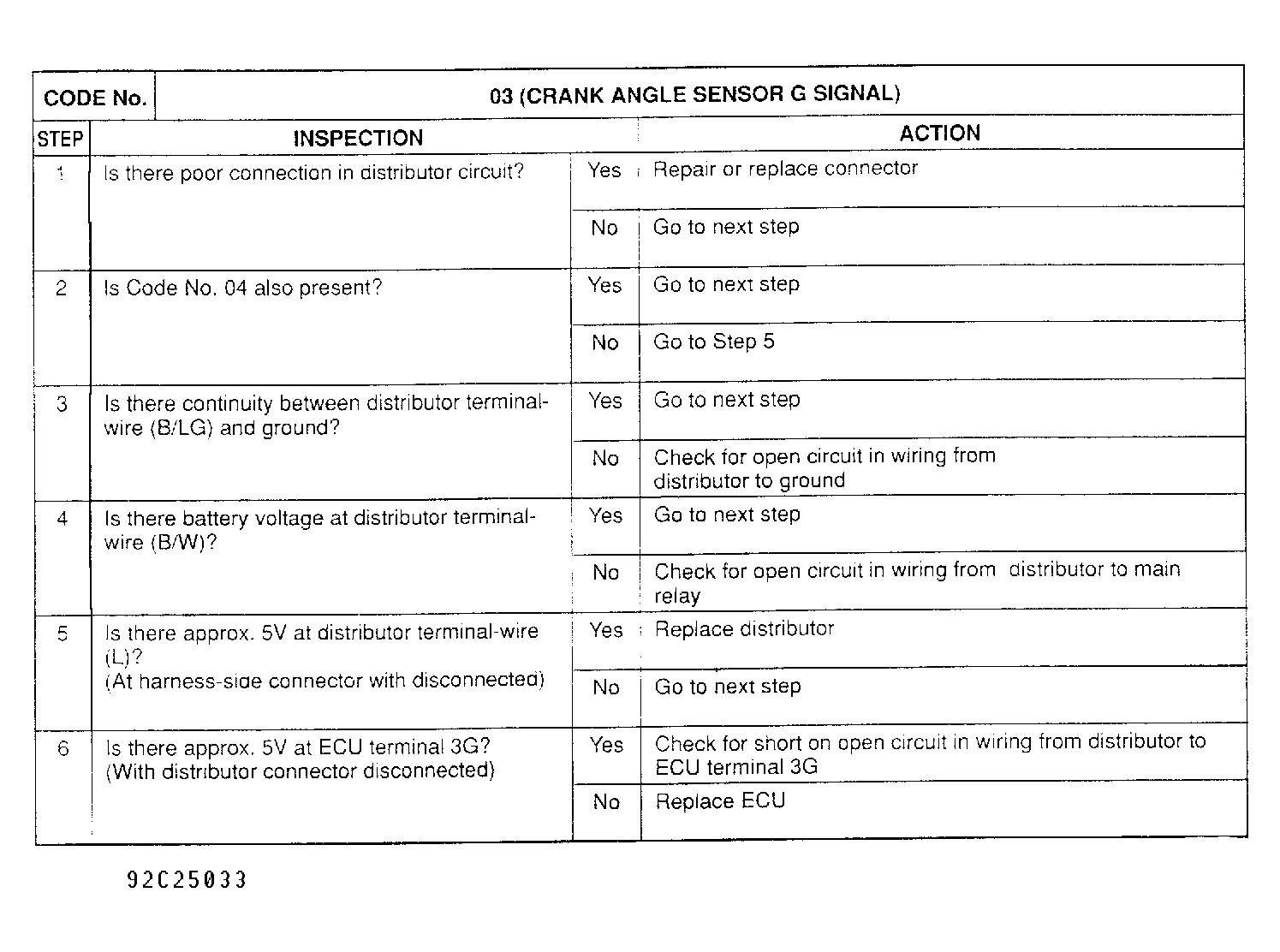

Fig 1: Trouble Code No. 3 Diagnostic Chart (G Signal - Distributor )

Courtesy of MAZDA MOTORS CORP.

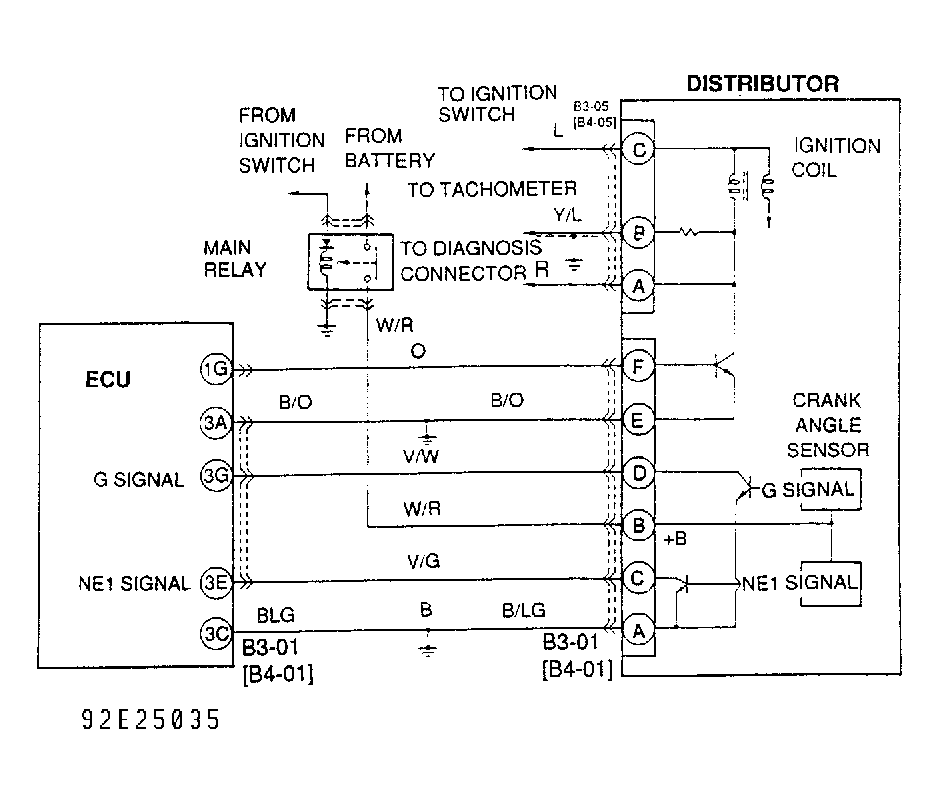

Fig 2: Trouble Code No. 3 Circuit Diagram

Courtesy of MAZDA MOTORS CORP.
