Code 9: (Coolant THERMOSENSOR)

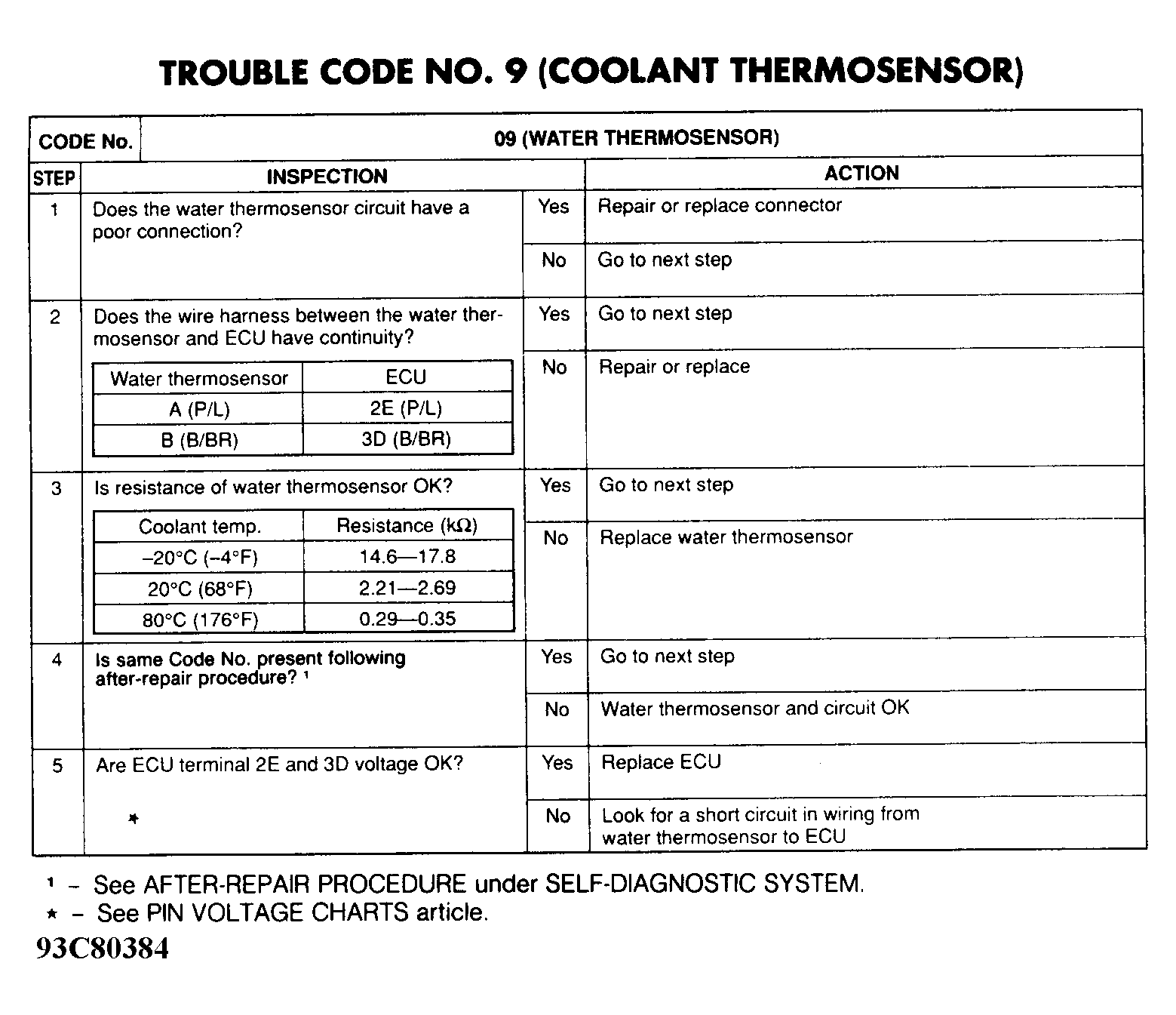

Fig 1: Trouble Code No. 9 Diagnostic Chart (Coolant Thermosensor )

Courtesy of MAZDA MOTORS CORP.

Fig 2: Fig. 16: Trouble Code No. 9 Circuit Diagram)

Courtesy of MAZDA MOTORS CORP.
