Code 10: (Intake Air THERMOSENSOR)

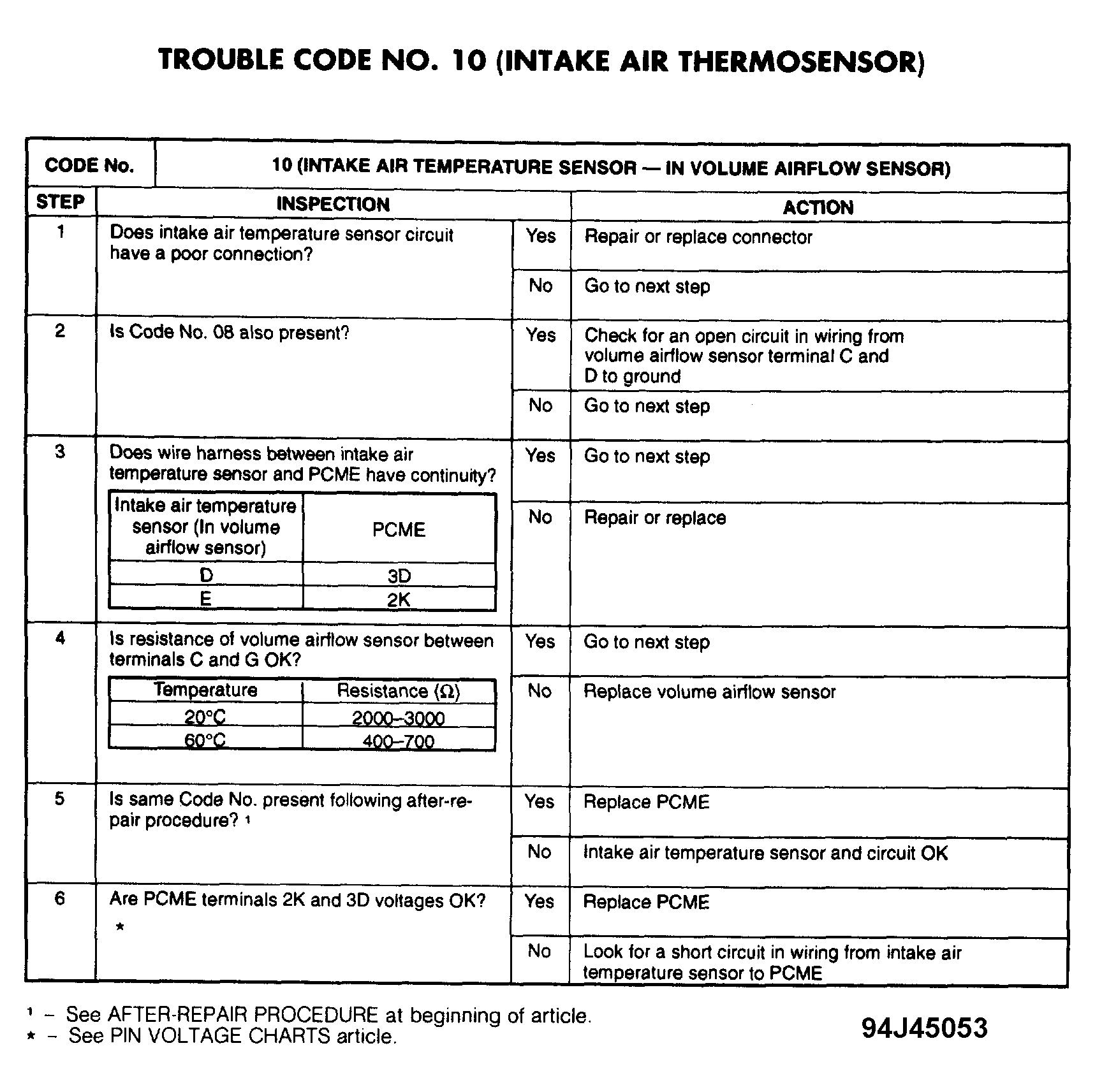

Fig 1: Trouble Code No. 10 Diagnostic Chart (Intake Air Thermosensor)

Courtesy of MAZDA MOTORS CORP.

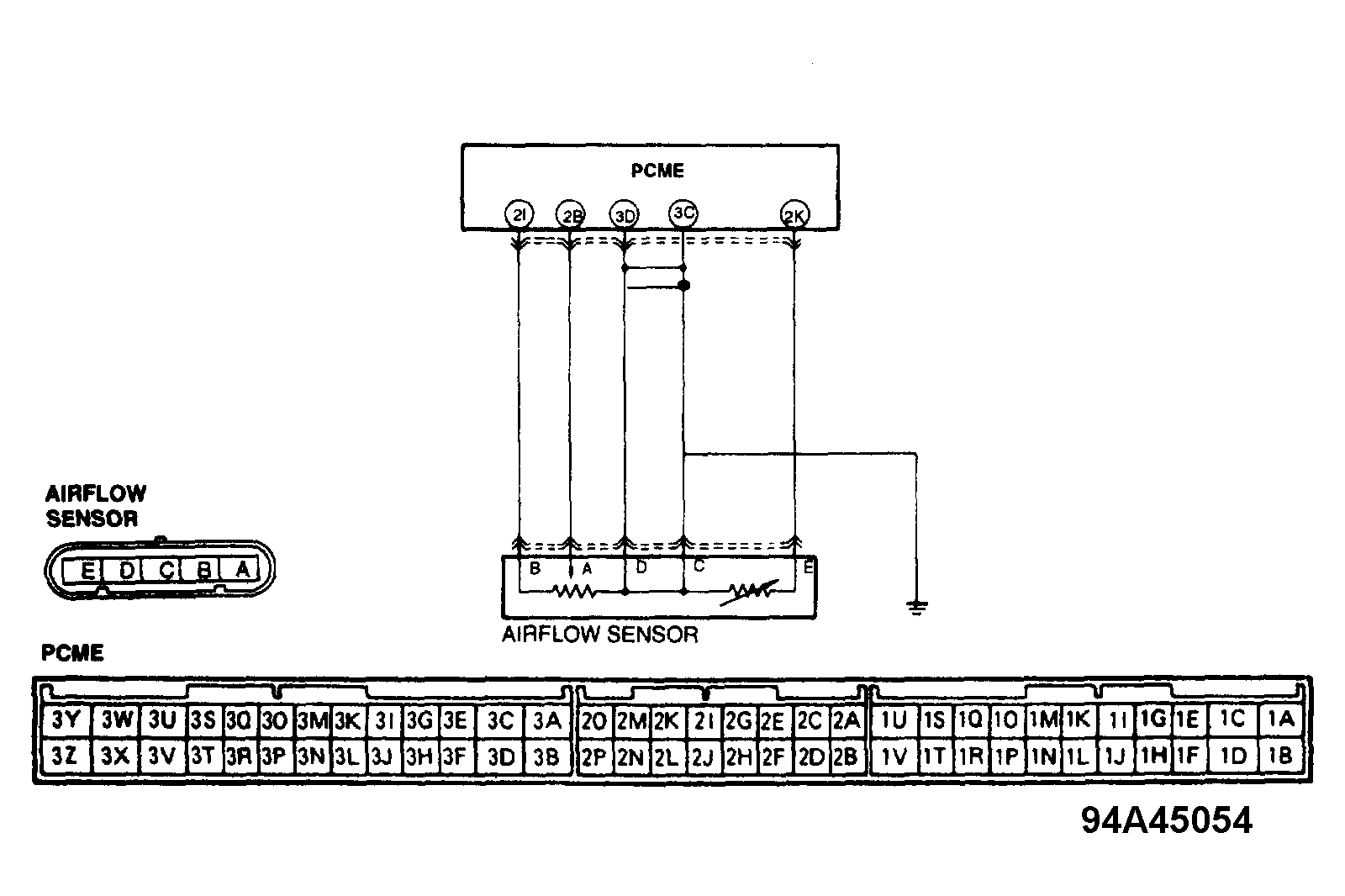

Fig 2: Trouble Code No. 10 Circuit Diagram

Courtesy of MAZDA MOTORS CORP.
