Home › Mazda › 1994 › MX-3 GS, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes - V6 › Trouble Code Charts › Code 8: (Airflow Meter)

Code 8: (Airflow Meter)

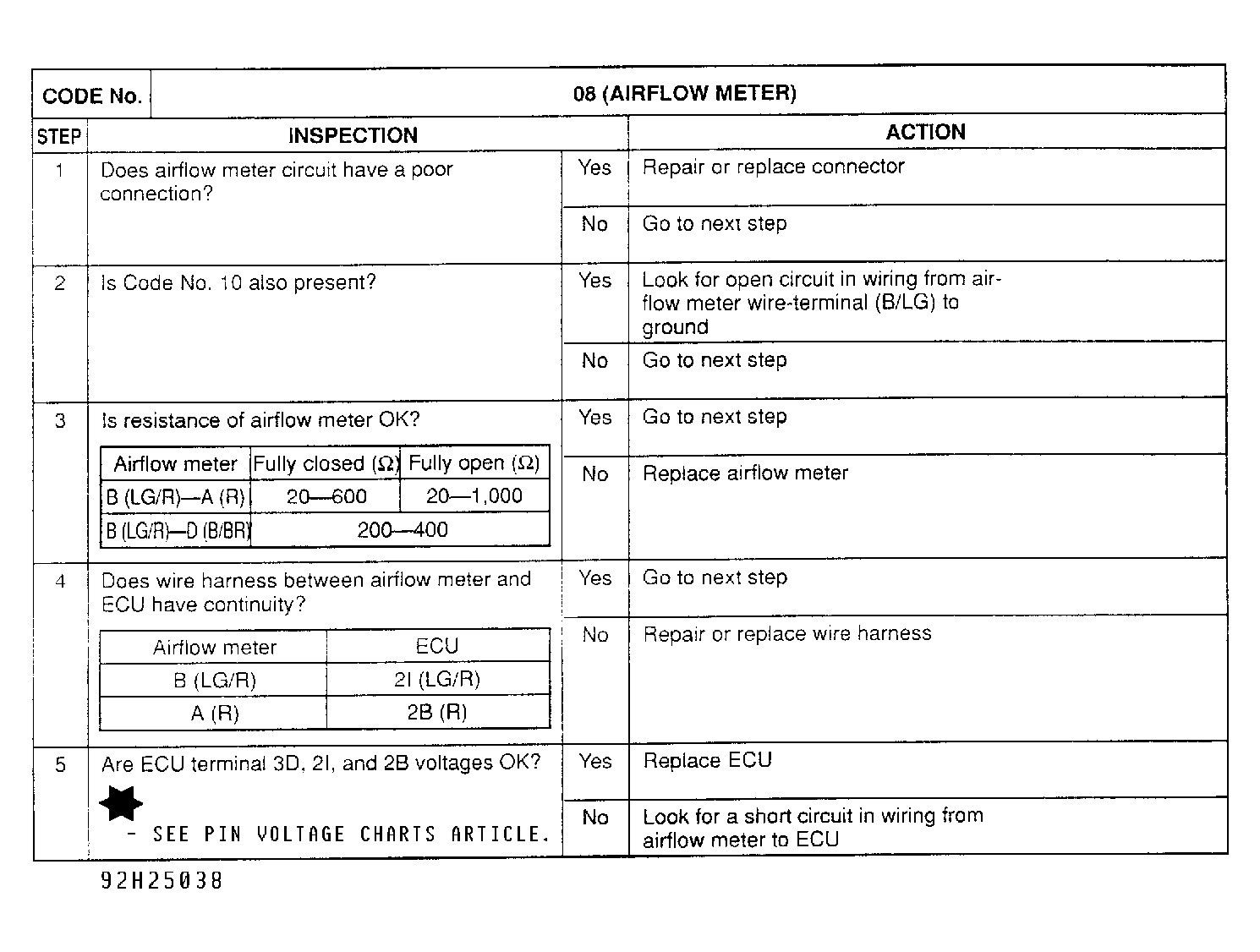

Fig 1: Trouble Code No. 8 Diagnostic Chart (Airflow Meter)
G92H25038Courtesy of MAZDA MOTORS CORP.

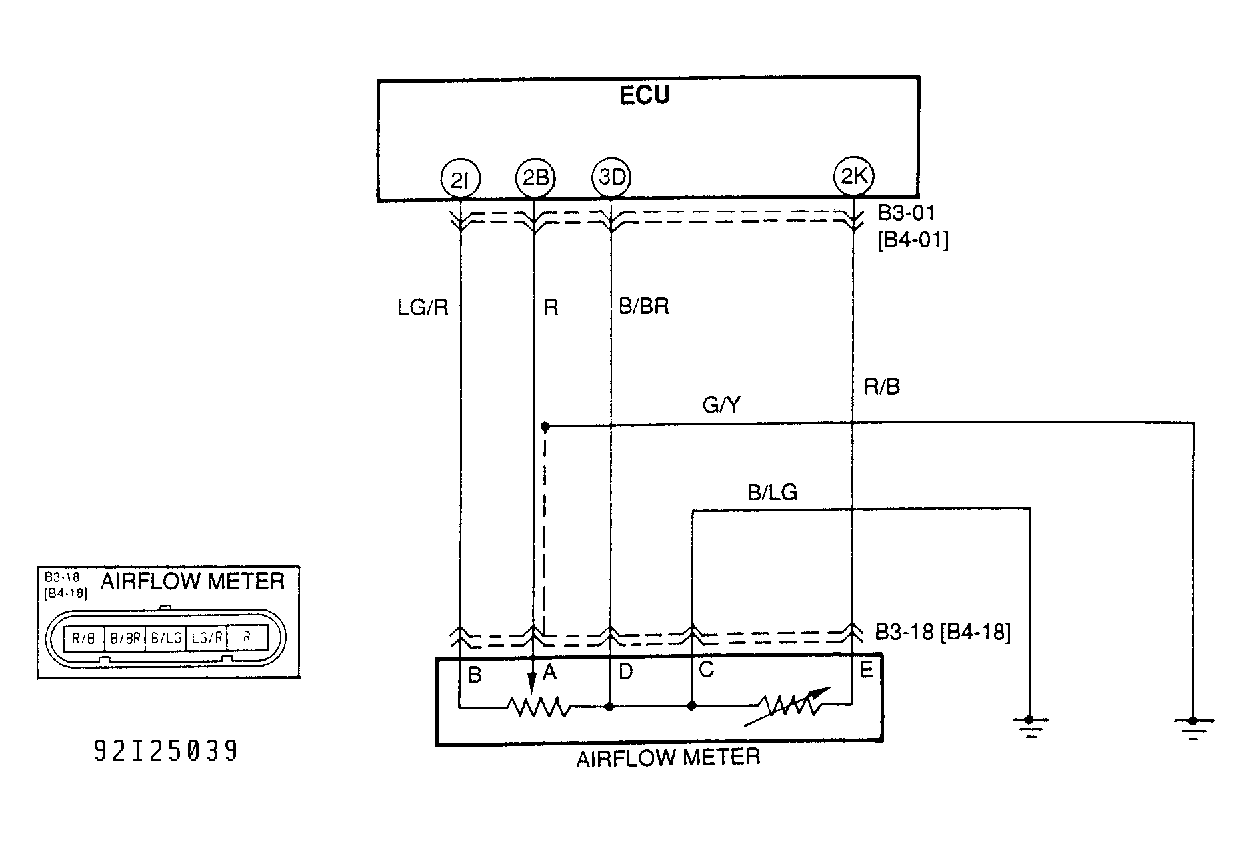

Fig 2: Trouble Code No. 8 Circuit Diagram
G92I25039Courtesy of MAZDA MOTORS CORP.
