Code 10: (Intake Air THERMOSENSOR)

AIRFLOW METER WIRE COLORS

Terminal Wire Color
"C" BLK/BLU
"D" RED/BLK

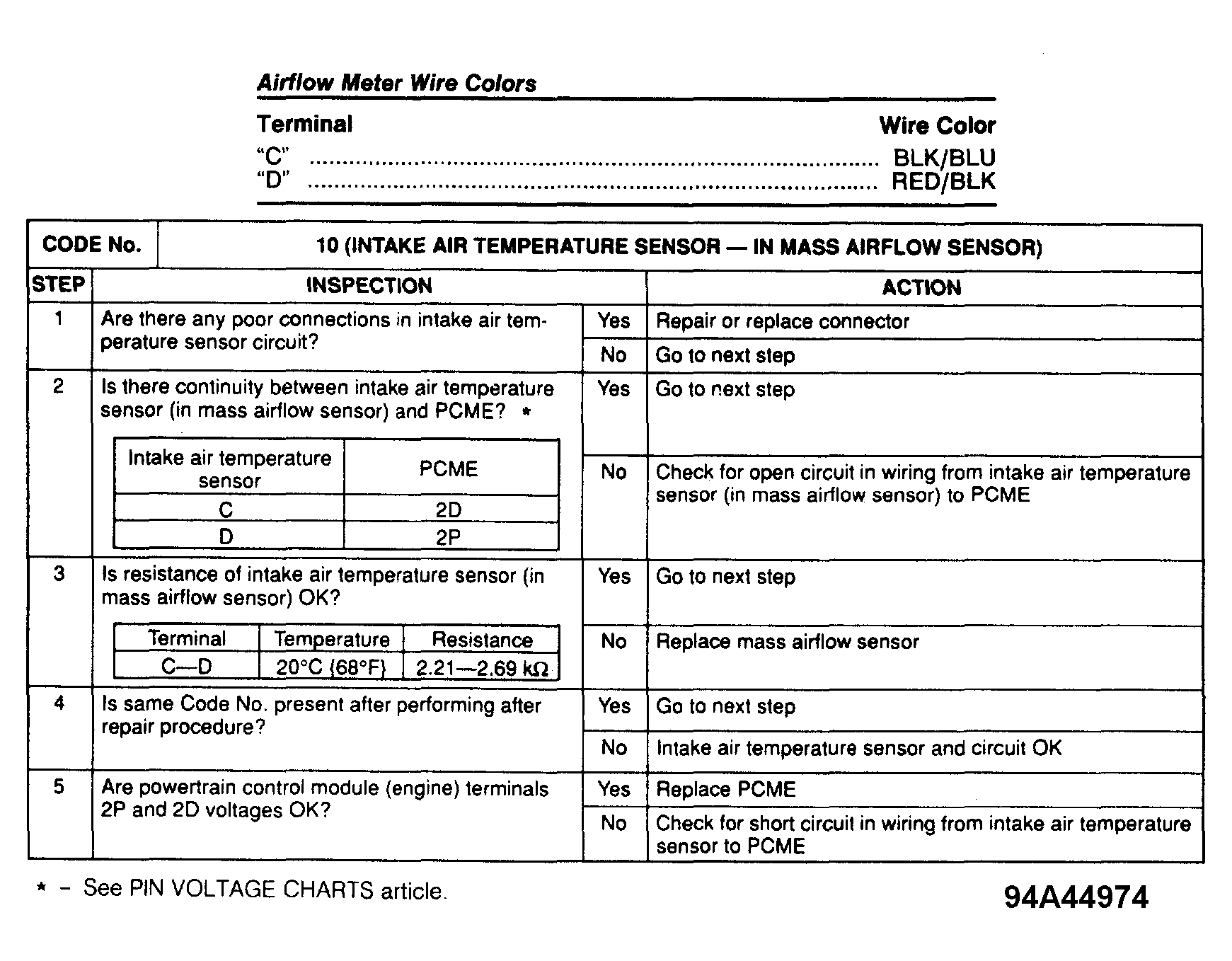

Fig 1: Trouble Code No. 10 Diag. Chart (Intake Air Thermosensor)
G94A44974Courtesy of MAZDA MOTORS CORP.
