Code 12: (Throttle Sensor)

THROTTLE POSITION SENSOR WIRE COLORS

Terminal Wire Color
"A" BLK/BLU
"C" RED/BLK
"D" LT. GRN/WHT

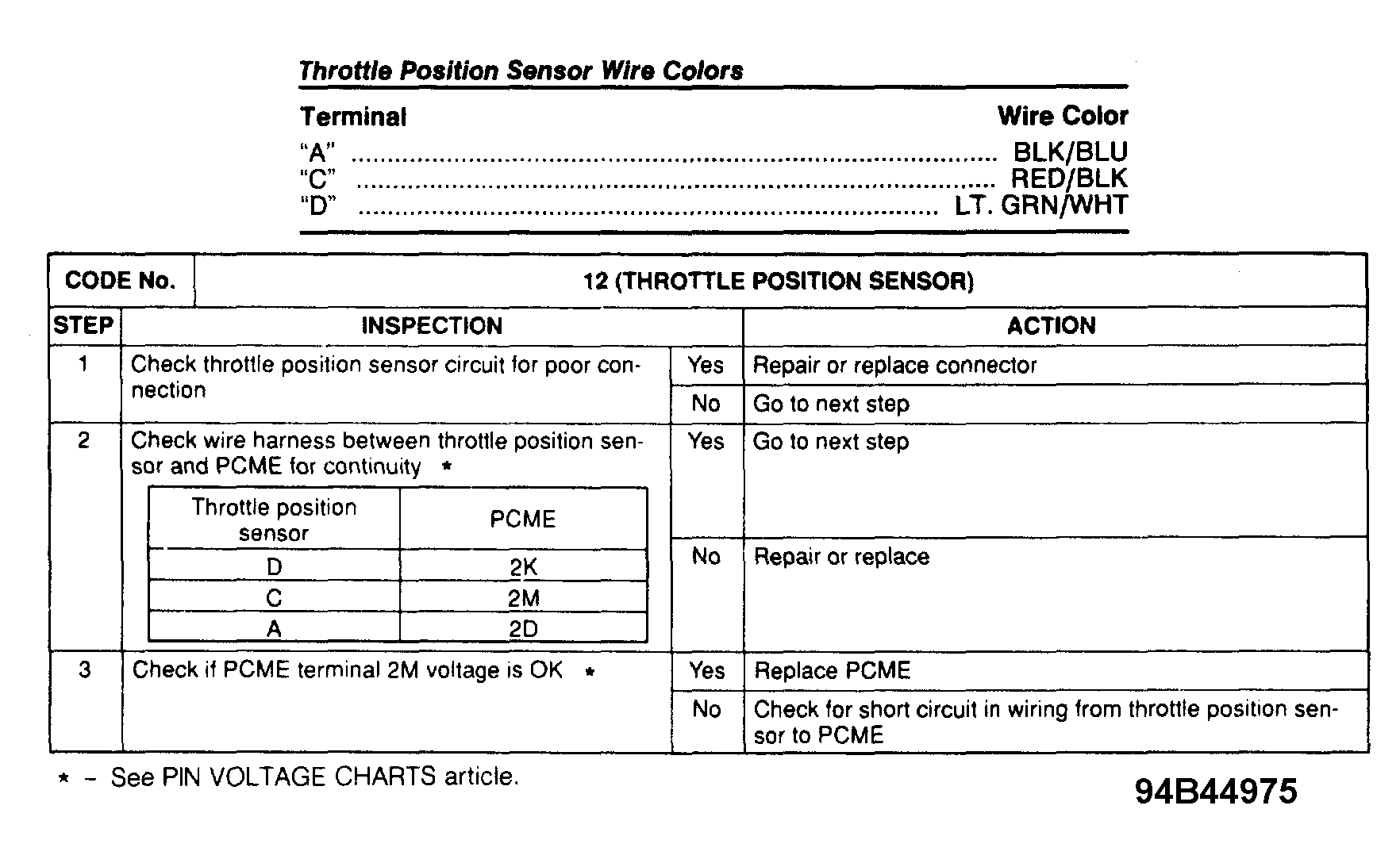

Fig 1: Trouble Code No. 12 Diagnostic Chart (Throttle Sensor)
G94B44975Courtesy of MAZDA MOTORS CORP.
