Code 28: (EGR Vacuum Solenoid Valve)
Code 28: (EGR Vacuum Solenoid Valve)
EGR VACUUM SOLENOID VALVE WIRE COLORS
Terminal
Wire Color
"A"
WHT/RED
"B"
YEL/RED

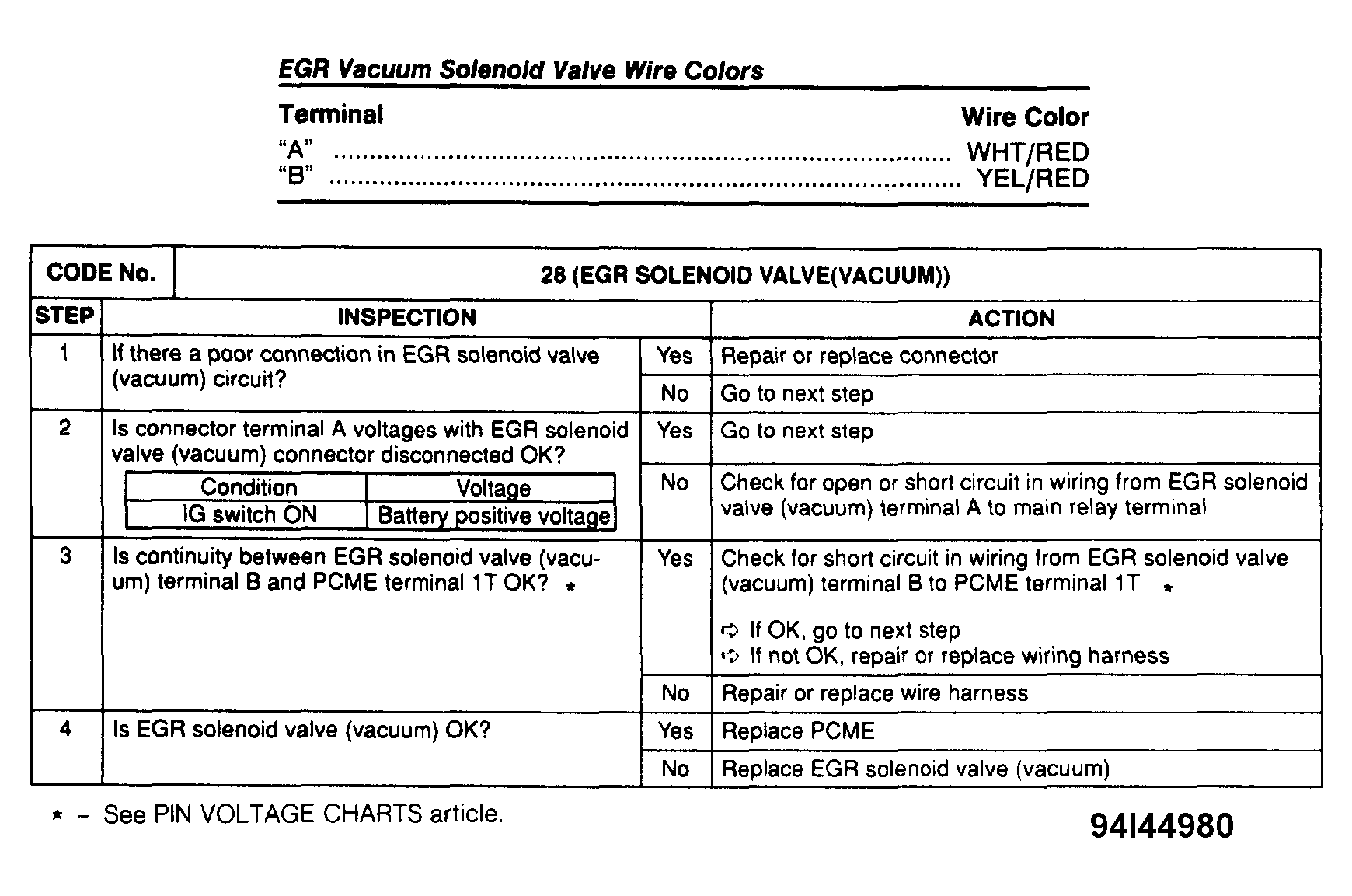

Fig 1: Trouble Code No. 28 (EGR Vacuum Solenoid Valve)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
