Trouble Code Identification: Notes

NOTE: This article may refer to the on-board computer as either Electronic Control Module (ECM) or Powertrain Control Module-Engine (PCME).

NOTE: See PIN VOLTAGE CHARTS article in the ENGINE PERFORMANCE section to identify ECU connector terminals.

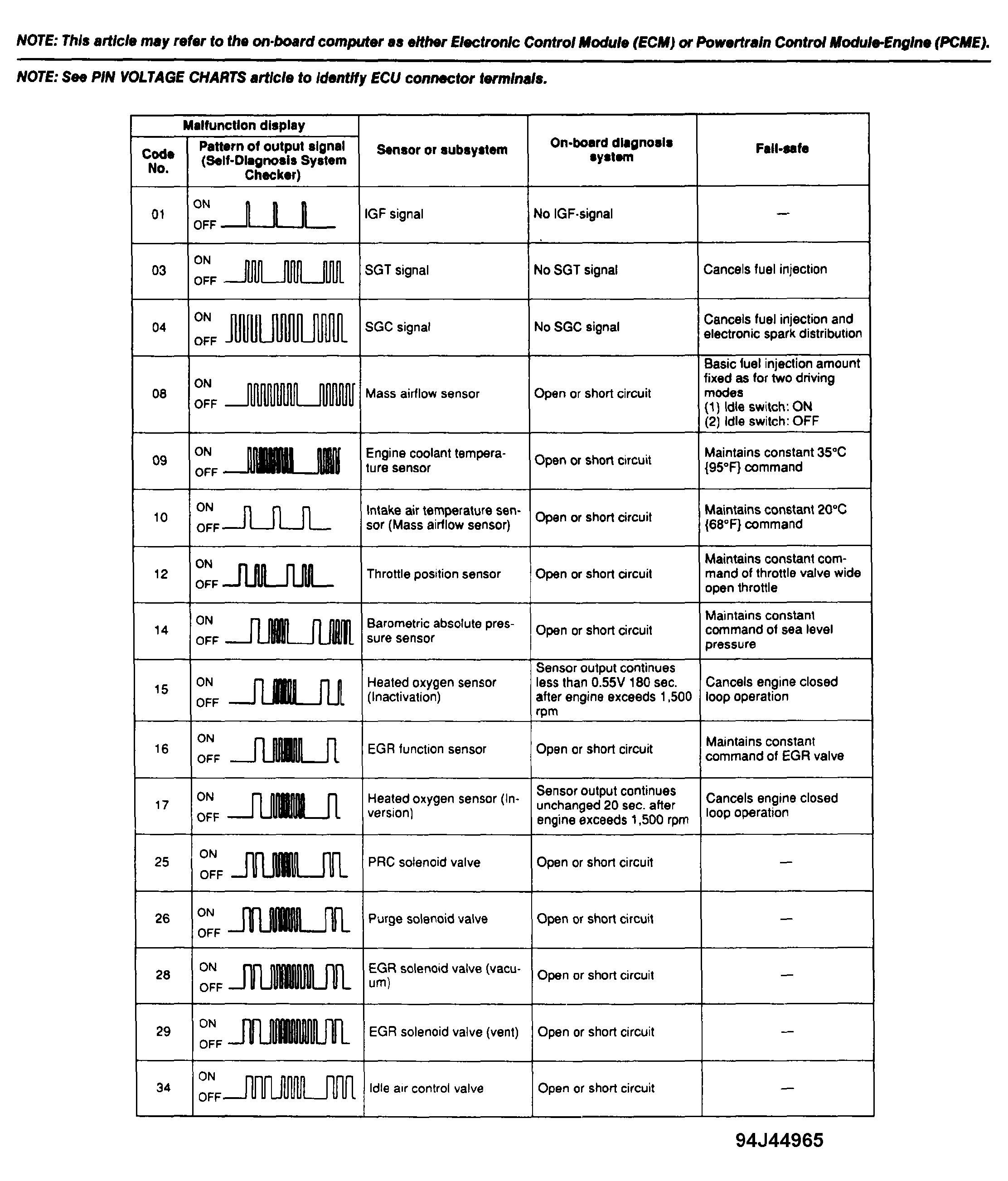

Fig 1: Trouble Code Identification Table

Courtesy of MAZDA MOTORS CORP.
