Code 2: (Crankshaft Position Sensor - Ne Signal)

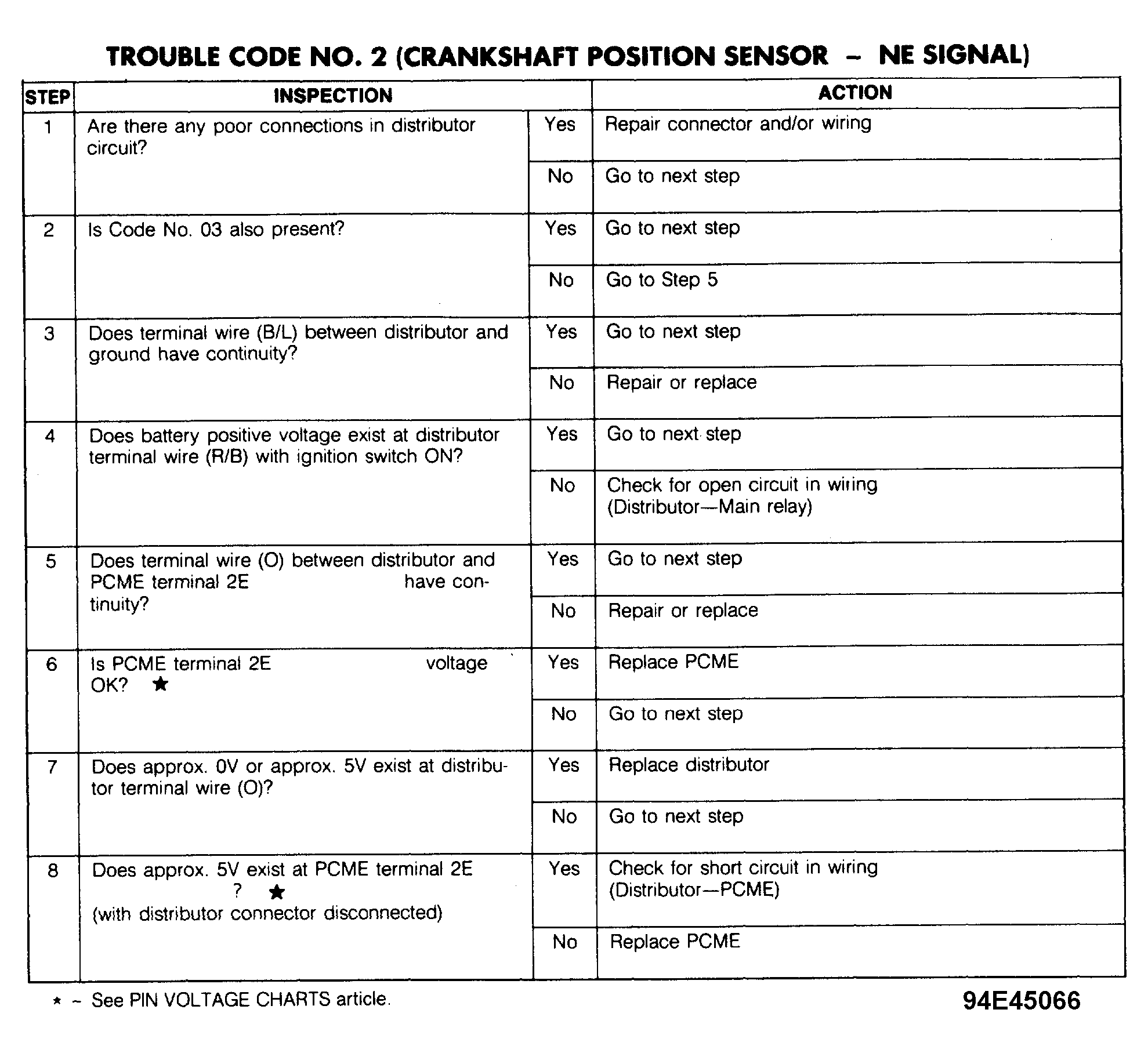

Fig 1: Trouble Code No. 2 Diagnostic Chart (Crankshaft Position Sensor - NE Signal)

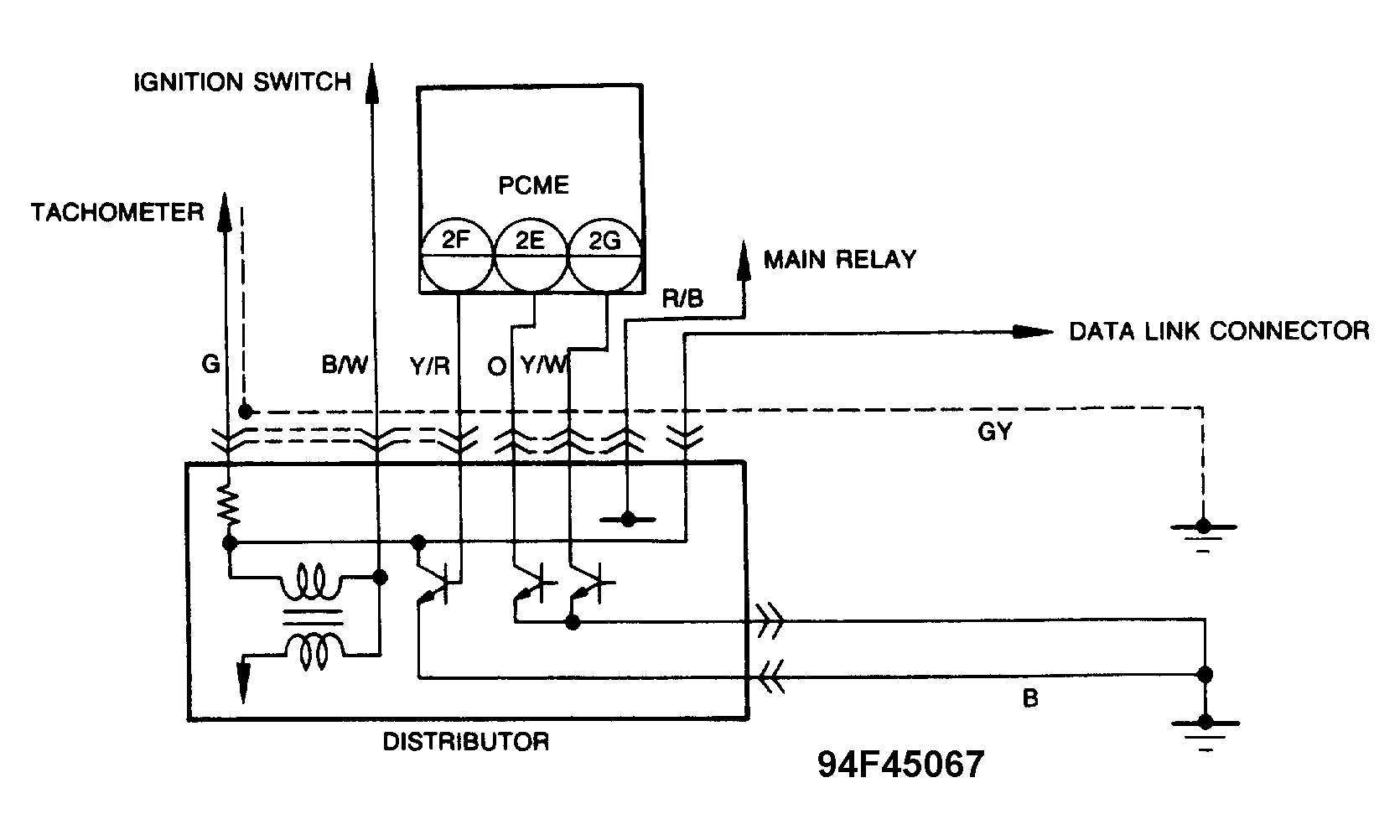

Fig 2: Trouble Code No. 2 Schematic

Courtesy of MAZDA MOTORS CORP.
