Code 8: (Airflow Sensor)
Code 8: (Airflow Sensor)

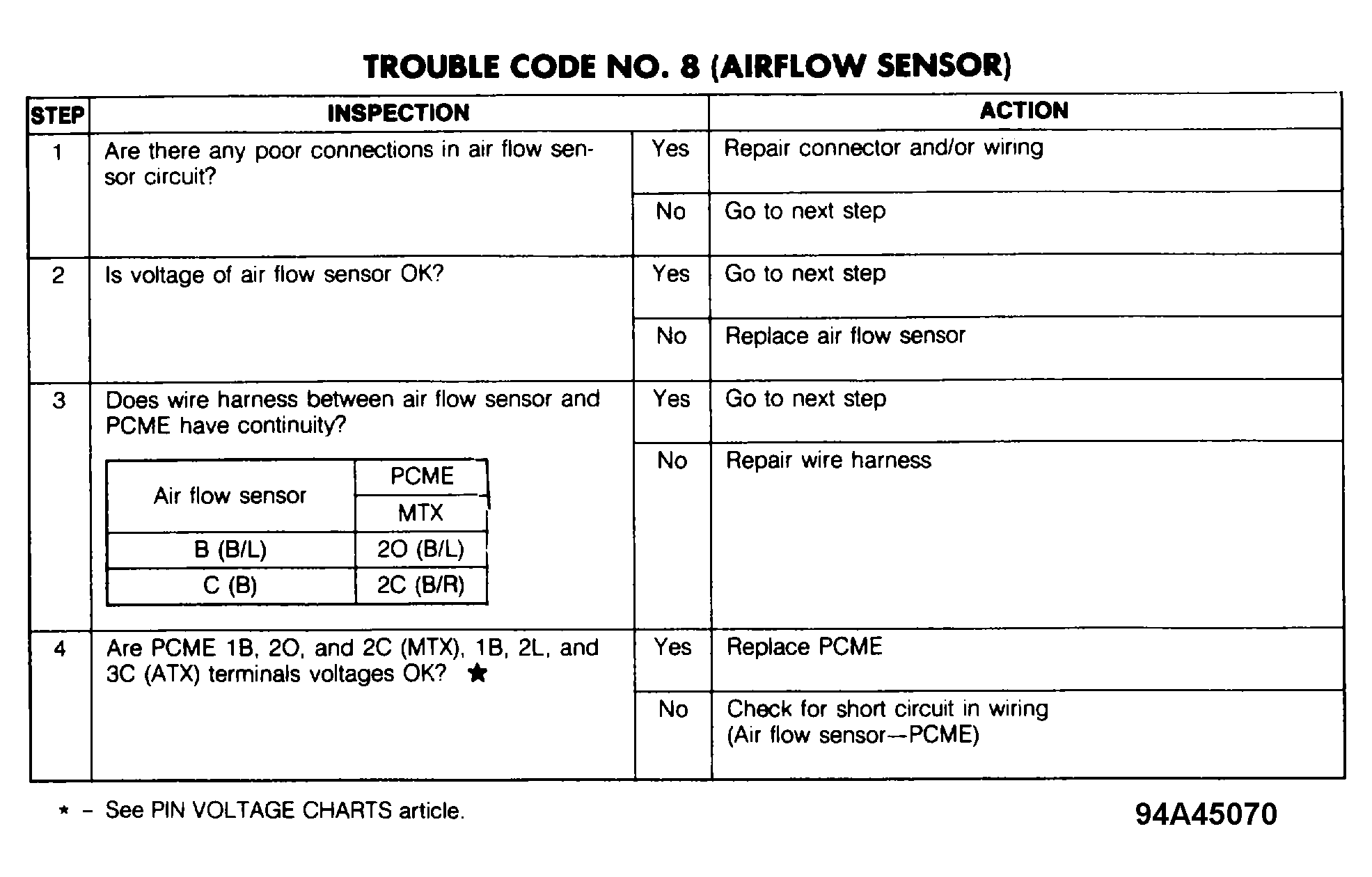

Fig 1: Trouble Code No. 8 Diagnostic Chart (Airflow Sensor)

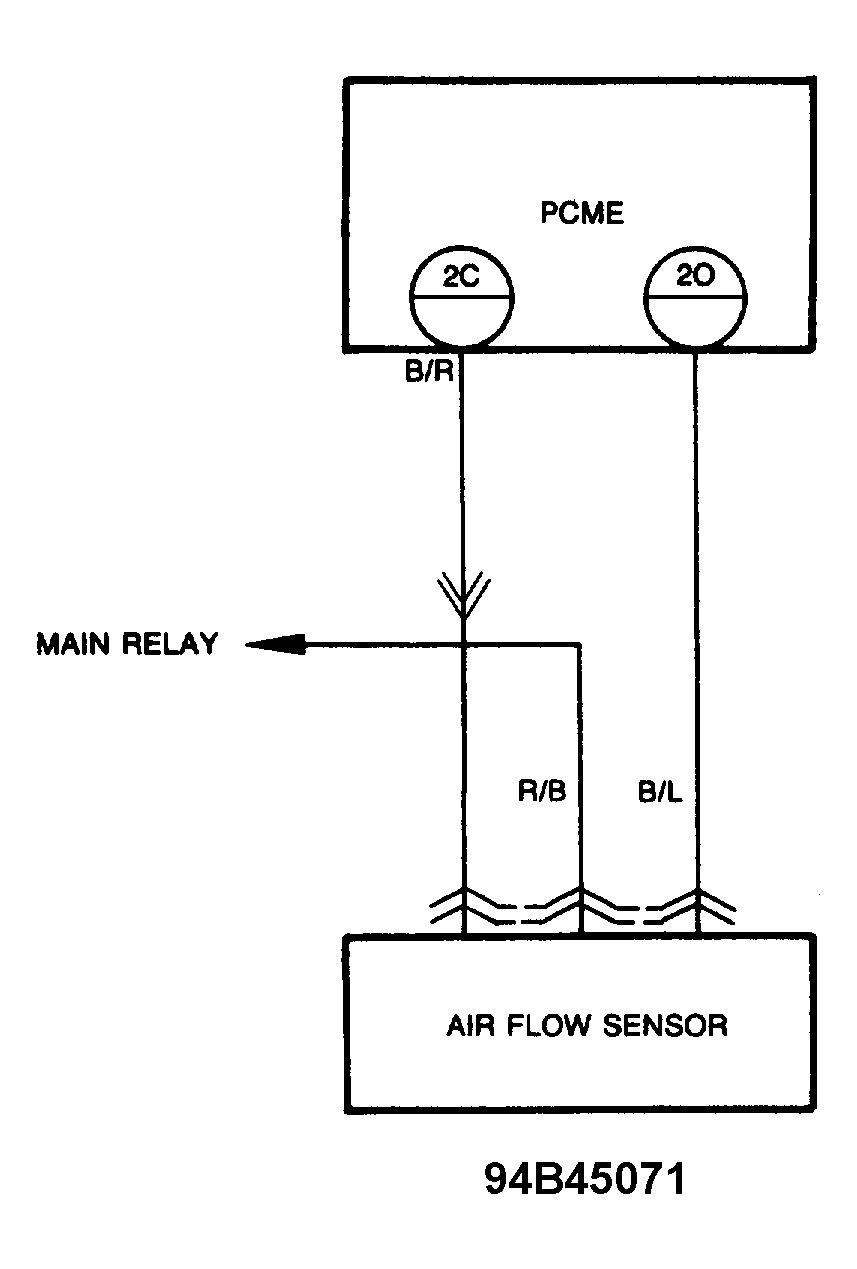

Fig 2: Trouble Code No. 8 Schematic (Airflow Sensor)
