Starter - Direct Drive: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. See illustration for exploded view of starter. See Fig 1 .

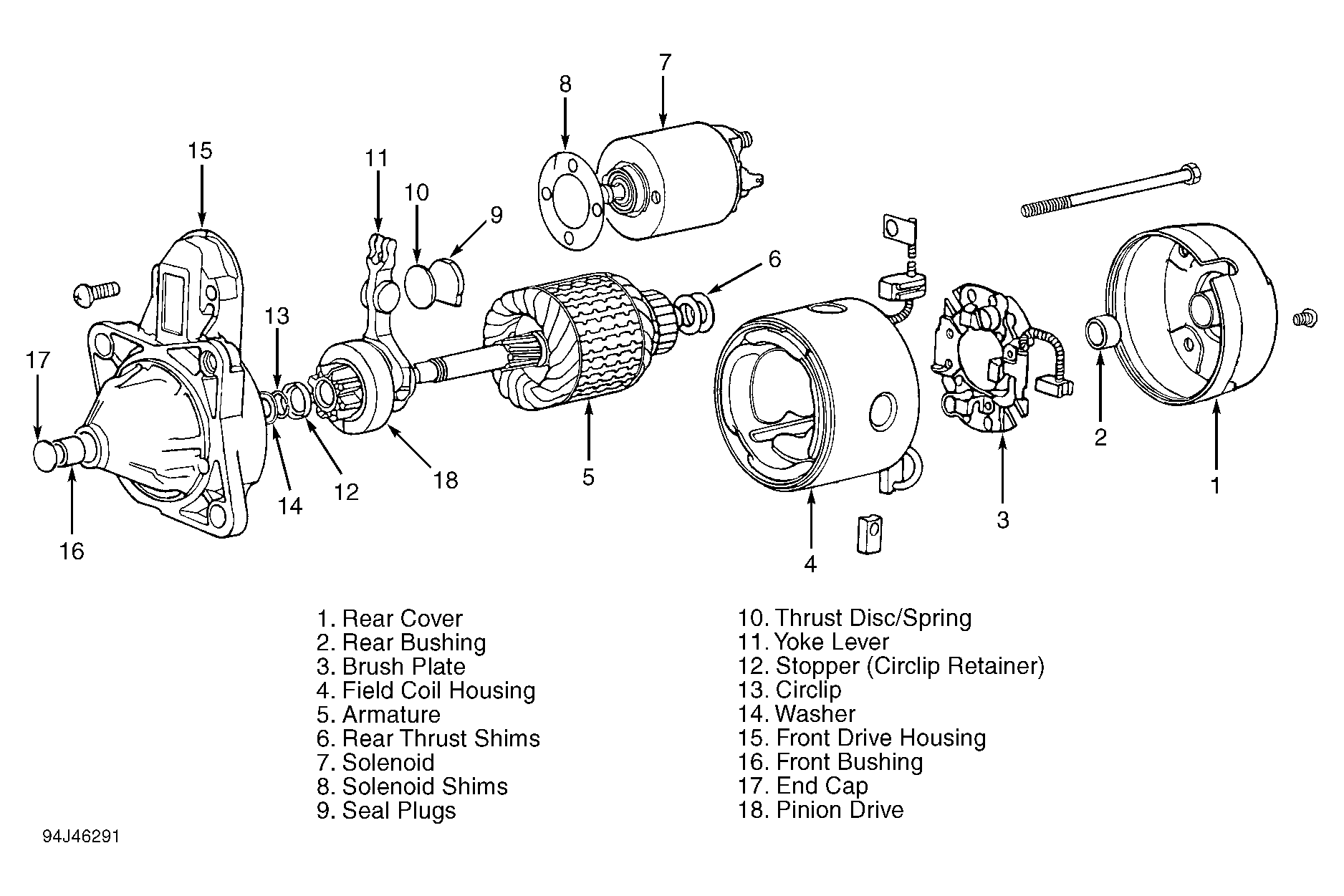

Fig 1: Exploded View Of Direct Drive Starter

Courtesy of MAZDA MOTORS CORP.
