Code 04: (SGT Signal - Distributor)

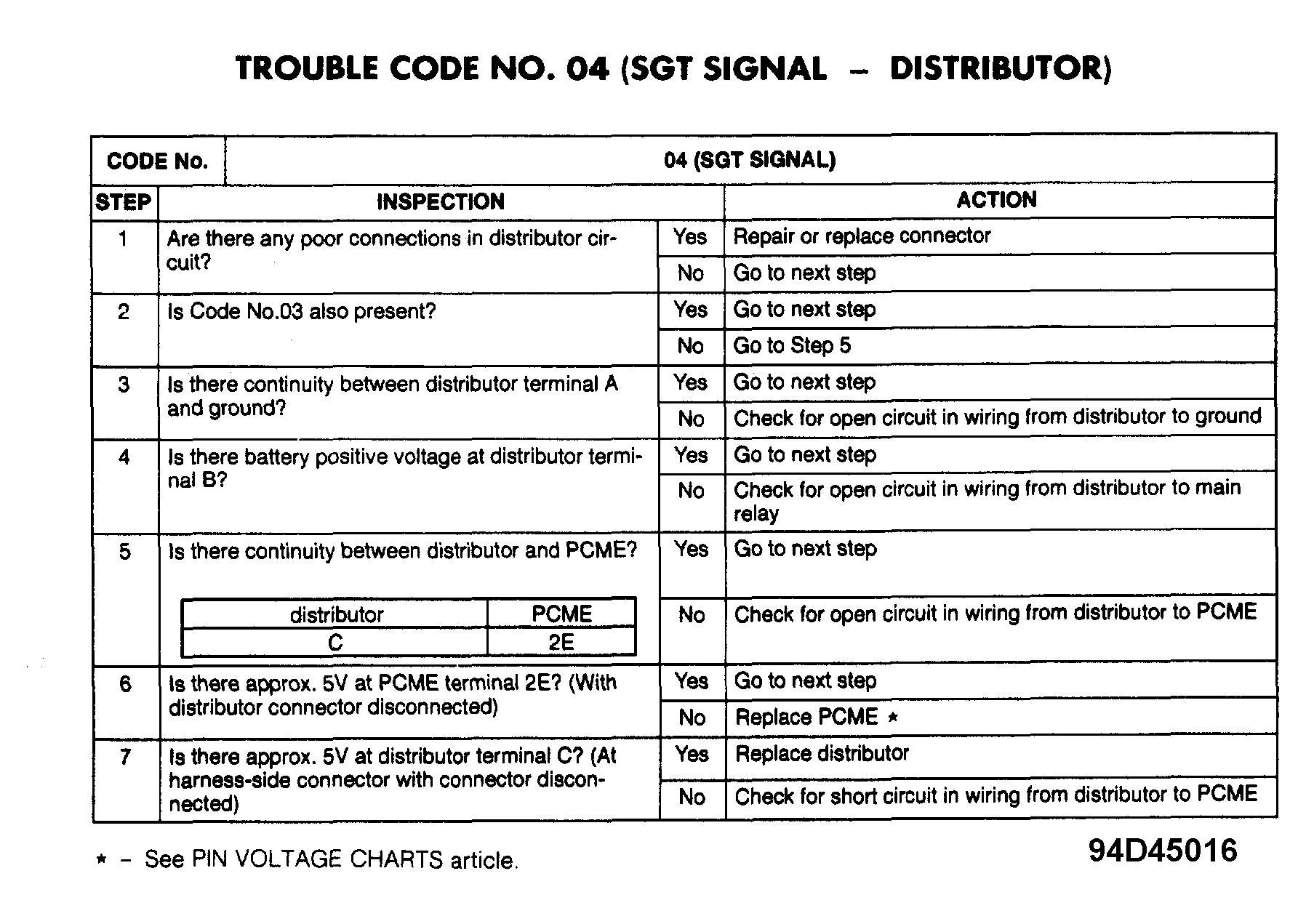

Fig 1: Trouble Code No. 04 Diagnostic Chart (SGT Signal - Distributor - Protege)

Courtesy of MAZDA MOTORS CORP.

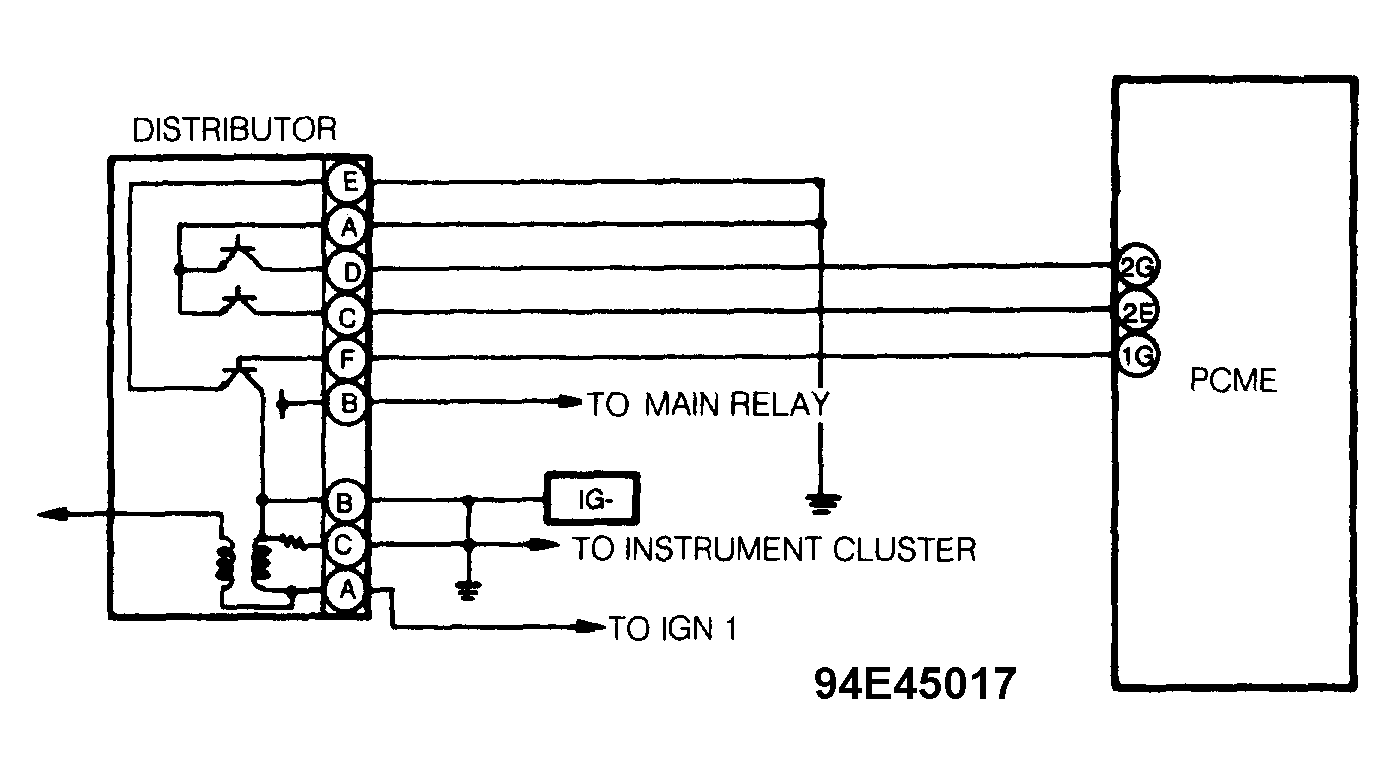

Fig 2: Trouble Code No. 04 Circuit Diagram

Courtesy of MAZDA MOTORS CORP.
