Code 09: (Coolant THERMOSENSOR)

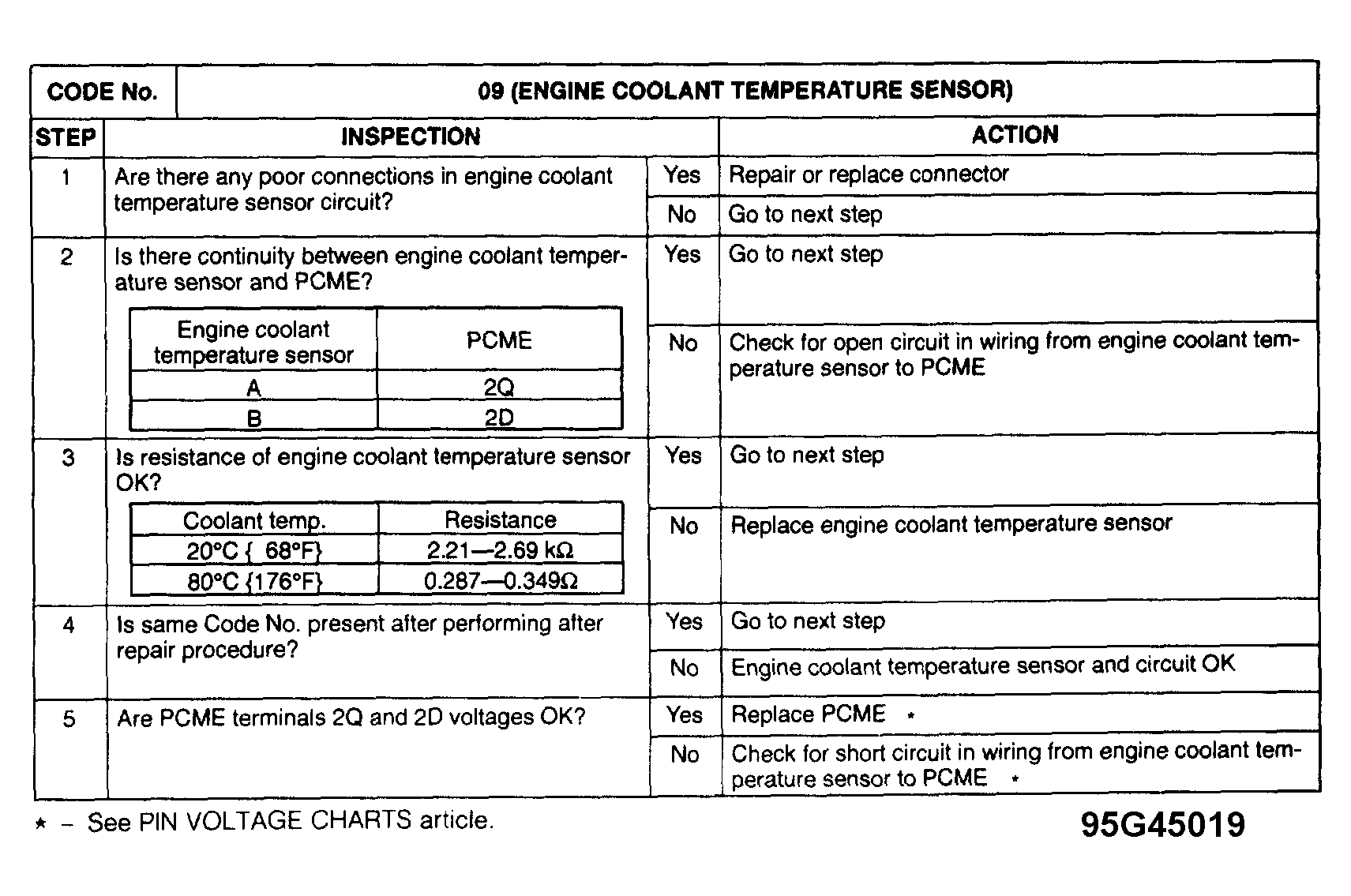

Fig 1: Trouble Code No. 09 Diagnostic Chart (Coolant Thermosensor )
G94G45019Courtesy of MAZDA MOTORS CORP.
