Code 15: (Oxygen Sensor)

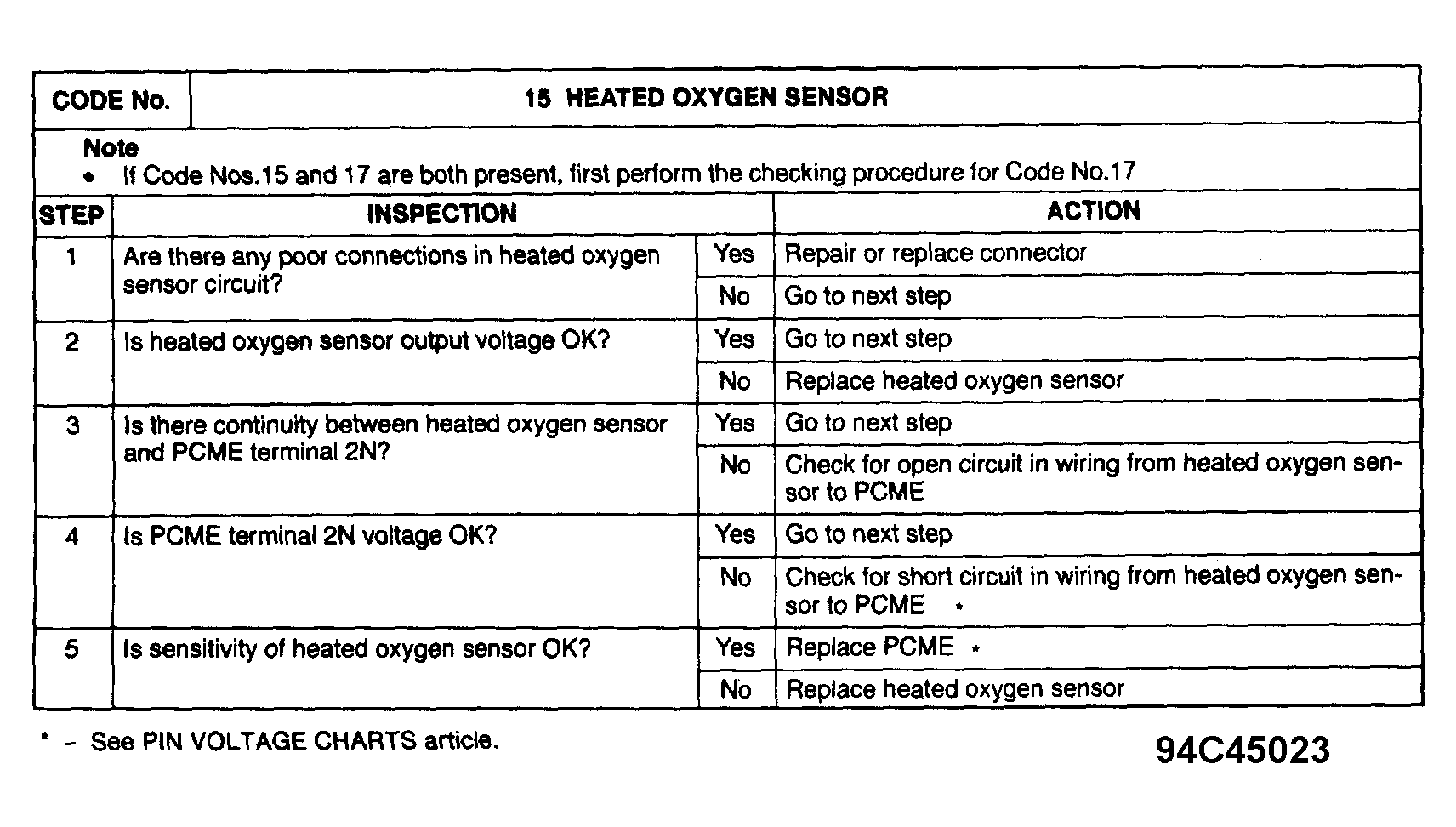

Fig 1: Trouble Code No. 15 Diagnostic Chart (Oxygen Sensor )
G94C45023Courtesy of MAZDA MOTORS CORP.

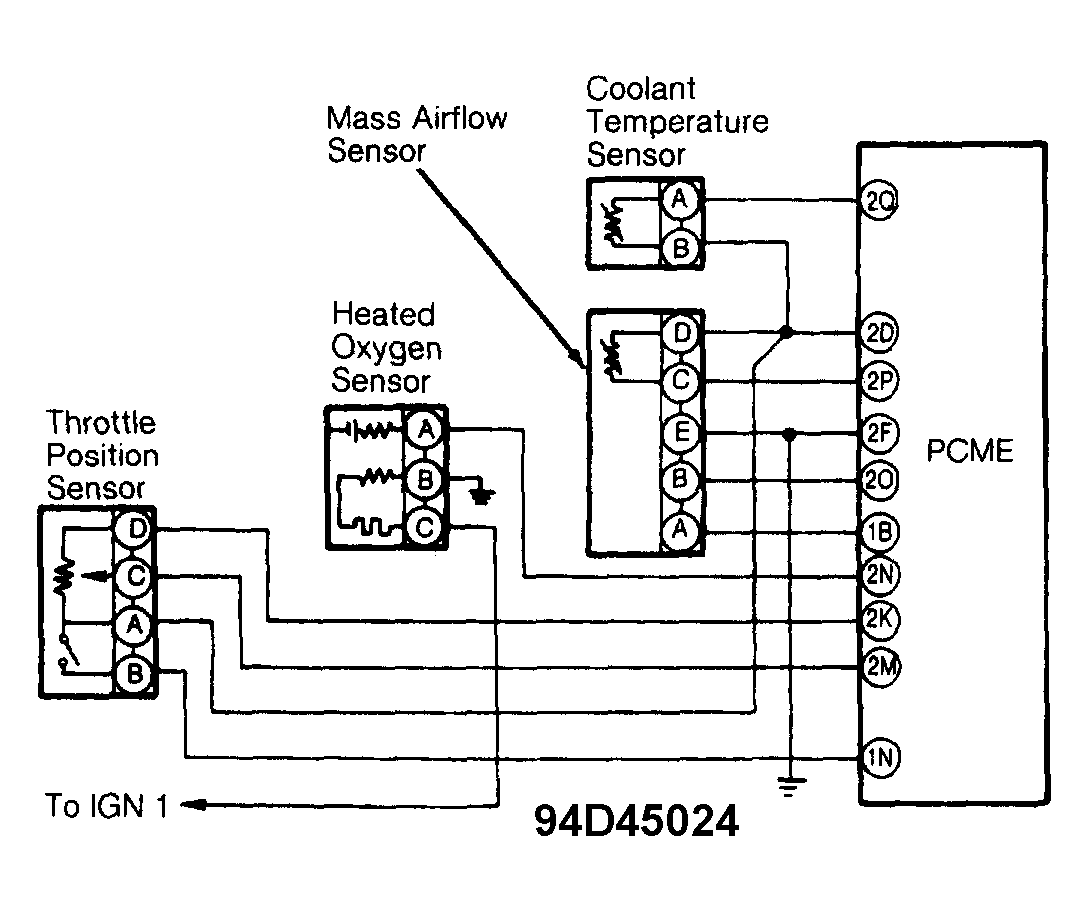

Fig 2: Trouble Code No. 15 Circuit Diagram
G94D45024Courtesy of MAZDA MOTORS CORP.
