Code 16: (EGR Function Sensor)

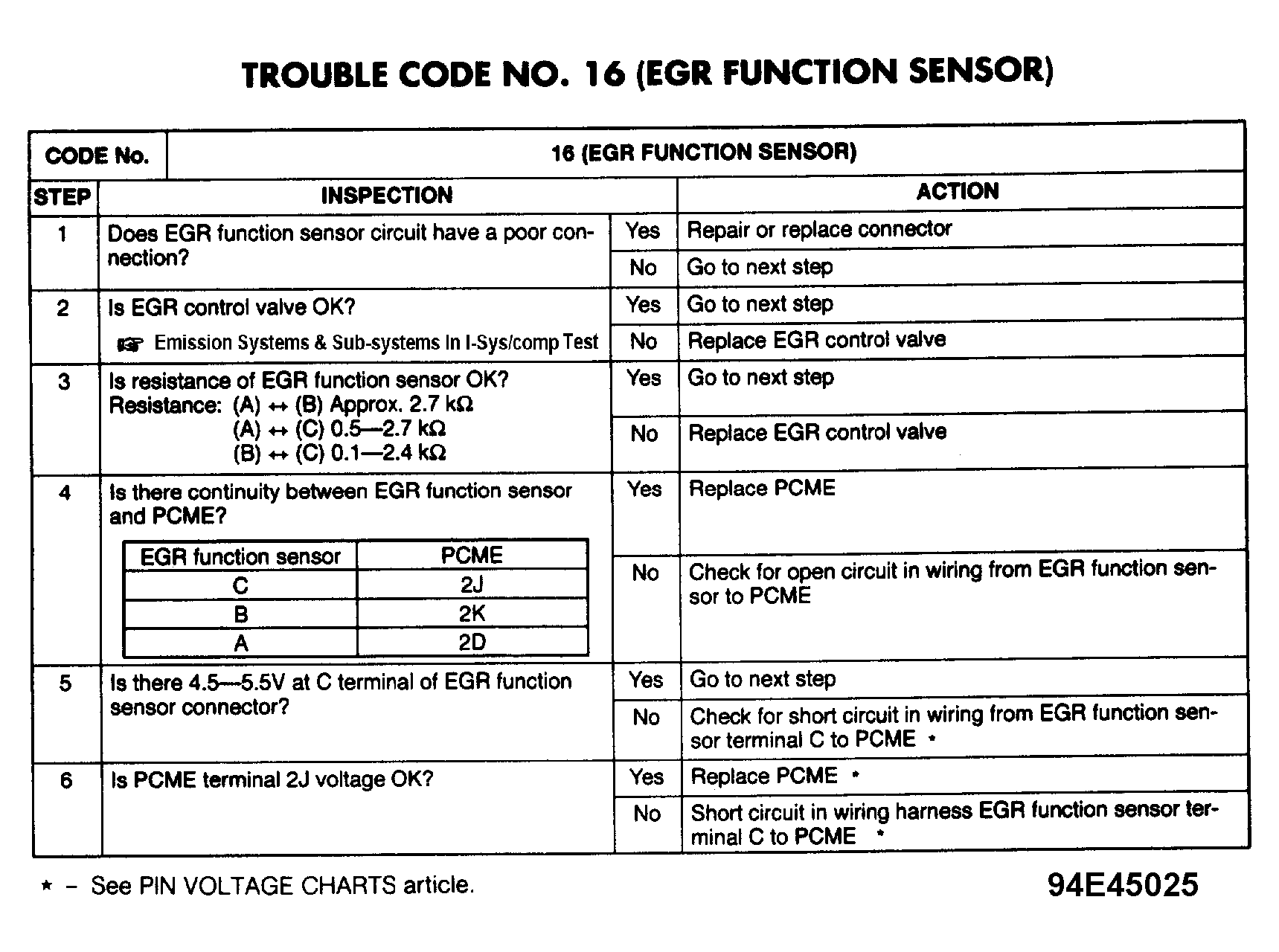

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Function Sensor) Ckt. Diagram

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 16 Circuit Diagram

Courtesy of MAZDA MOTORS CORP.
