Home › Mazda › 1994 › Protege Base › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Trouble Code Identification › Code 17: (Oxygen Sensor - Inaccurate)

Code 17: (Oxygen Sensor - Inaccurate)

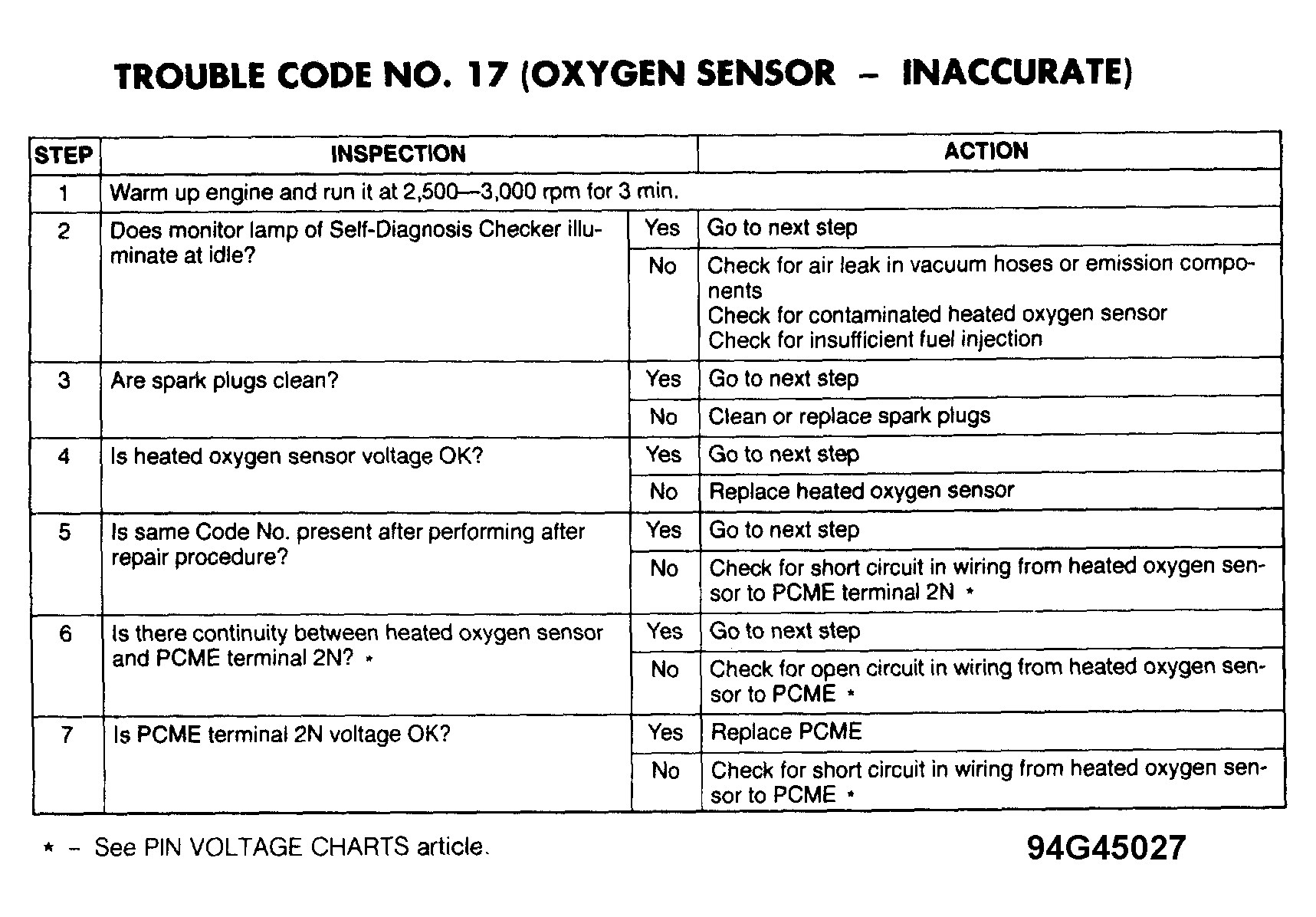

Fig 1: Trouble Code No. 17 Diagnostic Chart (Oxygen Sensor - Inaccurate )
G94G45027Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 17 Circuit Diagram
G94H45028Courtesy of MAZDA MOTORS CORP.
