Code 25: (Pressure Regulator Solenoid Valve)
Code 25: (Pressure Regulator Solenoid Valve)

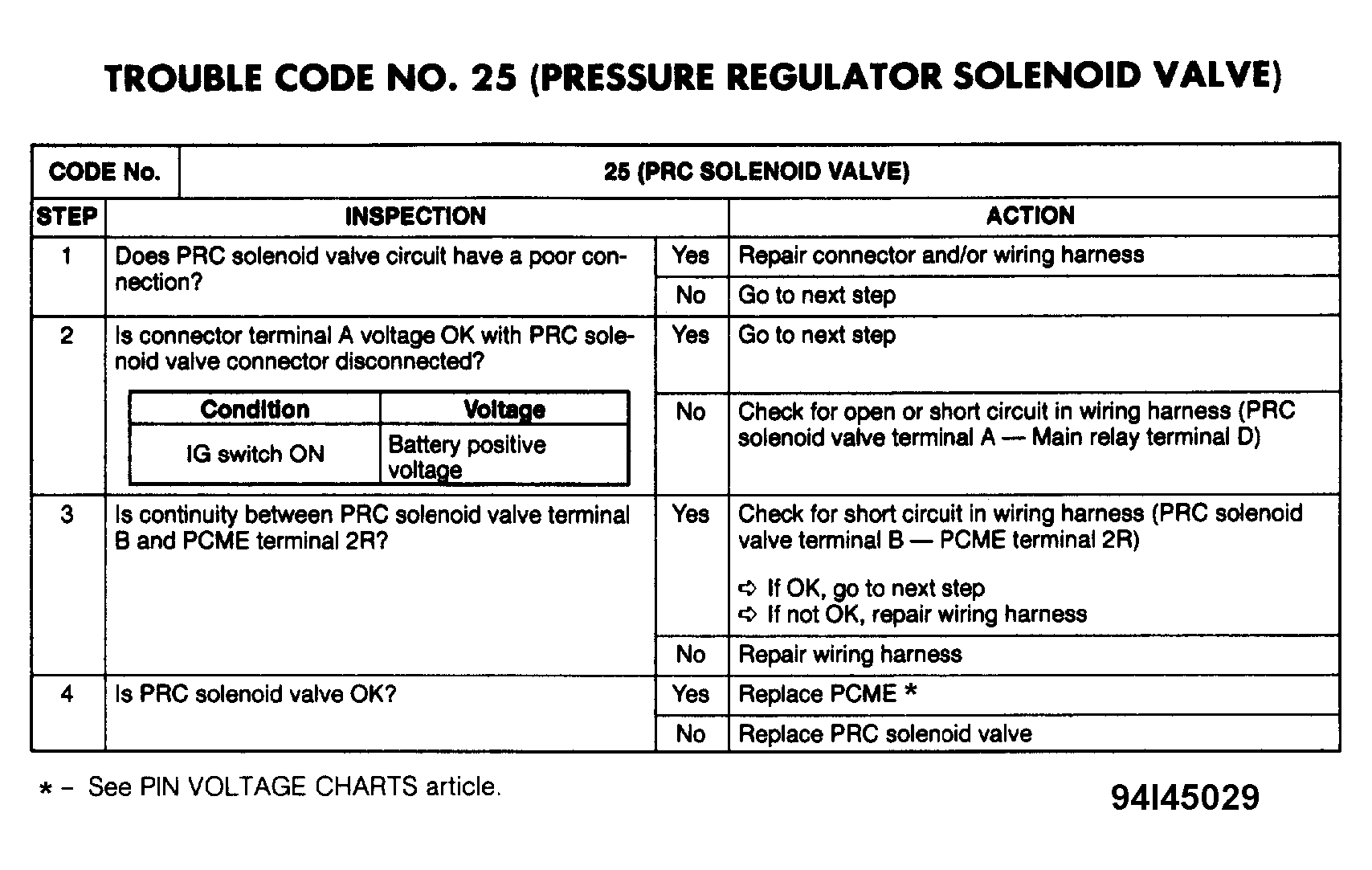

Fig 1: Trouble Code No. 25 Diagnostic Chart (Pressure Regulator Solenoid Valve )
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
