Code 41: (Variable Inertia Charging System - DOHC)

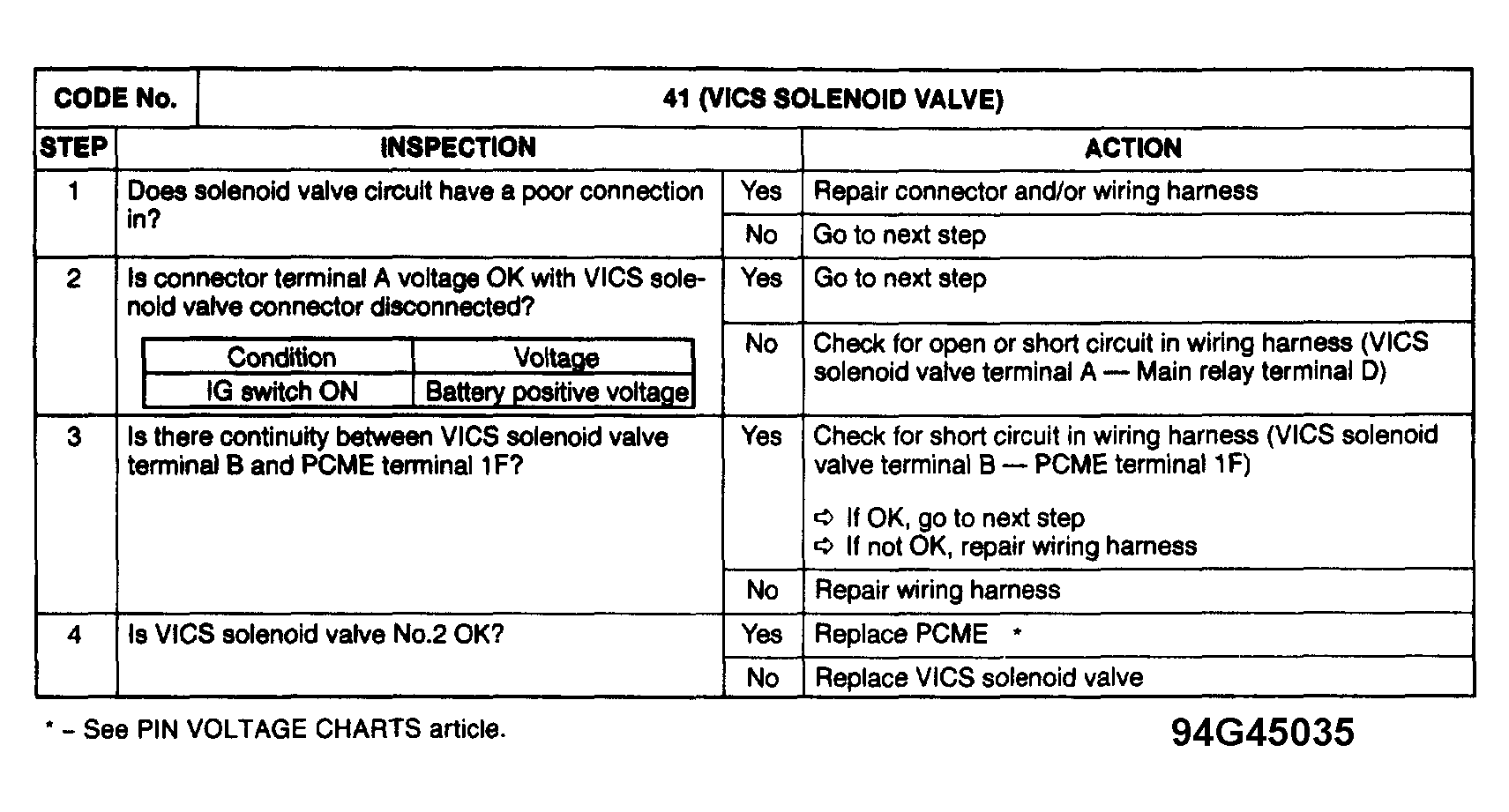

Fig 1: Trouble Code No. 41 (Variable Inertia Charging System - DOHC )

Courtesy of MAZDA MOTORS CORP.

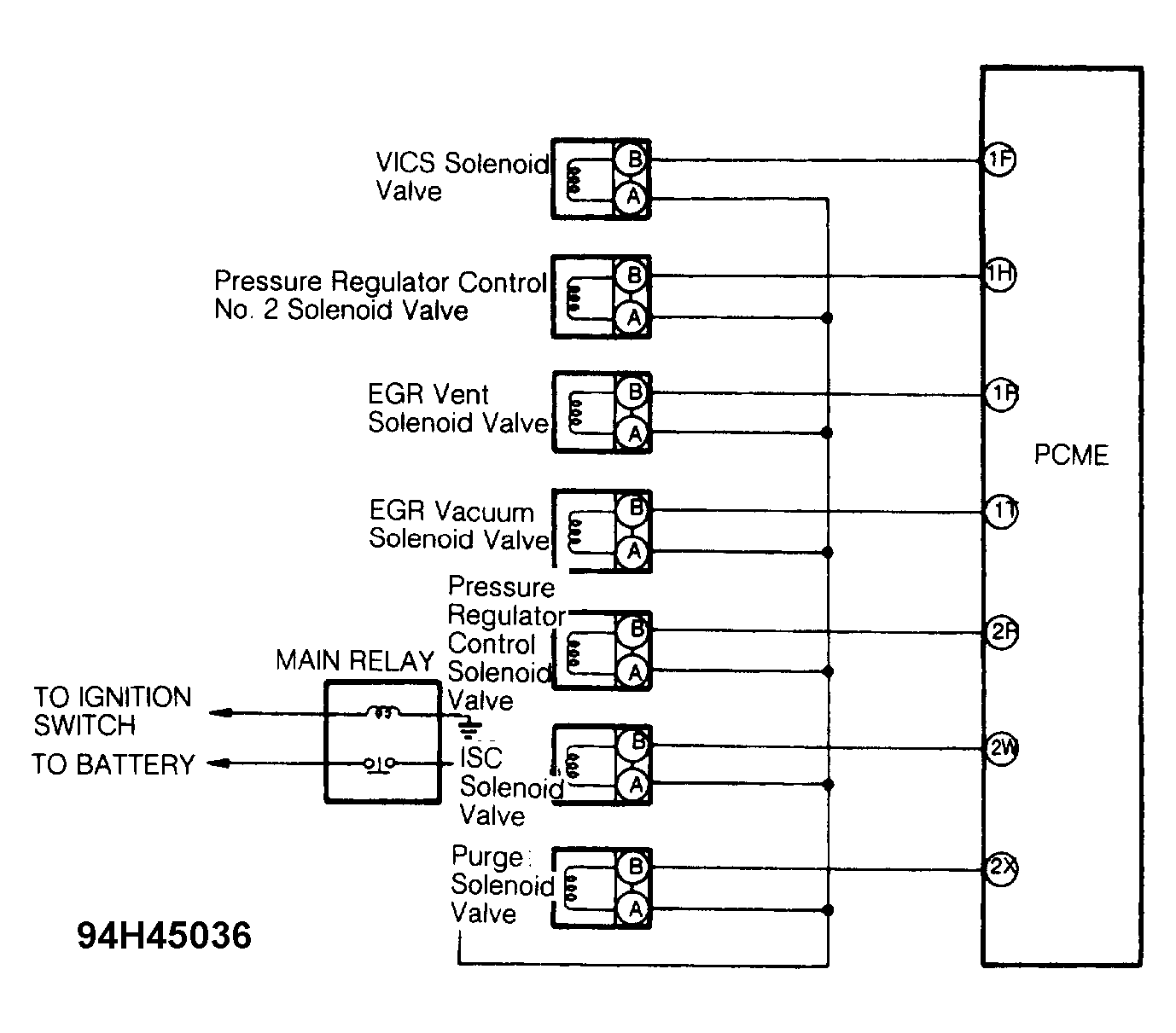

Fig 2: Trouble Code No. 41 Circuit Diagram

Courtesy of MAZDA MOTORS CORP.
