Steering Gear

NOTE: See Fig 1 for exploded views of rack and pinion steering gears.

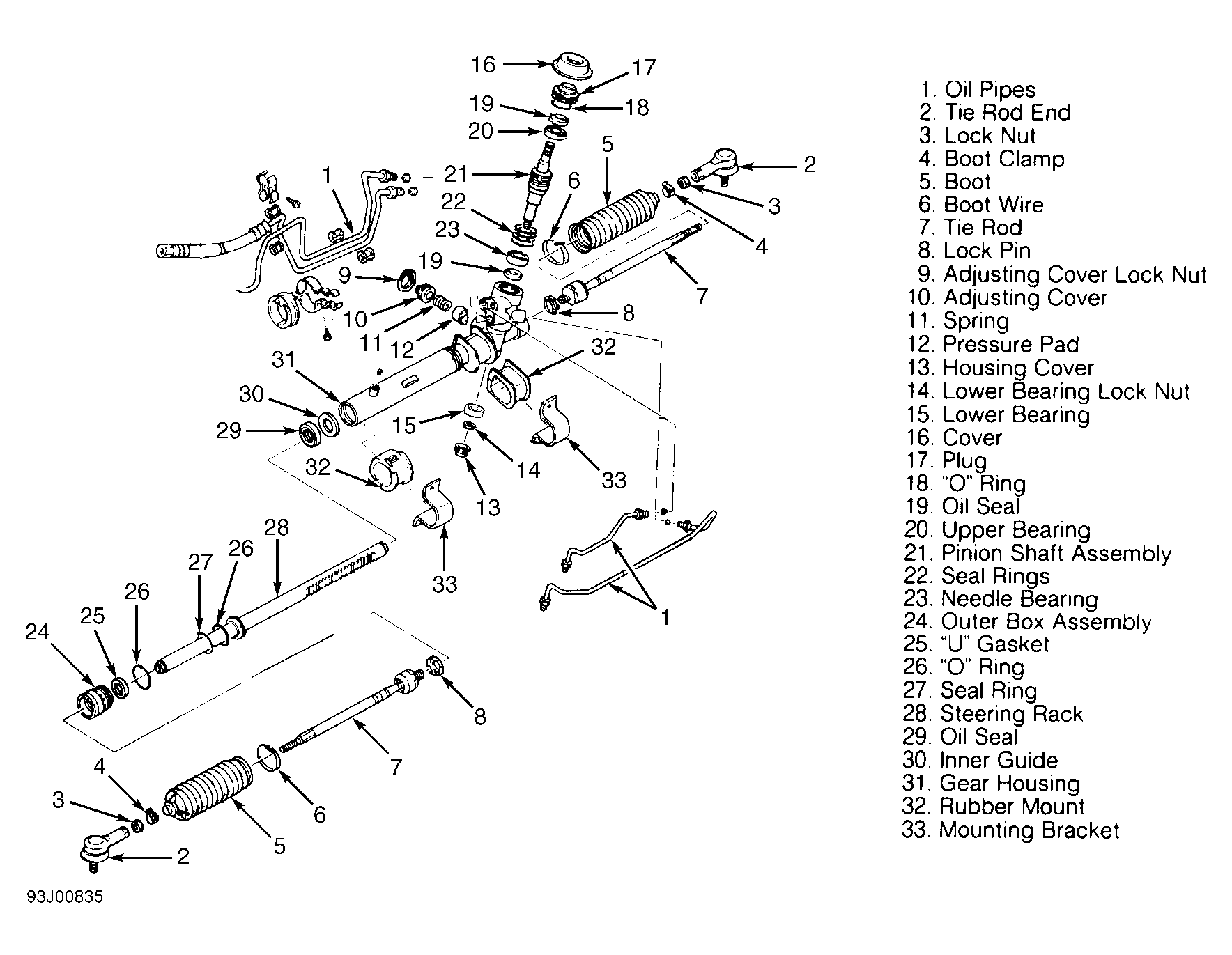

Fig 1: Exploded View Of Rack & Pinion Steering Gear
G93J00835Courtesy of MAZDA MOTORS CORP.
