Code 5: (Knock Sensor)
Code 5: (Knock Sensor)

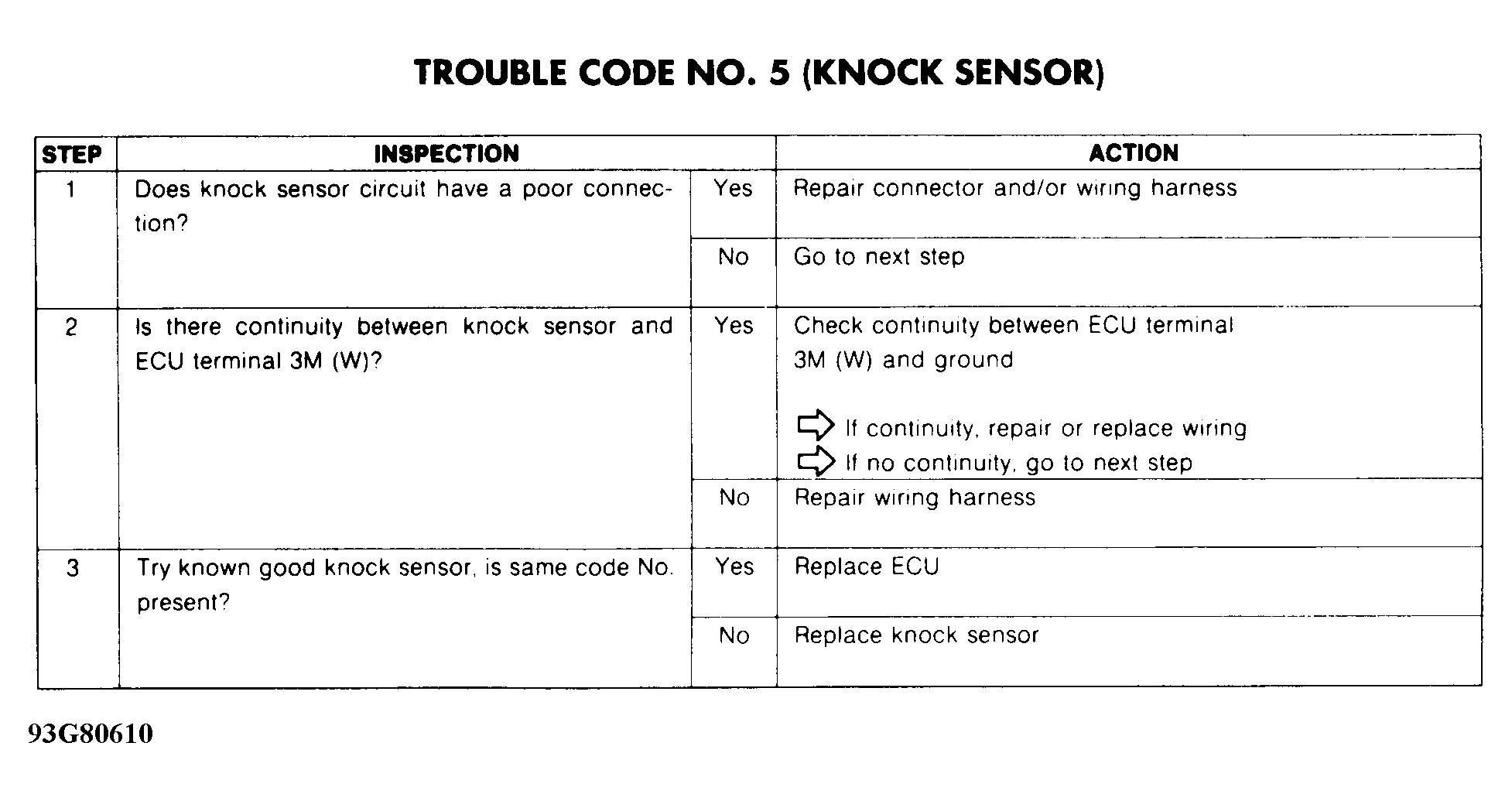

Fig 1: Trouble Code No. 5 Diagnostic Chart (RX7) (Knock Sensor)
Fig 2: Trouble Code No. 5 Schematic (RX7) (Knock Sensor)
