Code 10: Intake Air Temperature Sensor - In Volume Air Flow Sensor

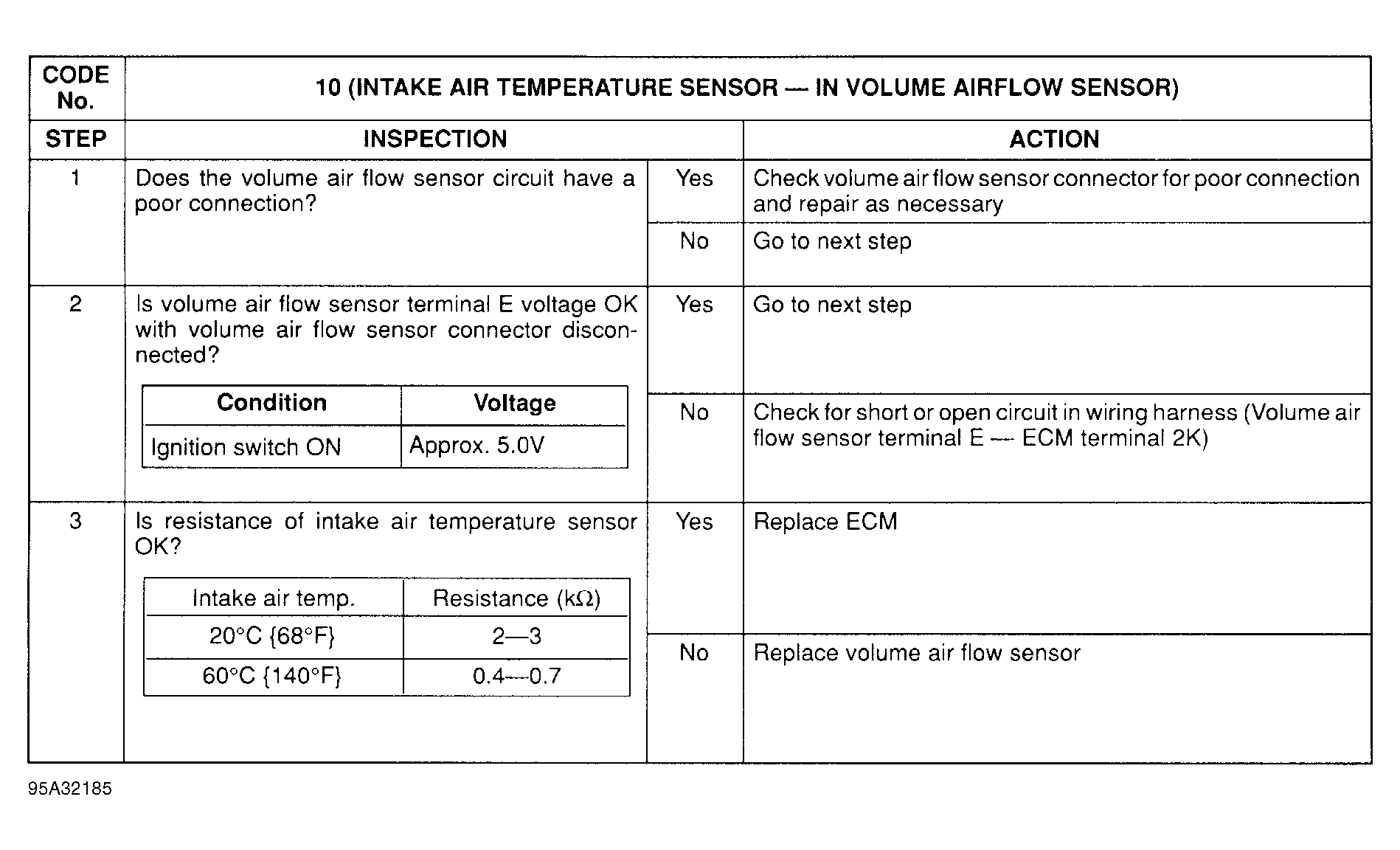

Fig 1: Trouble Code No. 10 Intake Air Temperature Sensor - In Volume Air Flow Sensor
G95A32185
Fig 2: Trouble Code No. 10 Intake Air Temperature Sensor Circuit Diagram
G95H32182
