Code 12: Throttle Position Sensor

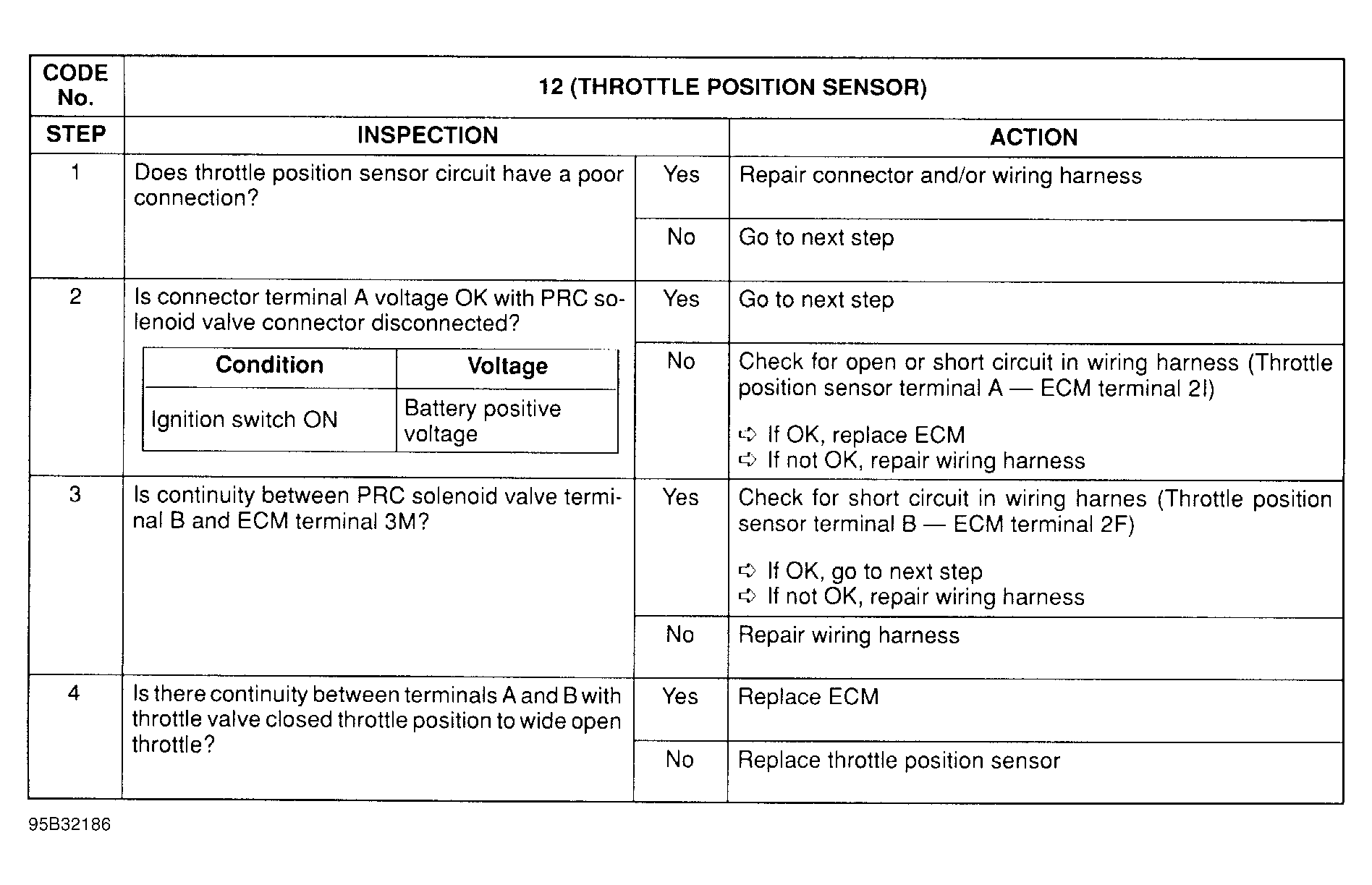

Fig 1: Trouble Code No. 12 Throttle Position Sensor

G95B32186

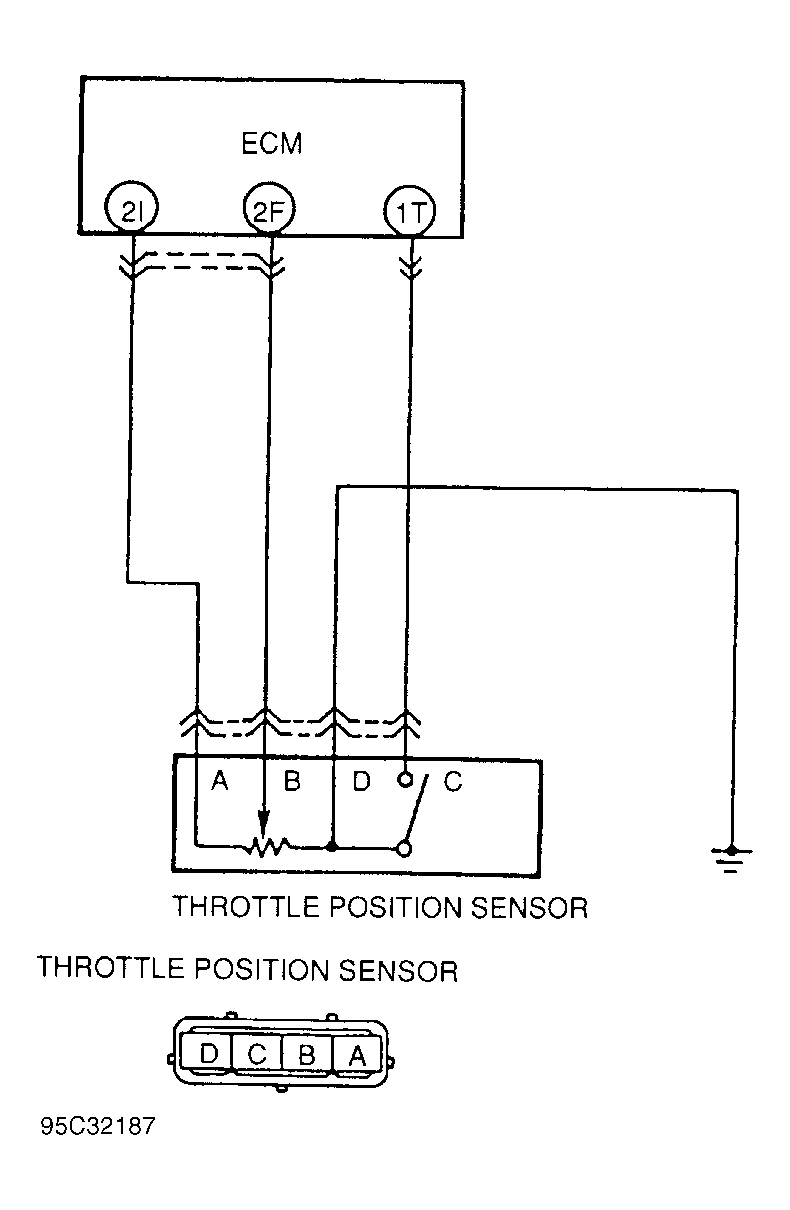

Fig 2: Trouble Code No. 12 Throttle Position Sensor Circuit Diagram

G95C32187
