Code 3: Camshaft Position Sensor - SGC Signal

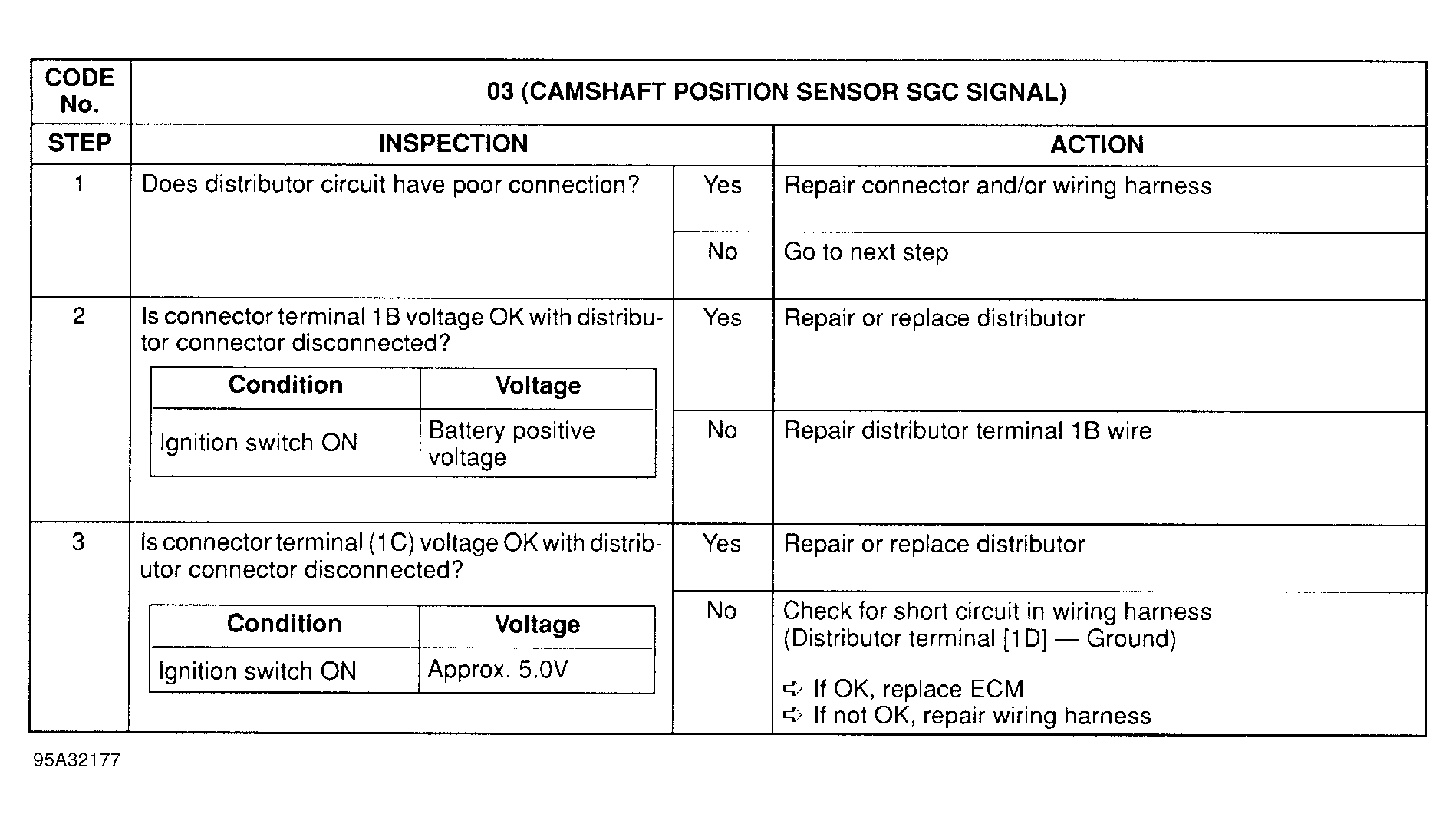

Fig 1: Trouble Code No. 3 Camshaft Position Sensor - SGC Signal

G95A32177

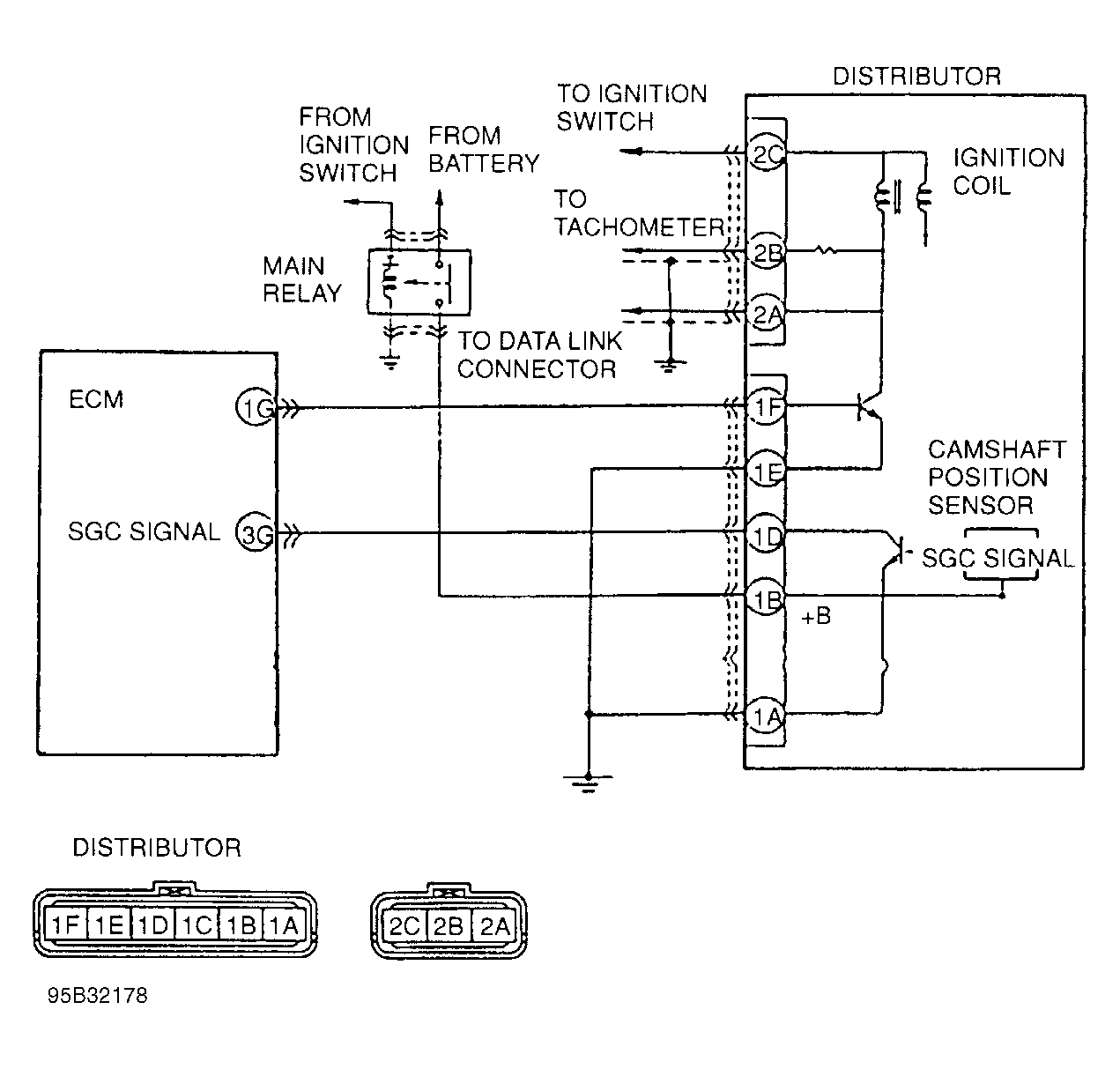

Fig 2: Trouble Code No. 3 Camshaft Position Sensor Circuit Diagram

G95B32178
