Code 34: Idle Air Control Valve

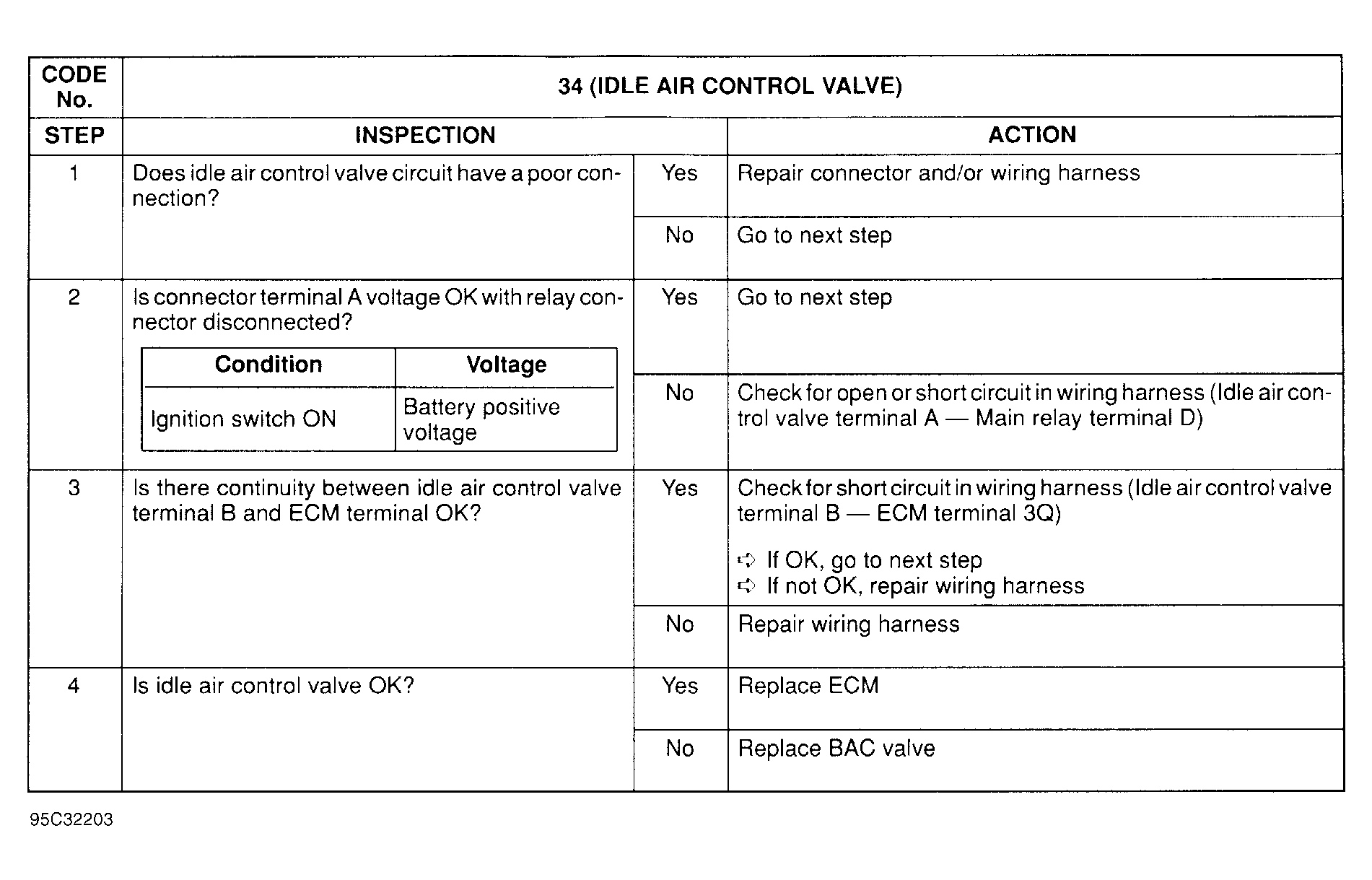

Fig 1: Trouble Code No. 34 Idle Air Control Valve

G95C32203

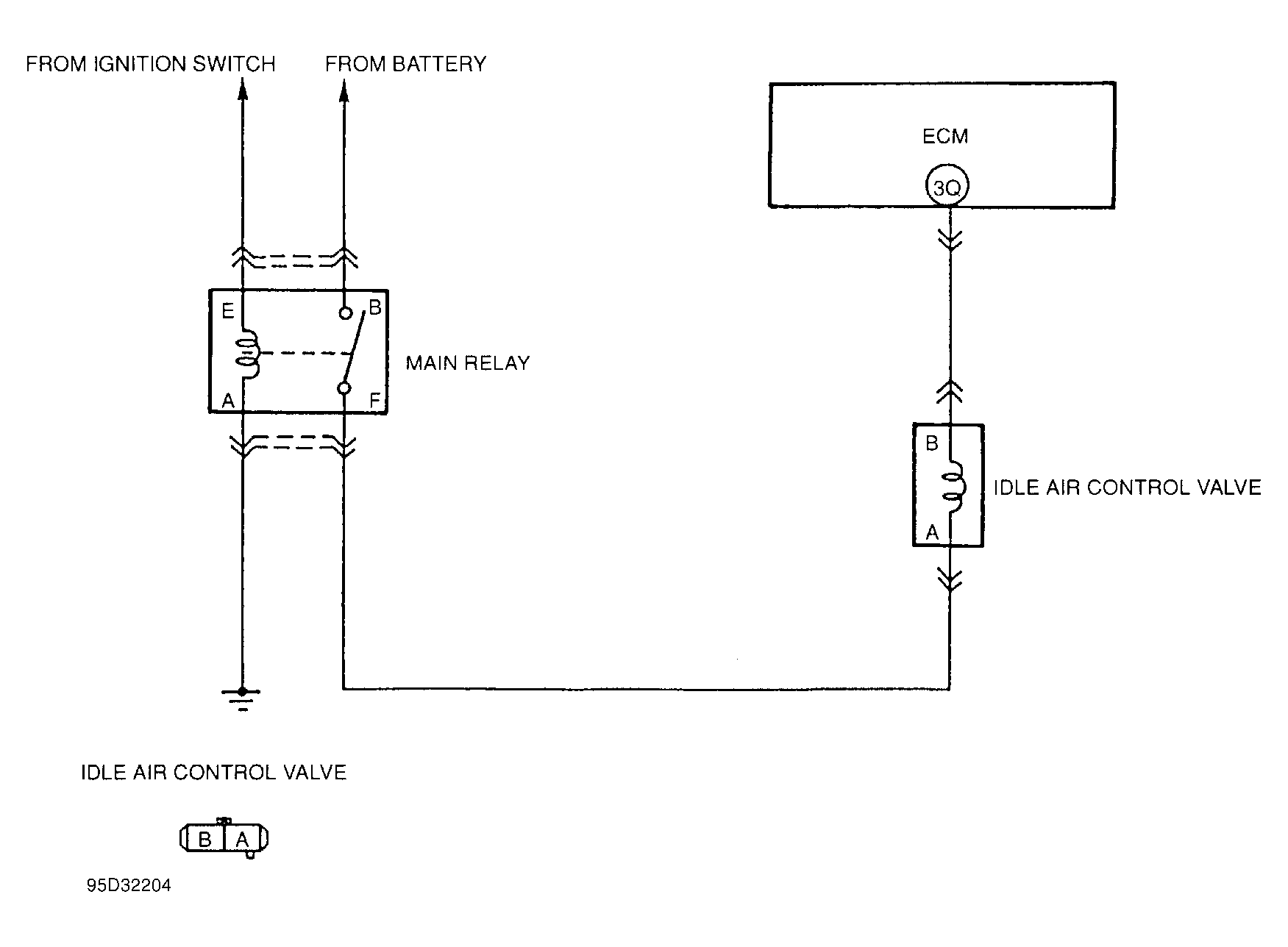

Fig 2: Trouble Code No. 34 Idle Air Control Valve Circuit Diagram

G95D32204
