Code 9: Engine Coolant Temperature Sensor

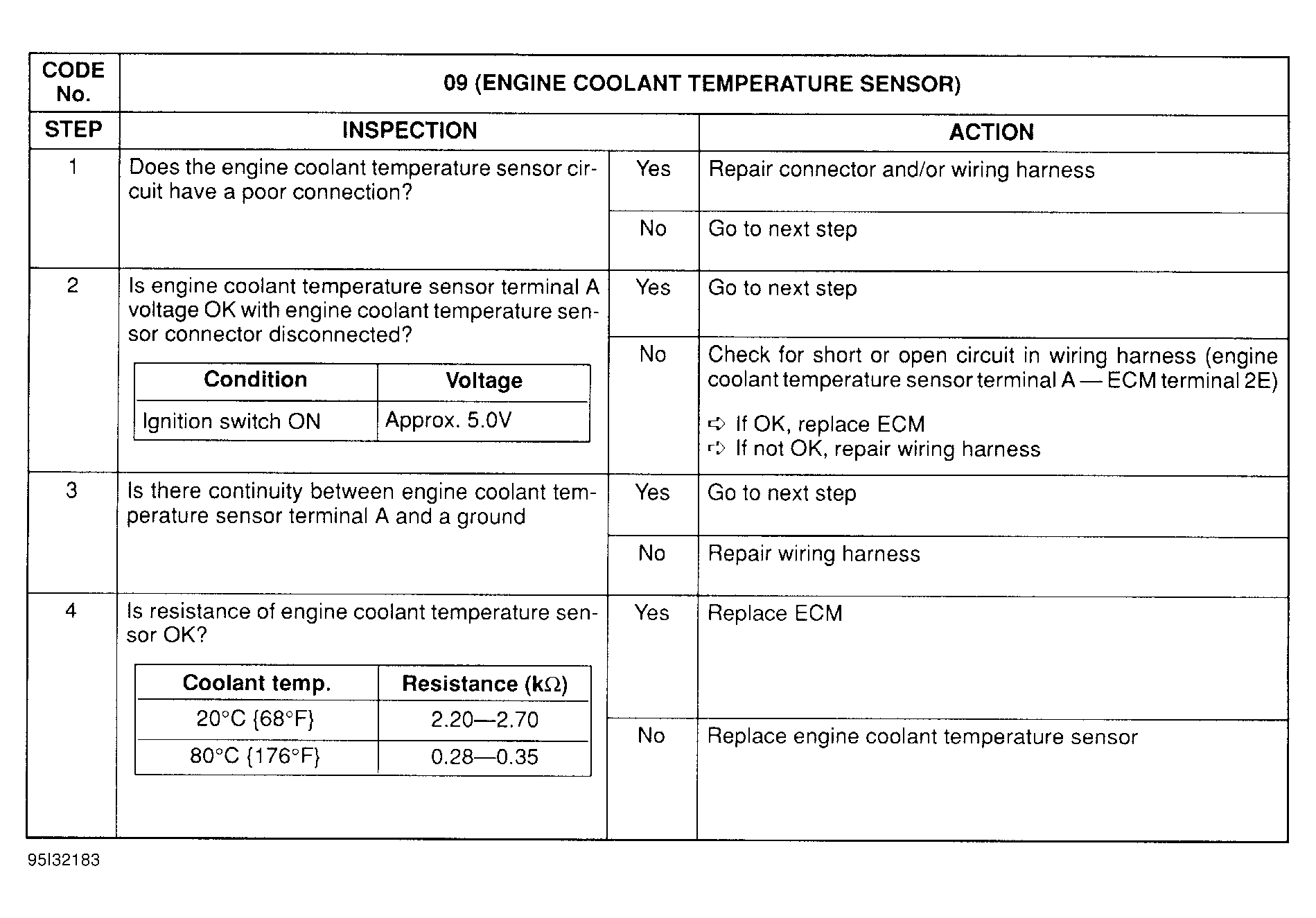

Fig 1: Trouble Code No. 9 Engine Coolant Temperature Sensor

G95I32183

Fig 2: Trouble Code No. 9 Engine Coolant Temperature Sensor Circuit Diagram

G95J32184
