Trouble Code Identification Charts: Notes

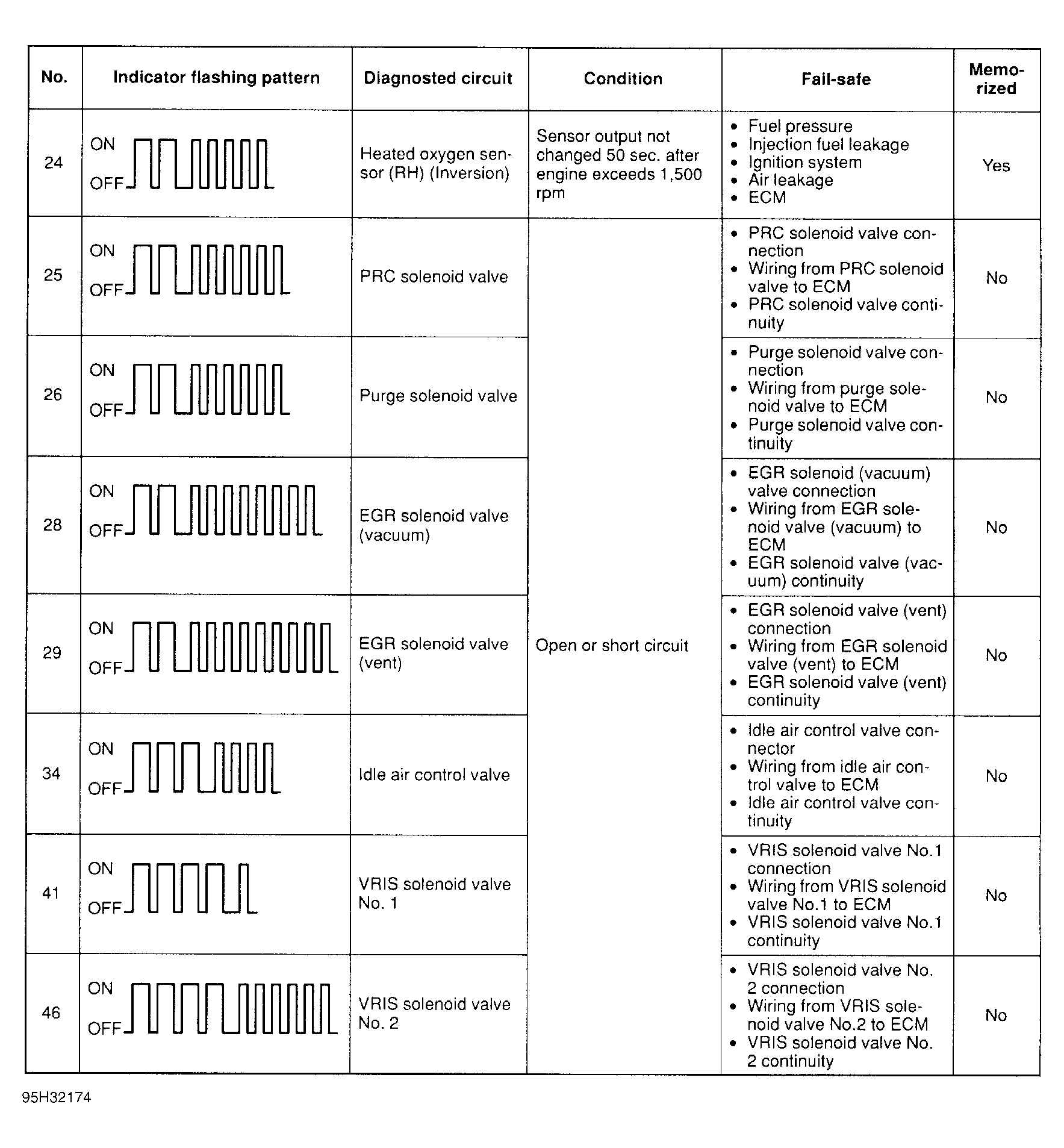

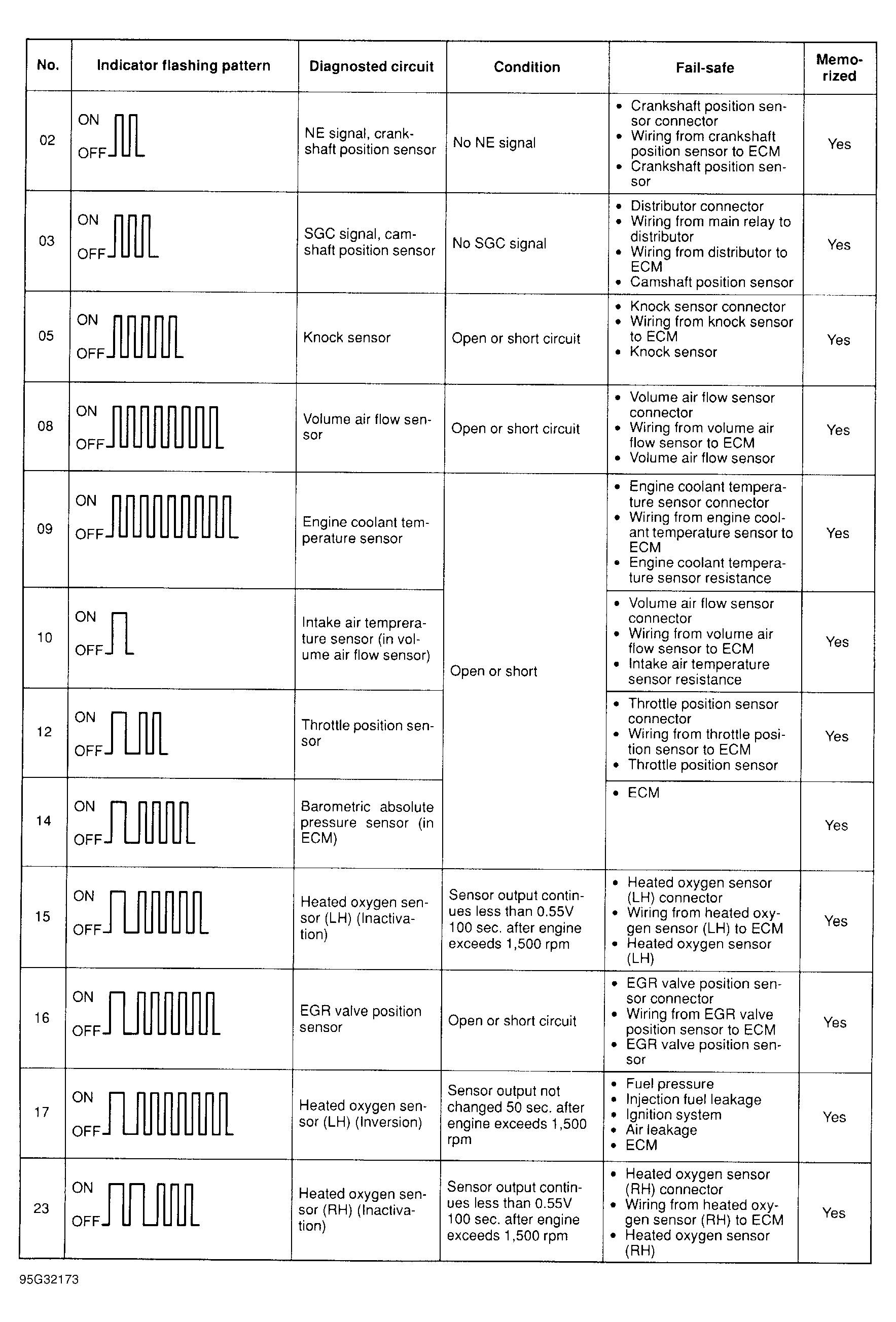

Fig 1: Diagnostic Trouble Code Definition Chart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 2 (Distributor - SGT Signal)

Courtesy of MAZDA MOTORS CORP.
