Pin Voltage Charts

NOTE: The following charts are courtesy of Mazda Motors Corp.

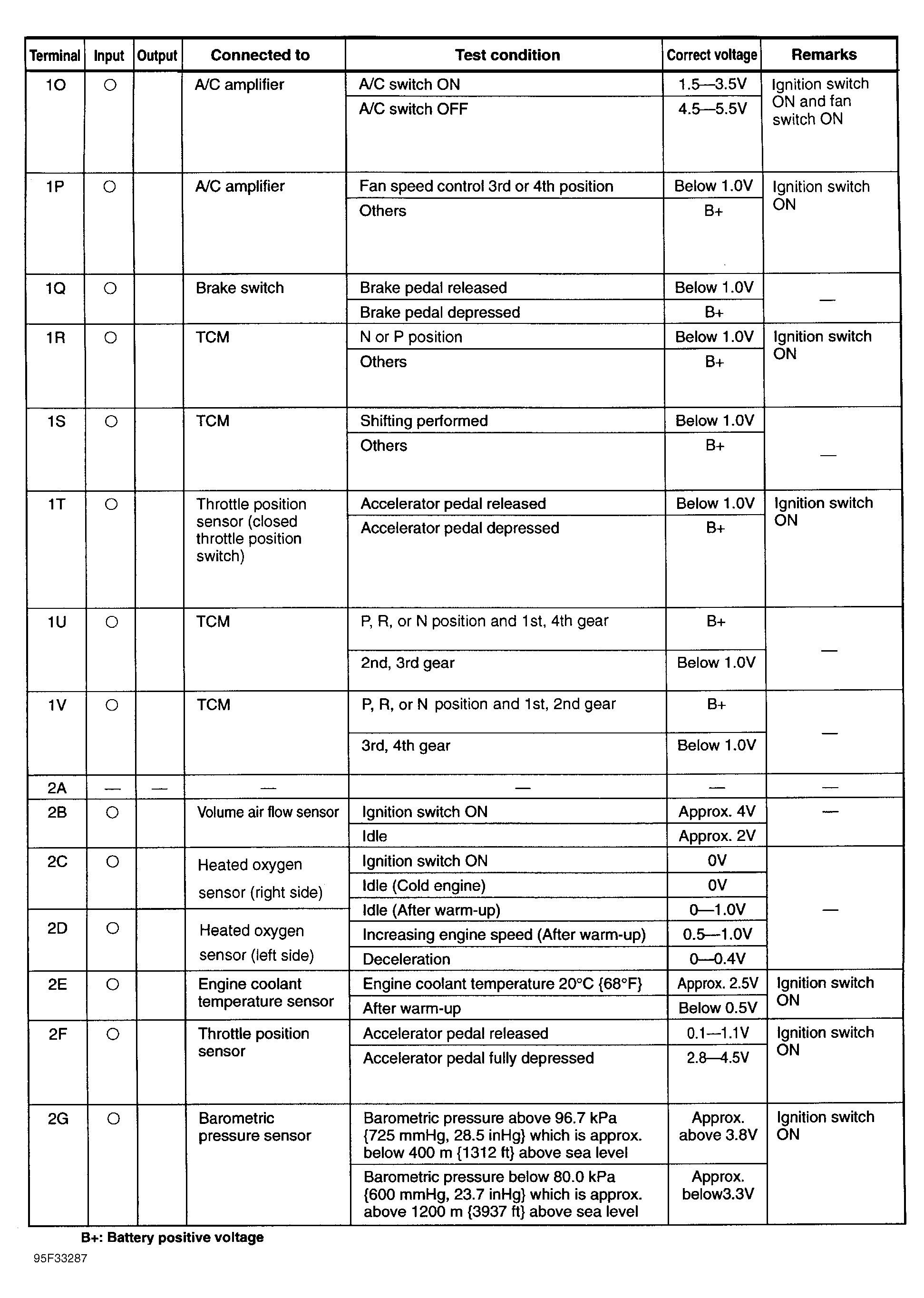

Fig 1: PCM Pin Voltage Chart (929 - 1 Of 4)

Courtesy of MAZDA MOTORS CORP.

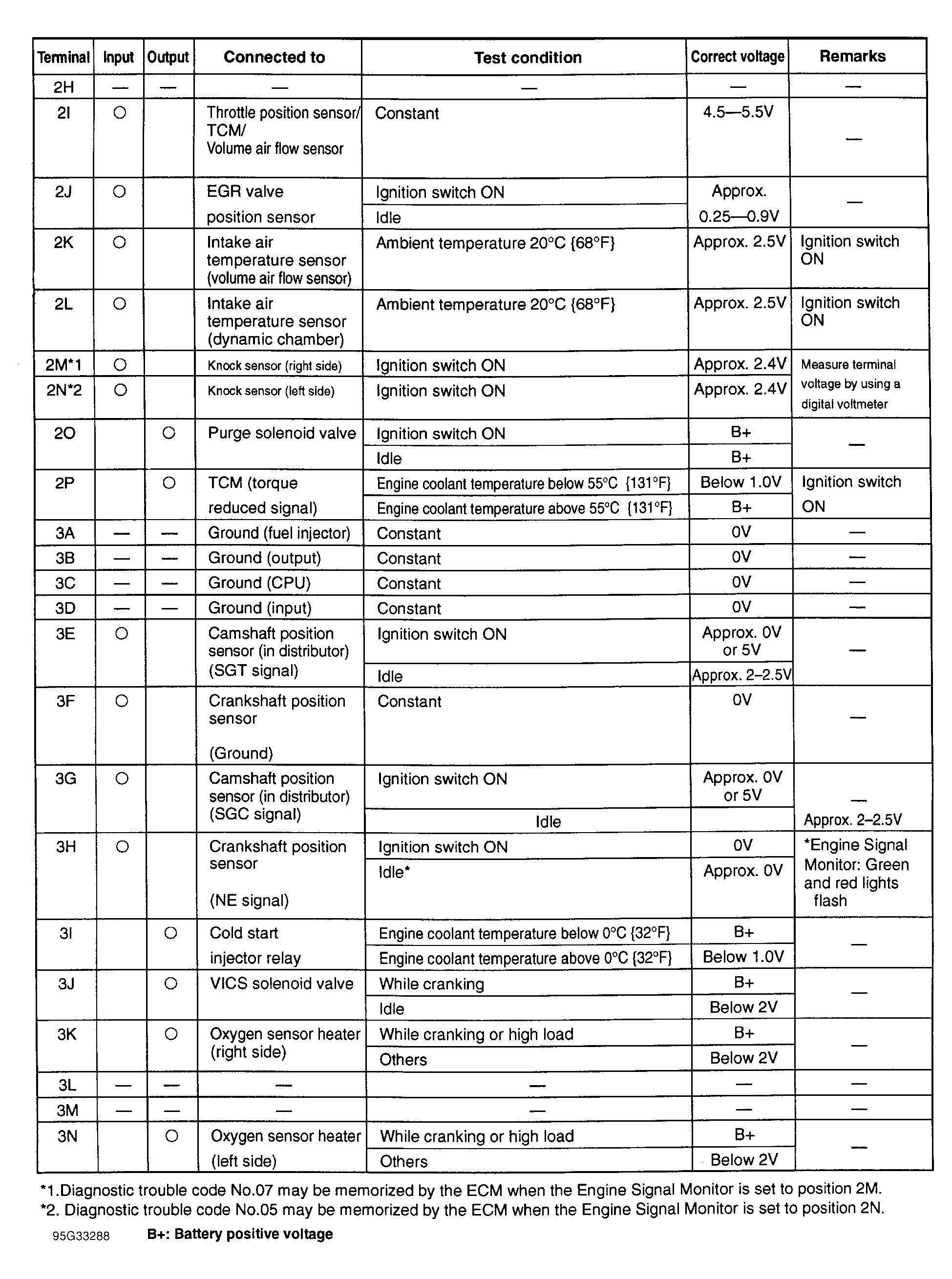

Fig 2: PCM Pin Voltage Chart (929 - 2 Of 4)

Courtesy of MAZDA MOTORS CORP.

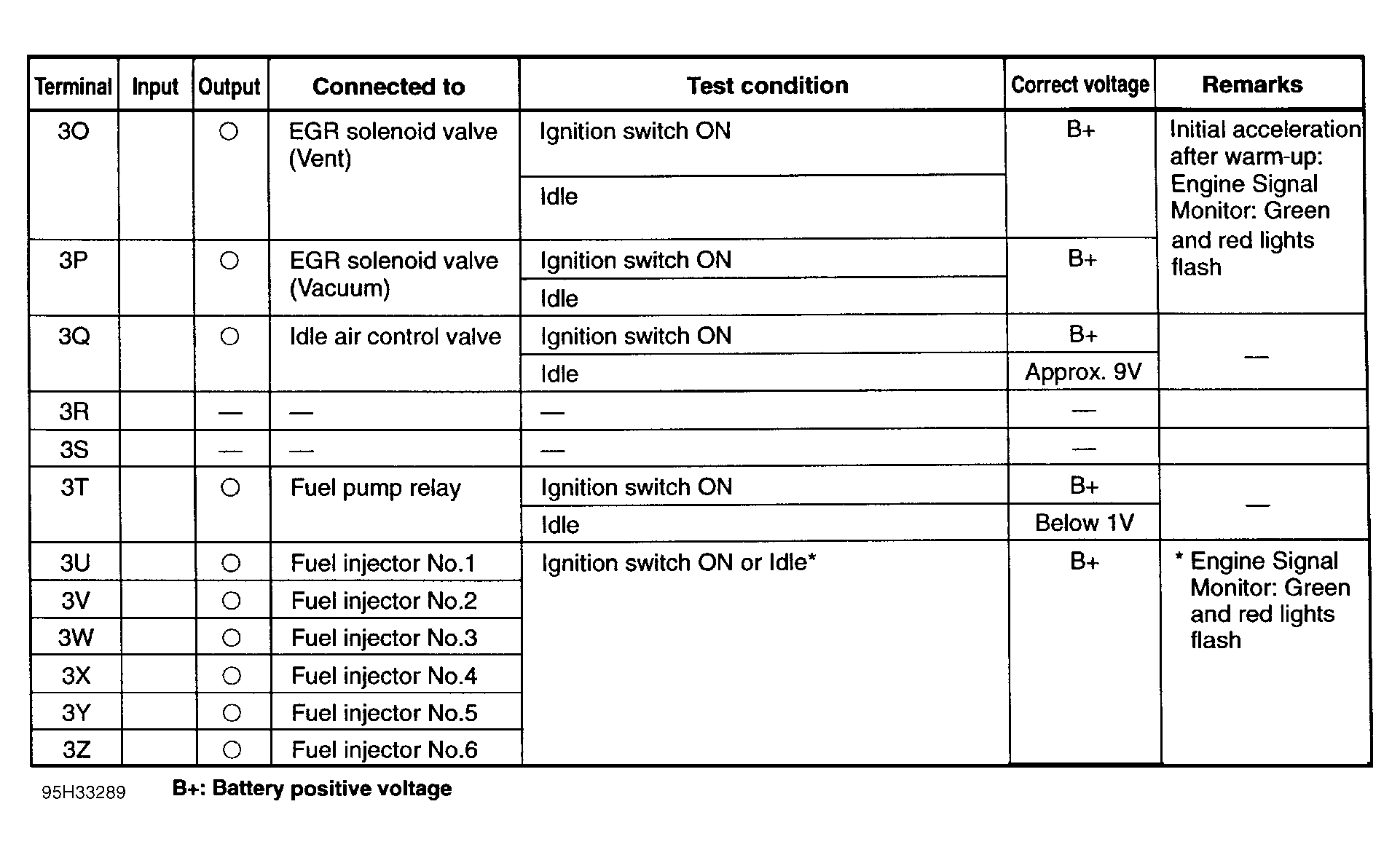

Fig 3: PCM Pin Voltage Chart (929 - 3 Of 4)

Courtesy of MAZDA MOTORS CORP.

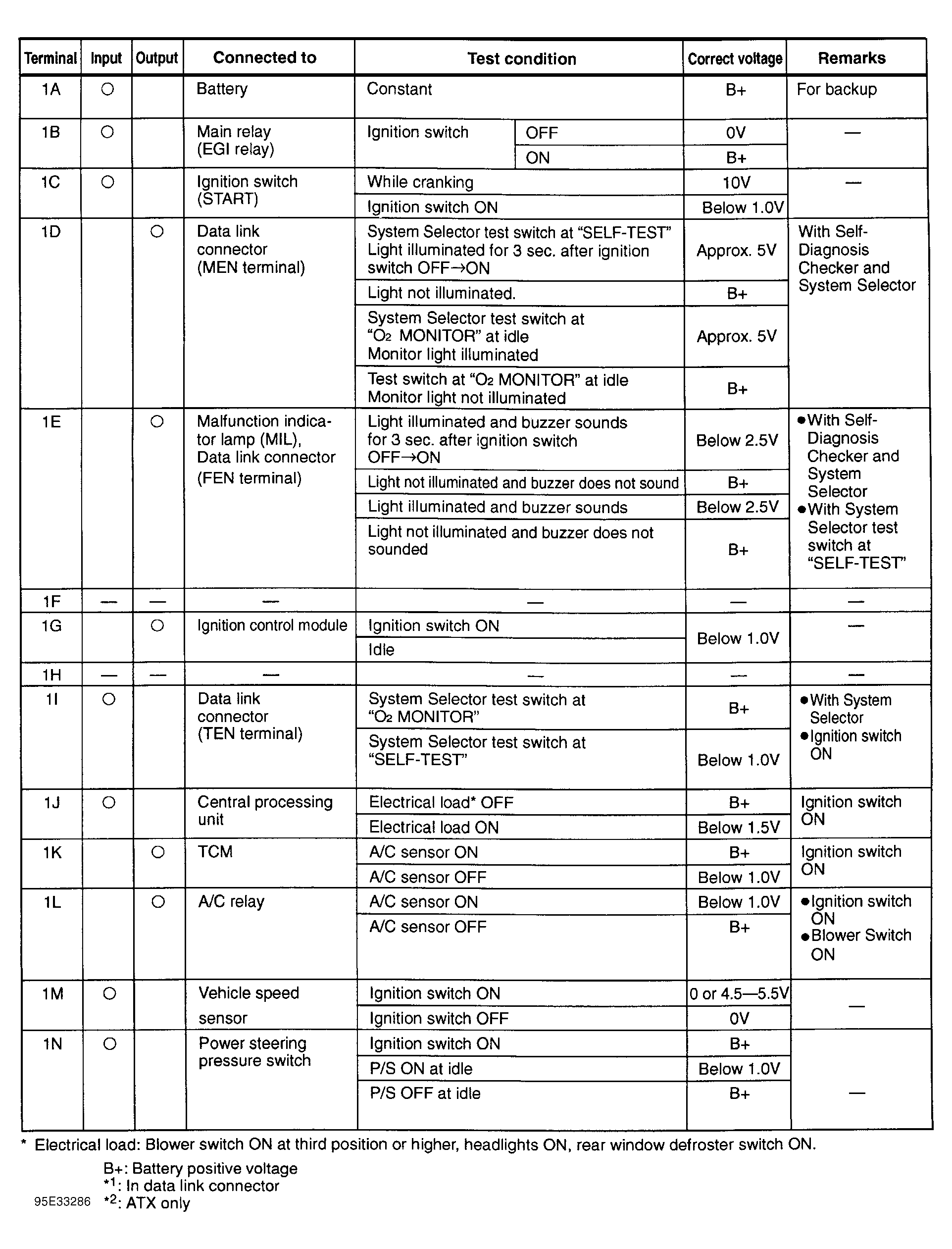

Fig 4: PCM Pin Voltage Chart (929 - 4 Of 4)

Courtesy of MAZDA MOTORS CORP.

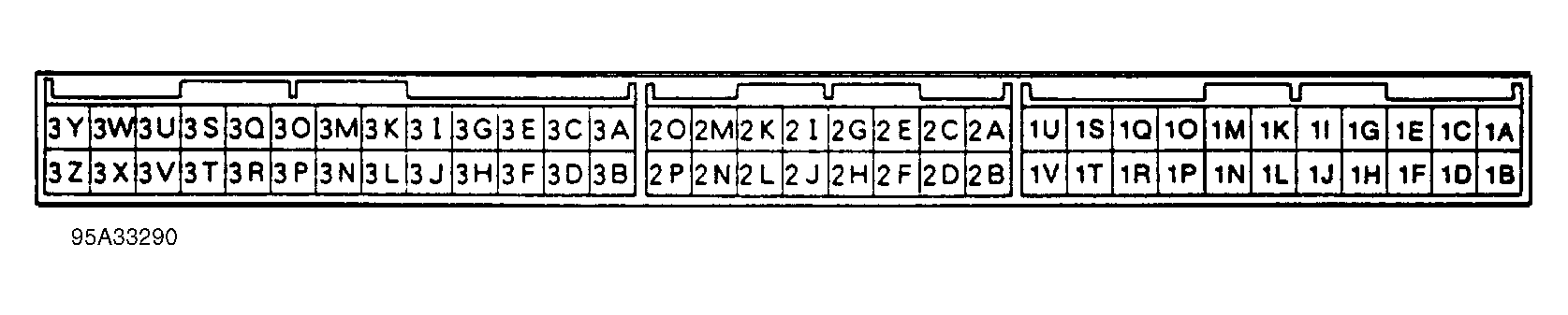

Fig 5: PCM Connector Terminal Identification (929)

Courtesy of MAZDA MOTORS CORP.
