Code 11: Intake Air Temperature Sensor - On Dynamic Chamber

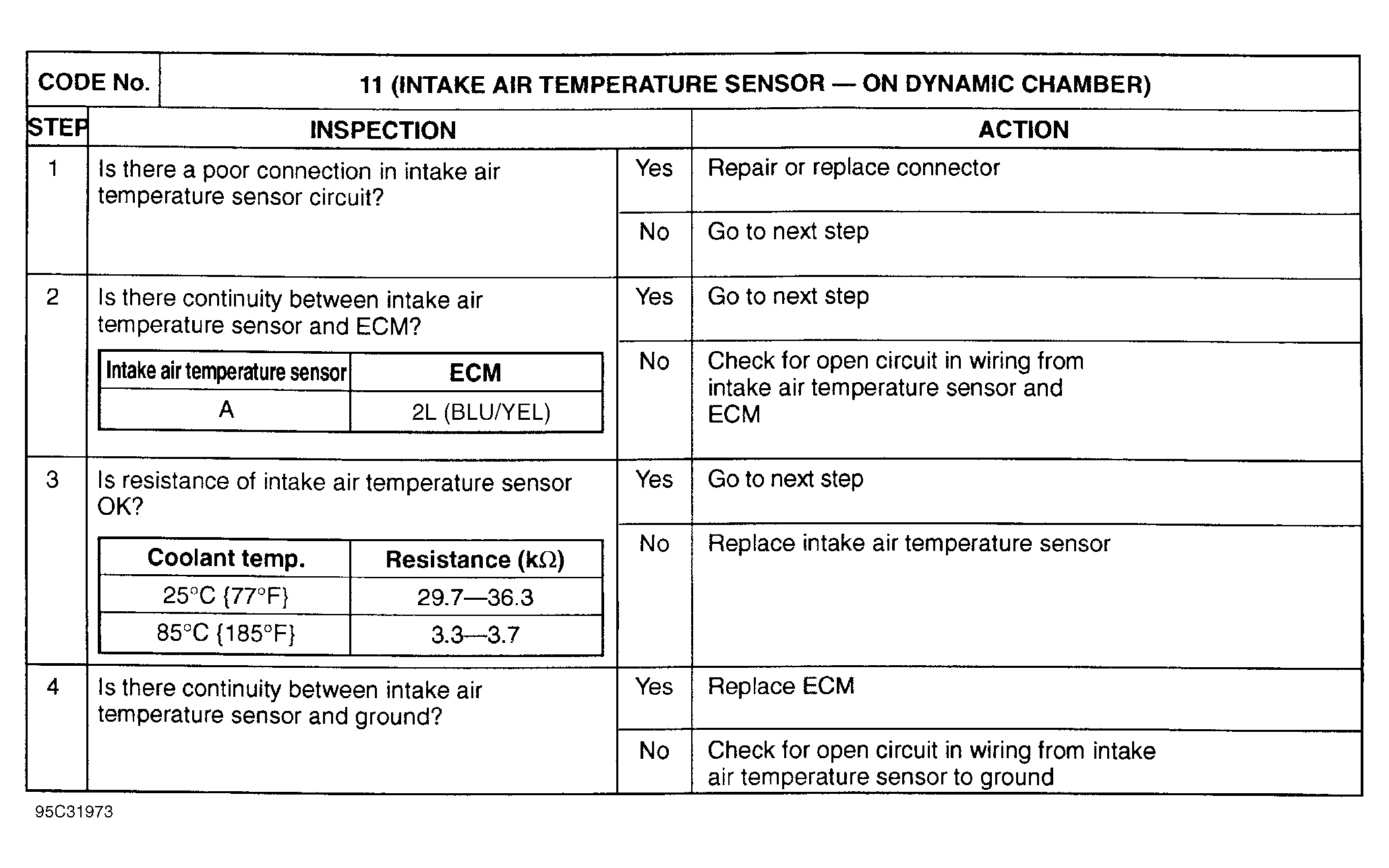

Fig 1: Trouble Code No. 11 Intake Air Temperature Sensor - On Dynamic Chamber

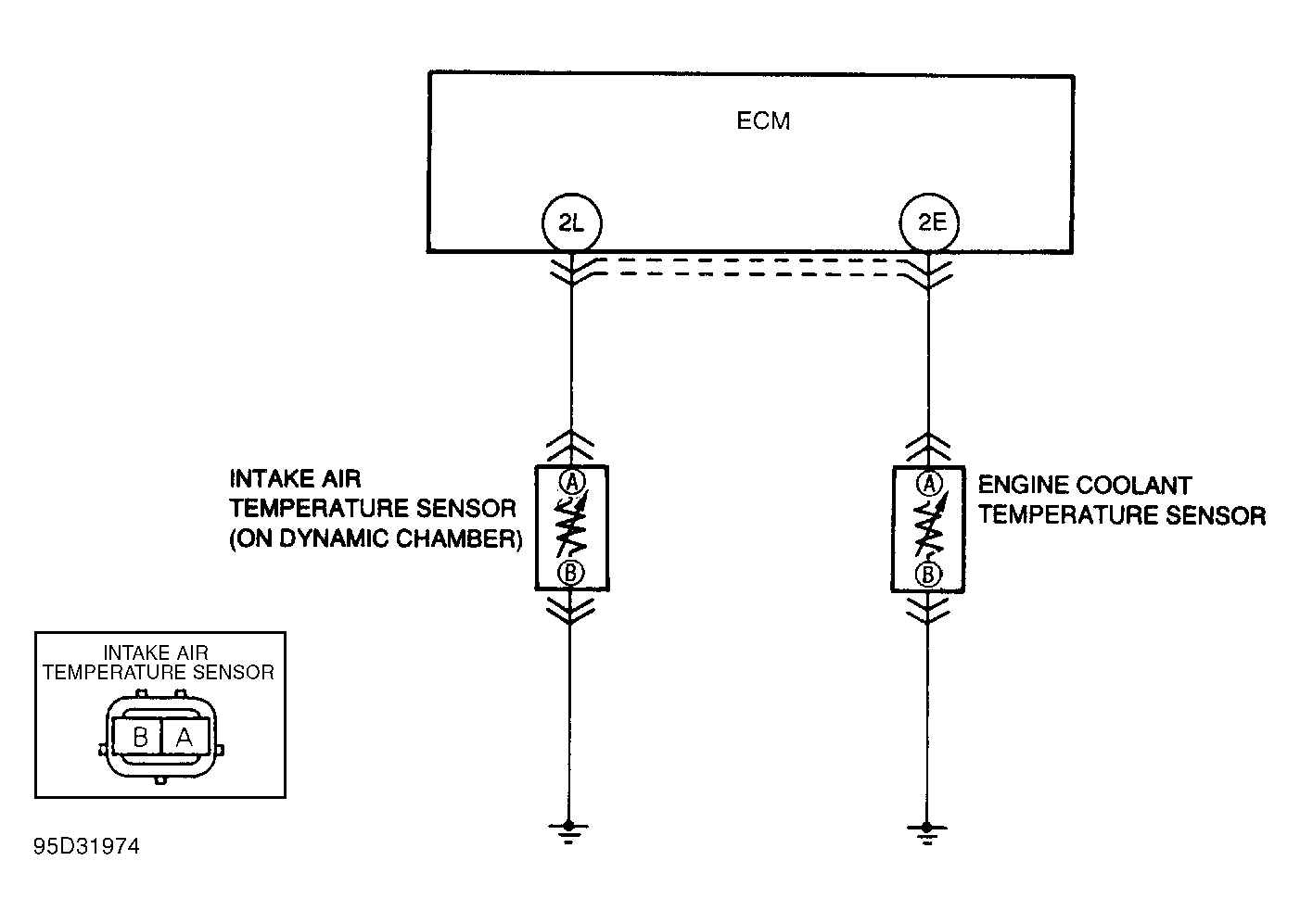

Fig 2: Trouble Code No. 11 Intake Air Temperature Sensor Circuit Diagram
