Code 12: Throttle Position Sensor

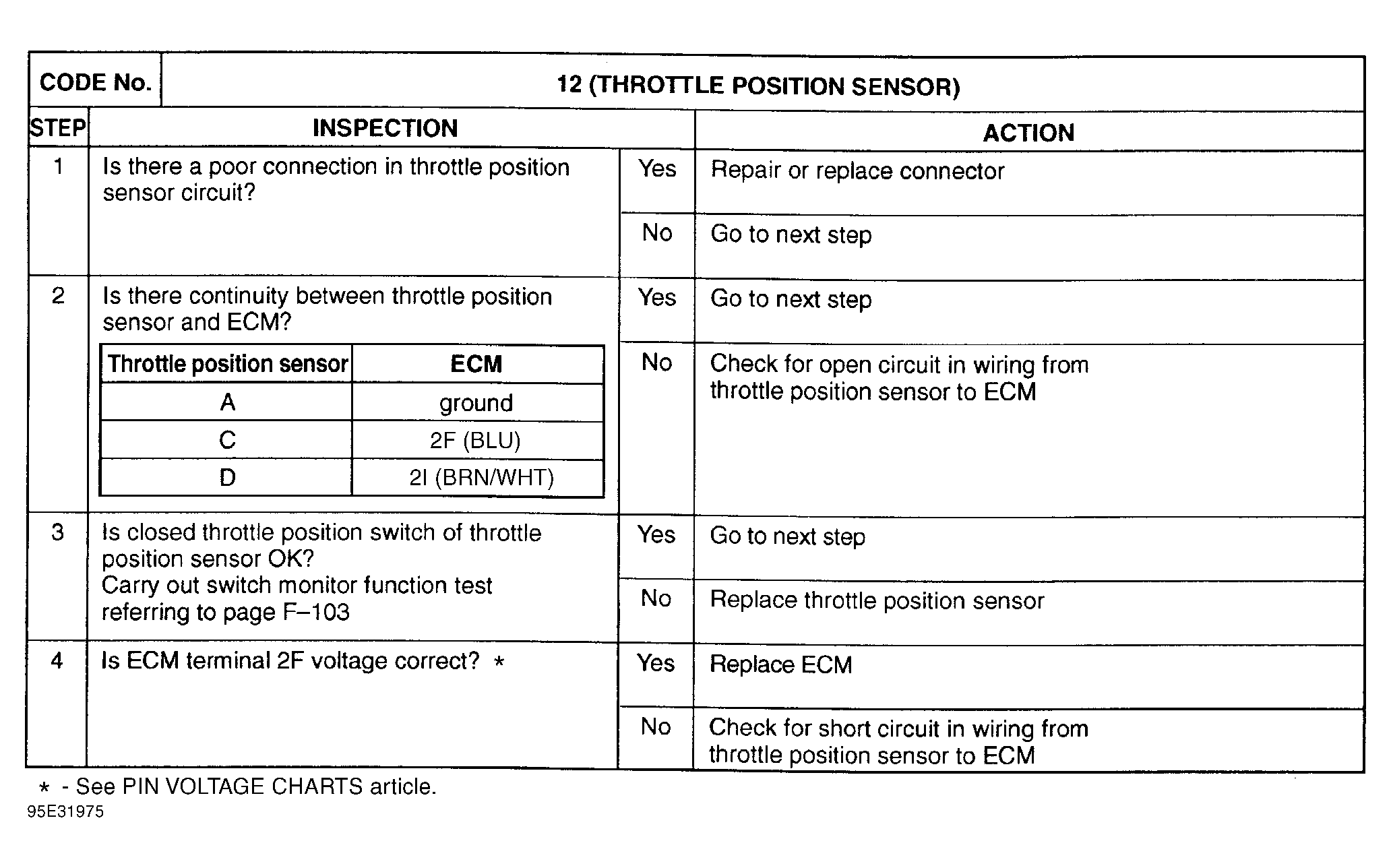

Fig 1: Trouble Code No. 12 Throttle Position Sensor

G95E31975

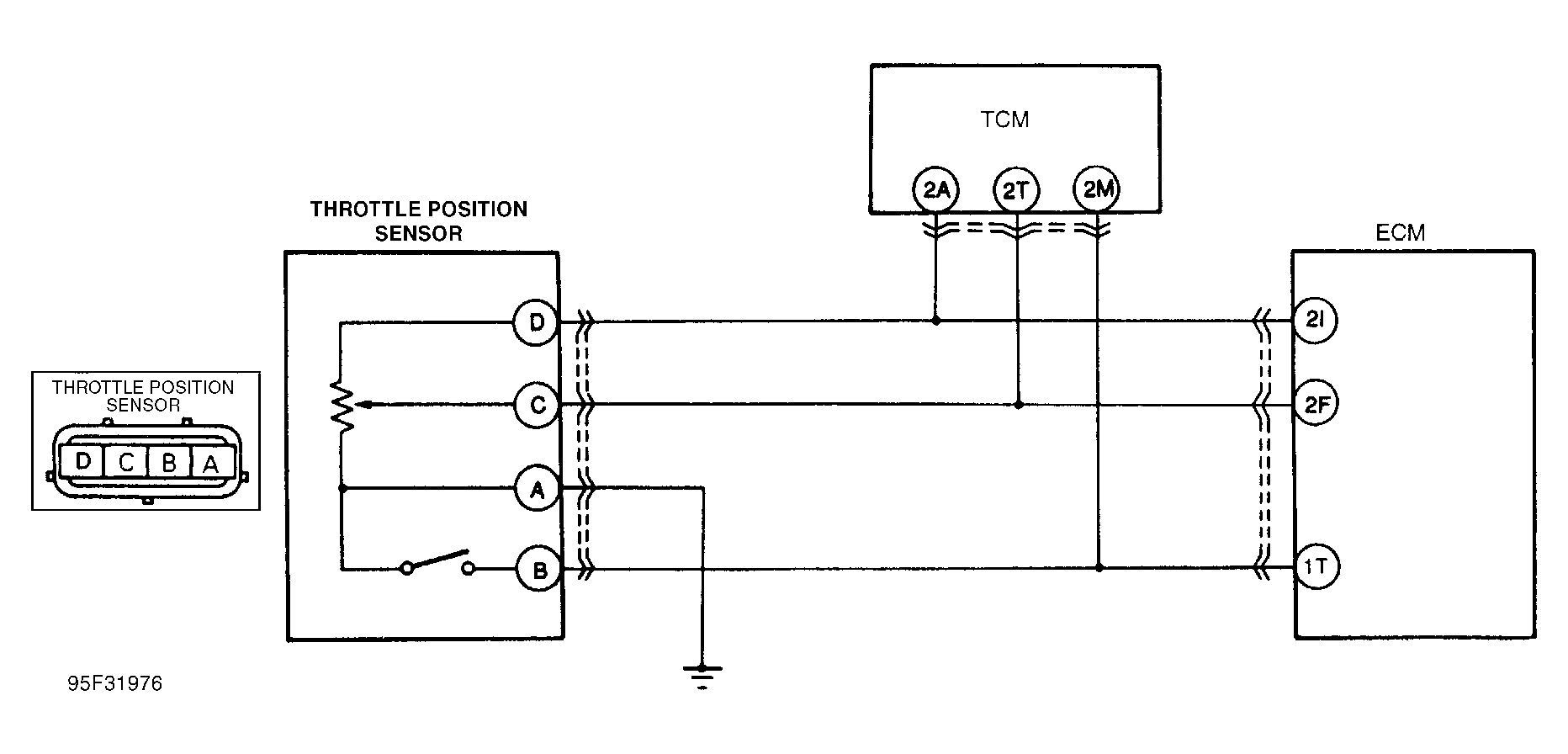

Fig 2: Trouble Code No. 12 Throttle Position Sensor Circuit Diagram

G95F31976
