Code 15 & 23: Left/Right Heated Oxygen Sensor - Inactive

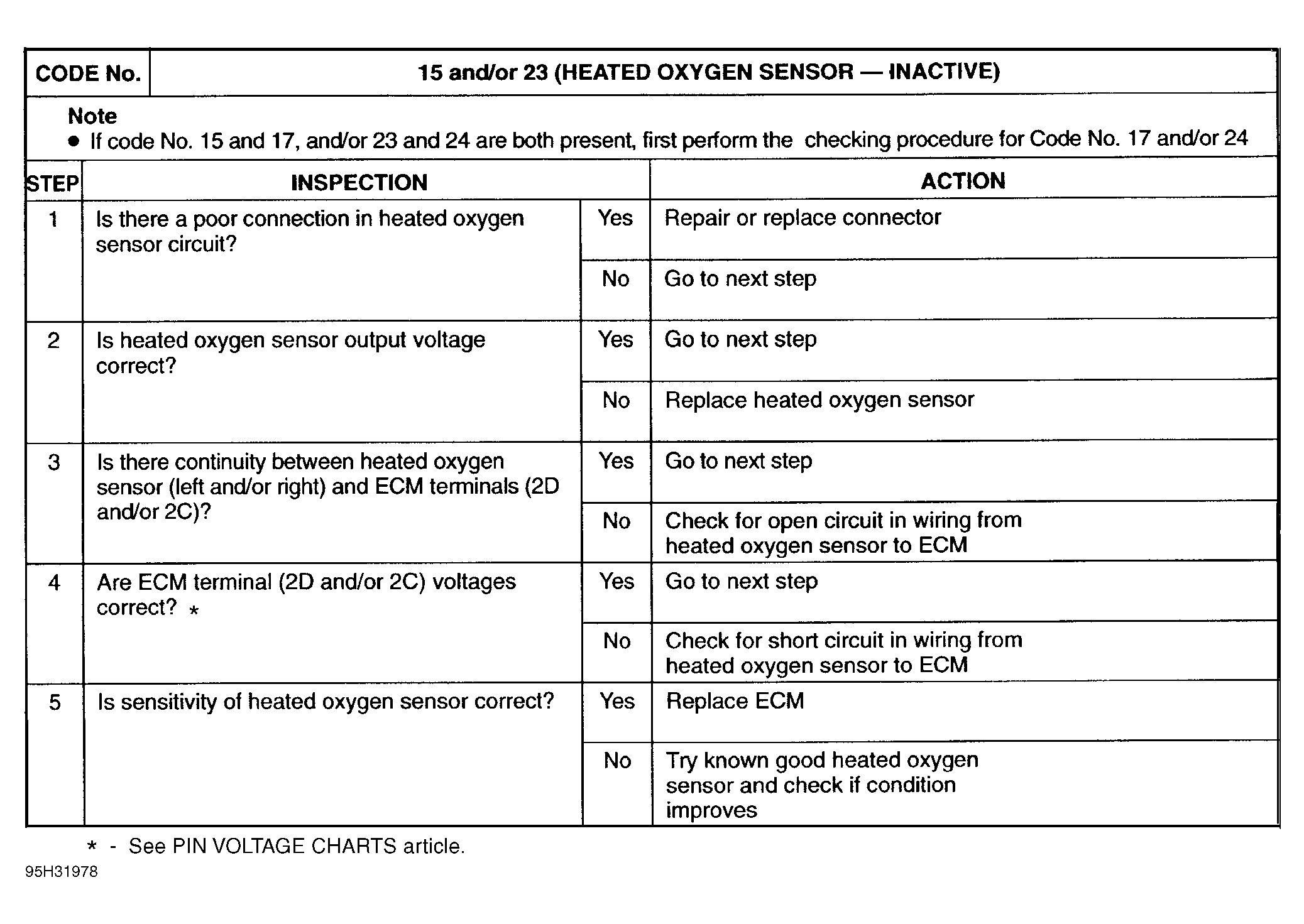

Fig 1: Trouble Code No. 15/23 Left/Right Heated Oxygen Sensor - Inactive

G95H31978

Fig 2: Trouble Code No. 15/23 Heated Oxygen Sensor Circuit Diagram

G95I31979
