Code 17 & 24: Left/Right Closed Loop System

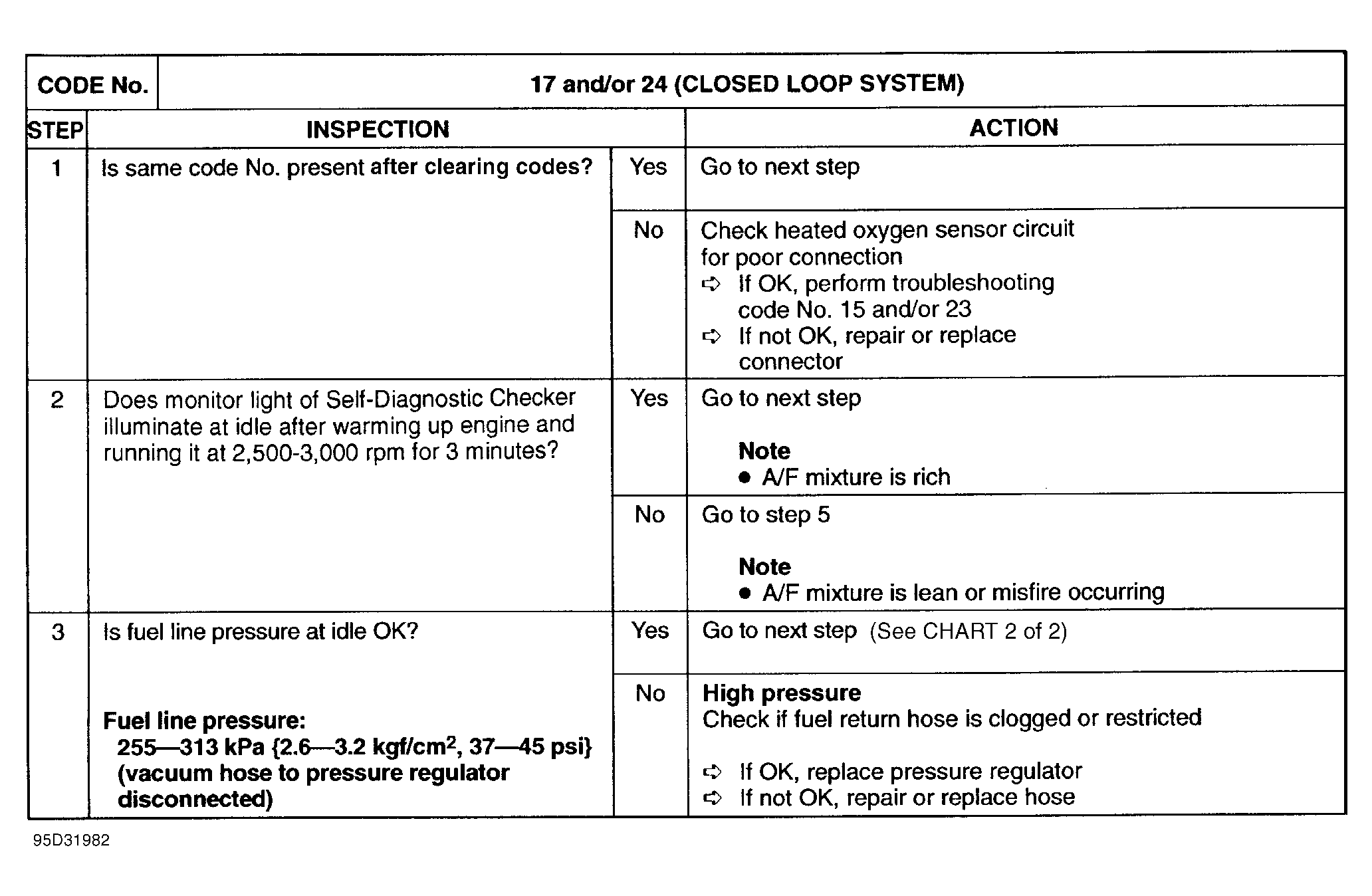

Fig 1: Trouble Code No. 17/24 Left/Right Closed Loop System (1 Of 2)

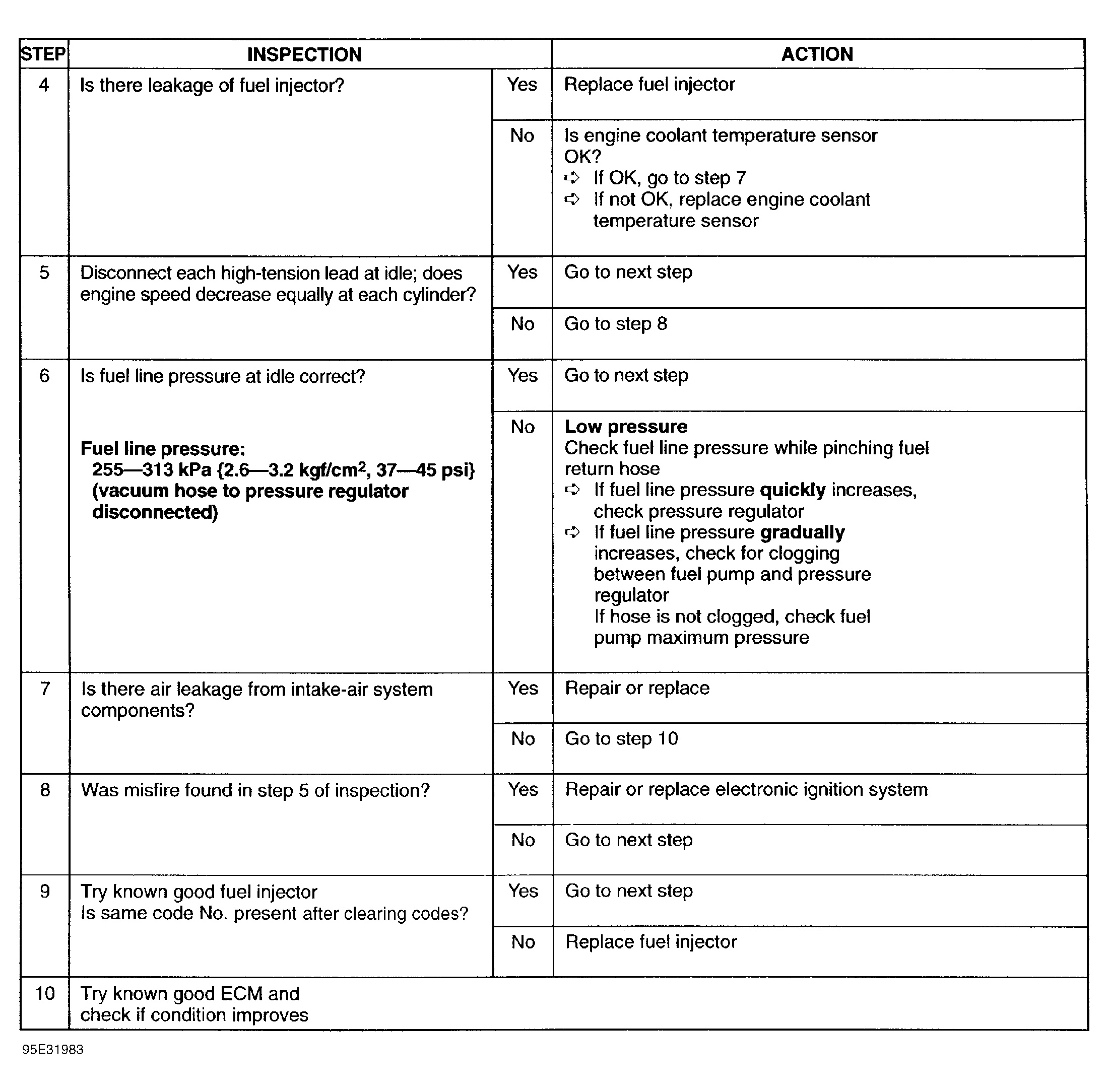

Fig 2: Trouble Code No. 17/24 Left/Right Closed Loop System (2 OF 2)

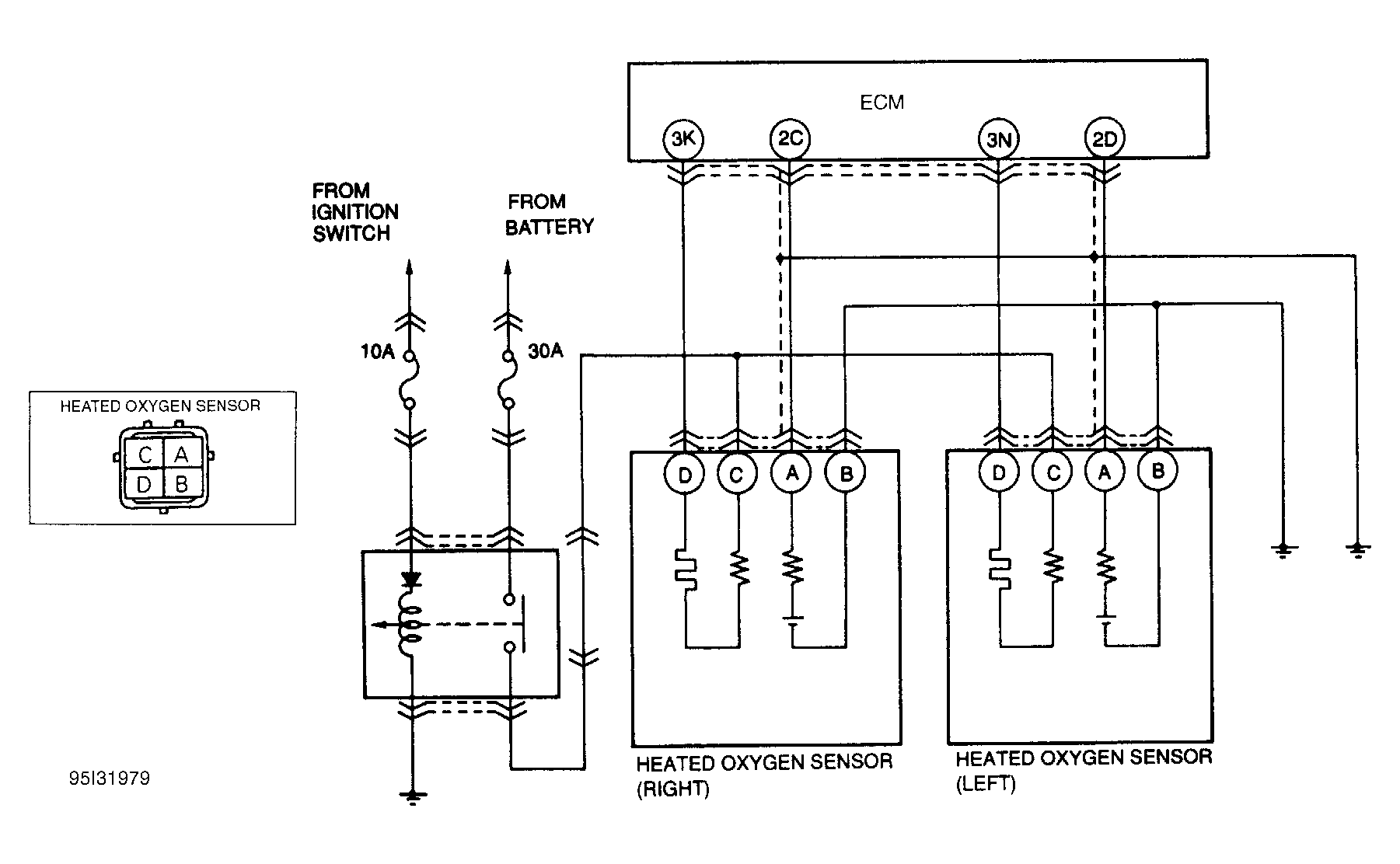

Fig 3: Trouble Code No. 17/24 Heated Oxygen Sensor Circuit Diagram
