Code 3: Distributor - SGC Signal

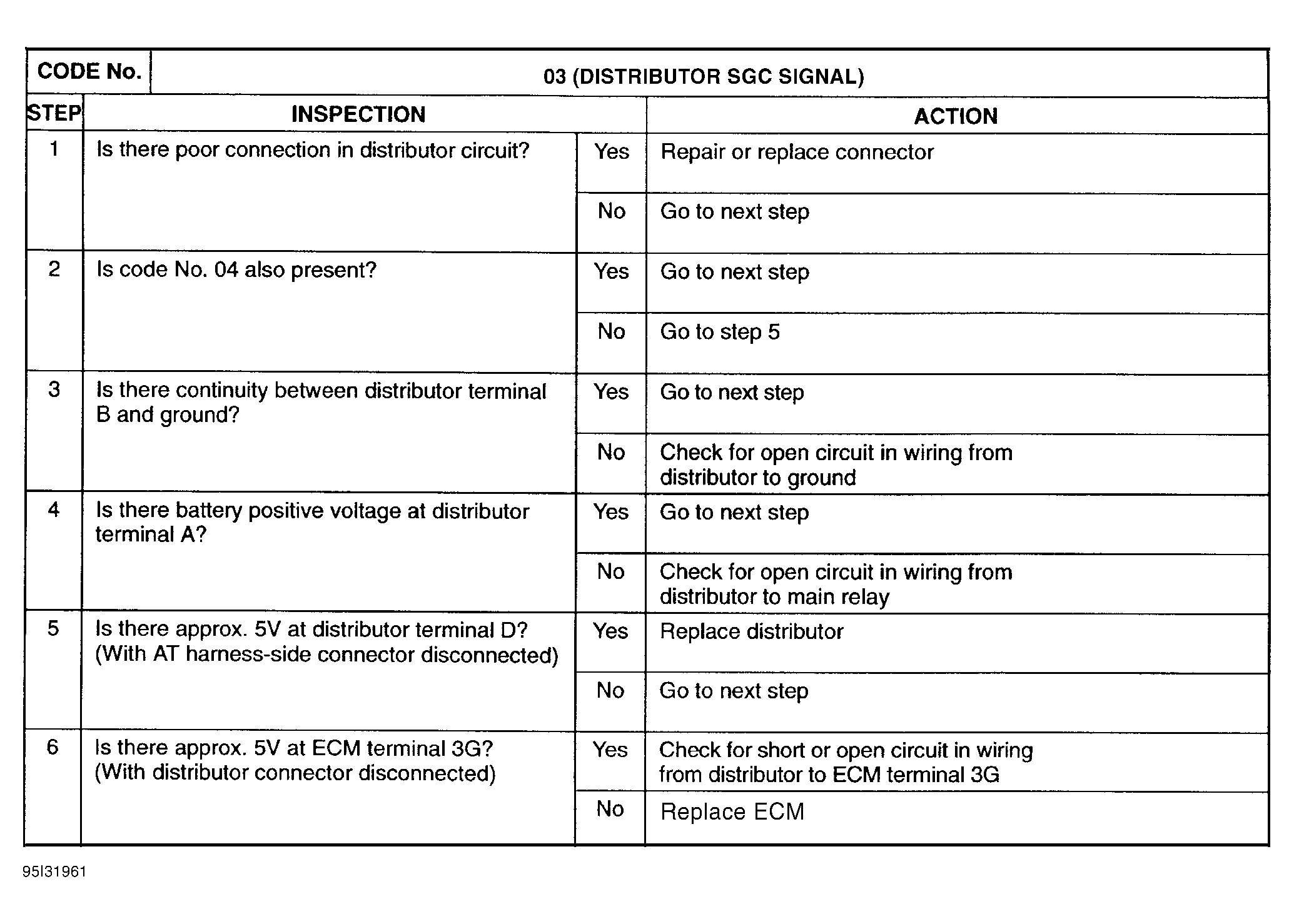

Fig 1: Trouble Code No. 3 Distributor - SGC Signal

G95I31961

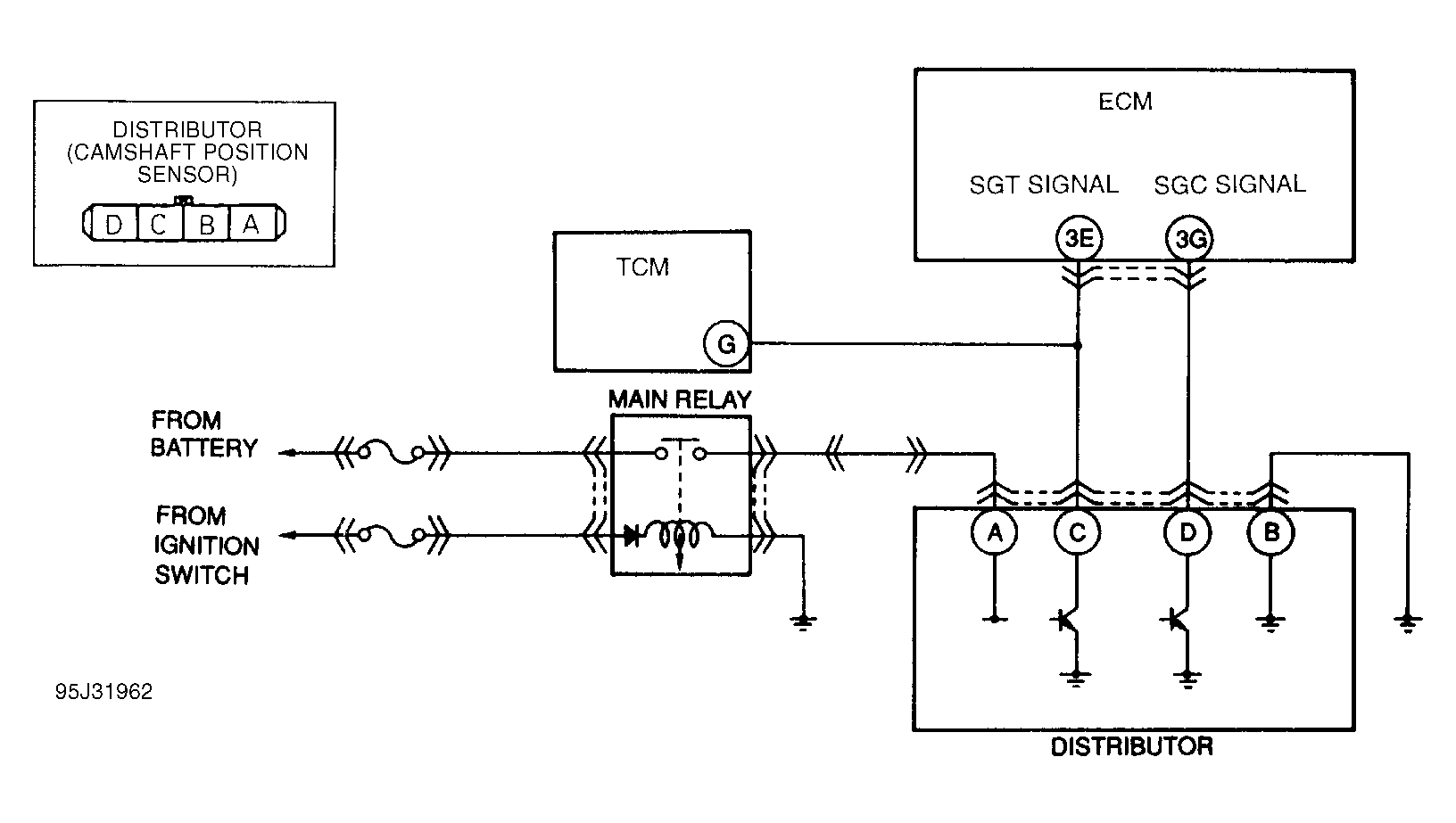

Fig 2: Trouble Code No. 3 Distributor (Camshaft Position Sensor) Circuit Diagram

G95J31962
