Home › Mazda › 1995 › 929 › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Trouble Code Charts › Code 30: Cold Start Injector Relay

Code 30: Cold Start Injector Relay

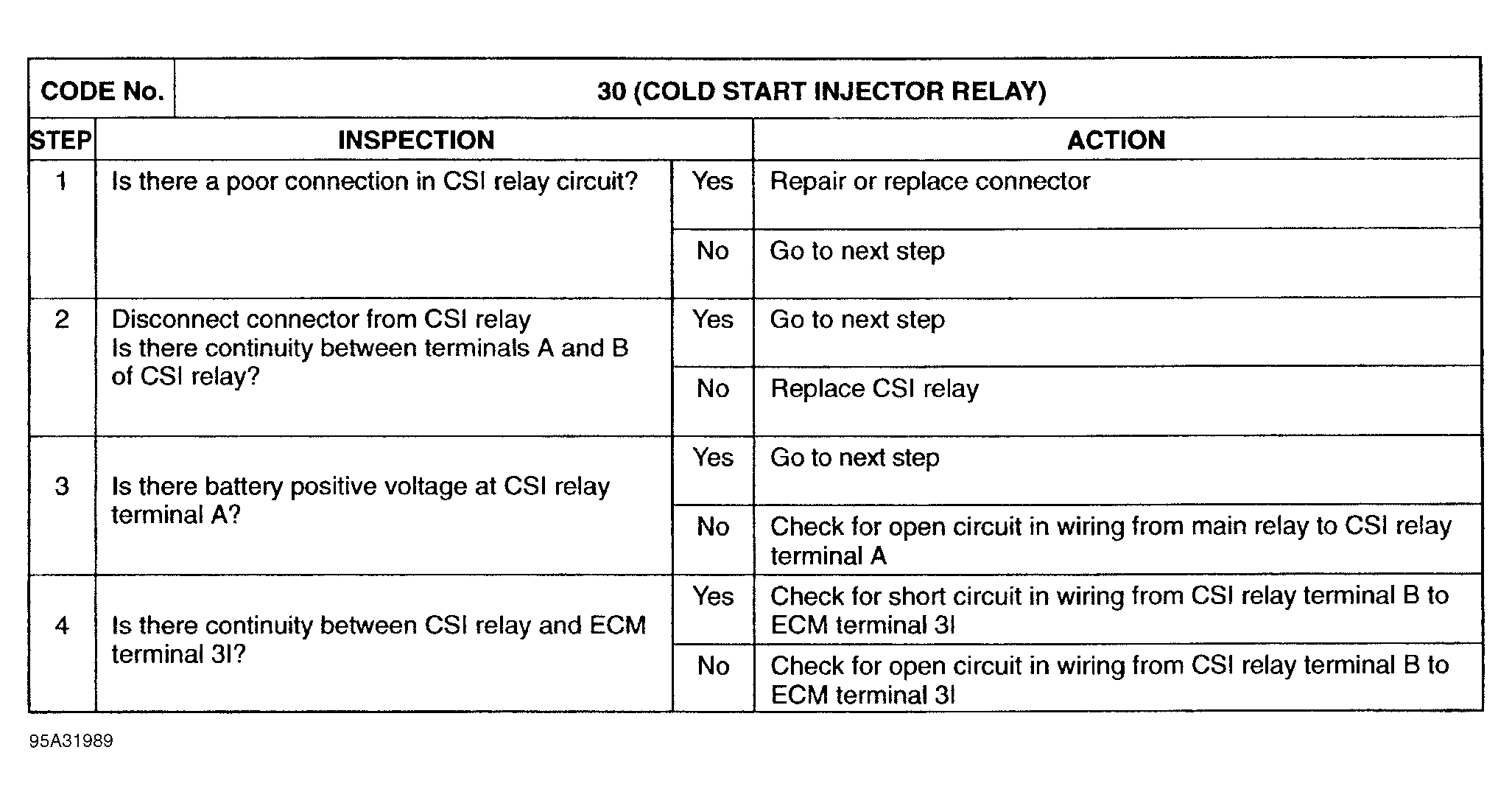

Fig 1: Trouble Code No. 30 Cold Start Injector Relay

G95A31989

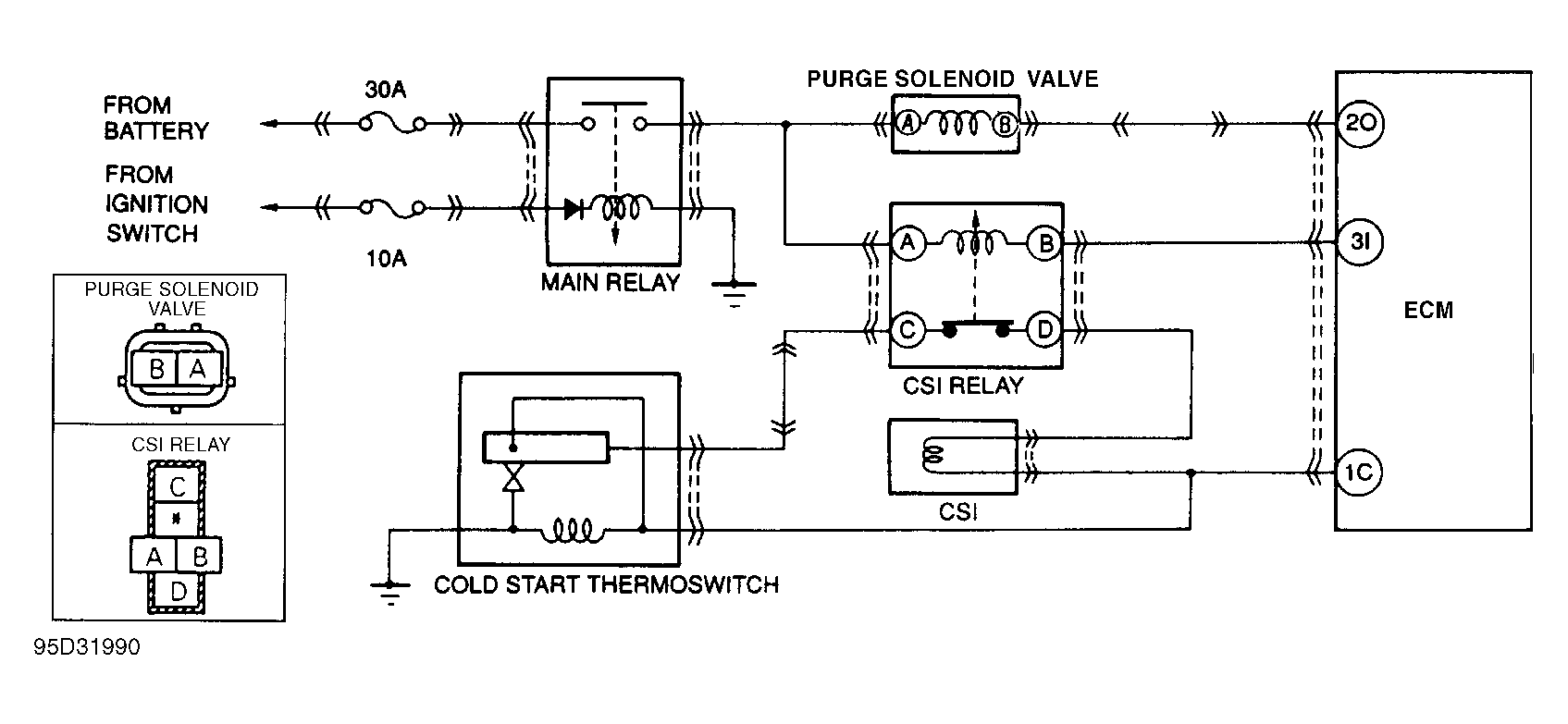

Fig 2: Trouble Code No. 30 Cold Start Injector Relay Circuit Diagram

G95D31990
