Code 34: Idle Air Control Valve - In BAC Valve

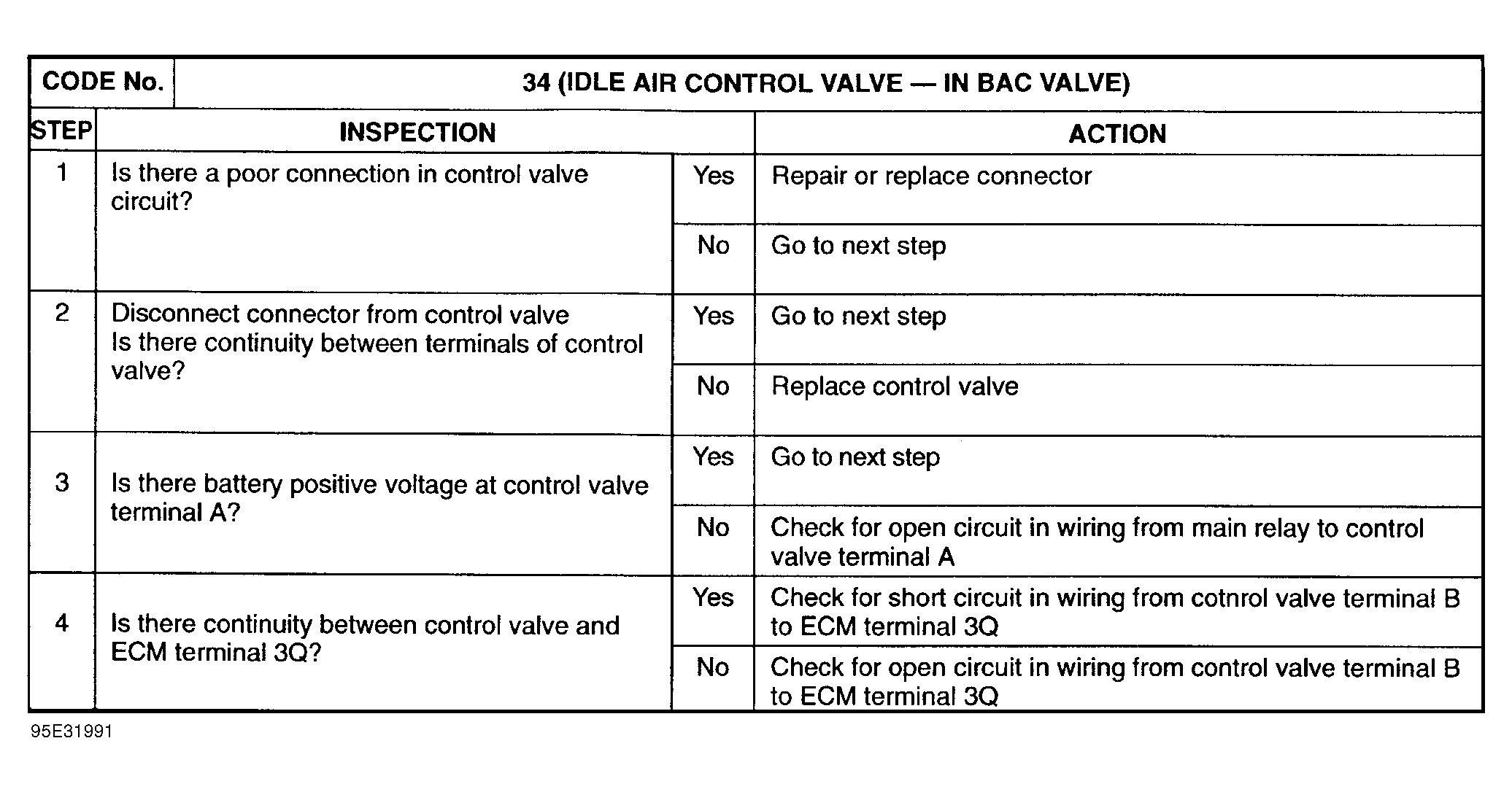

Fig 1: Trouble Code No. 34 Idle Air Control Valve - In Bac Valve

G95E31991

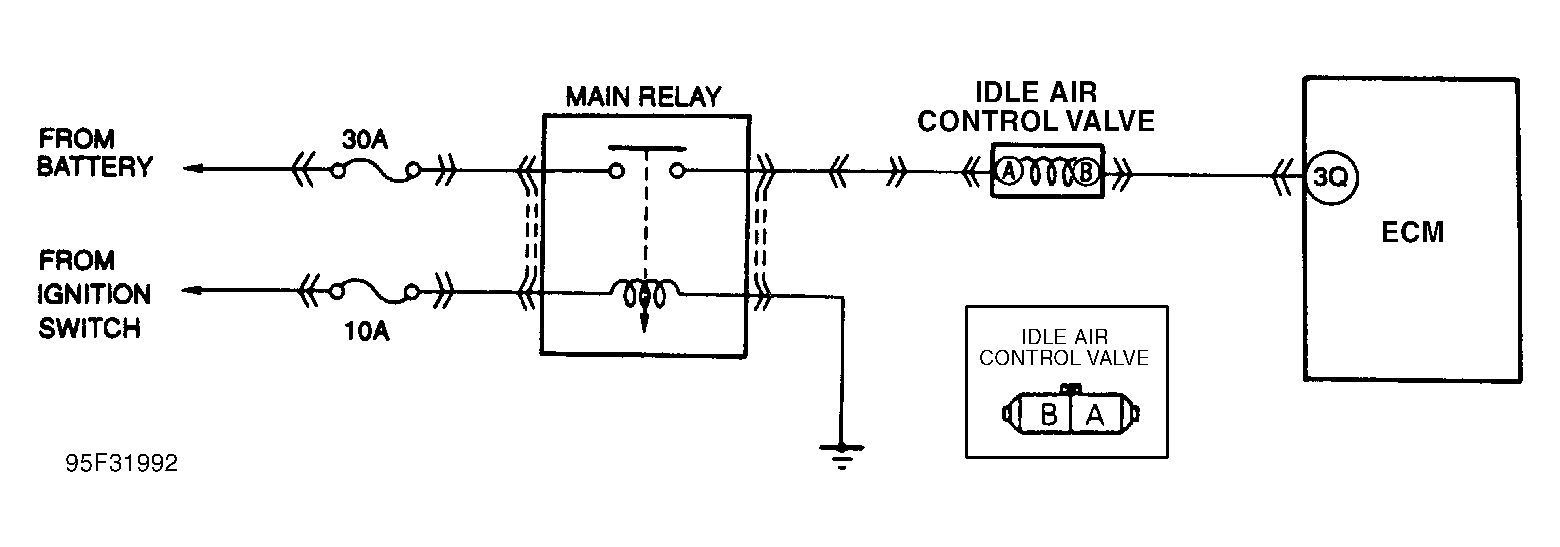

Fig 2: Trouble Code No. 34 Idle Air Control Valve Circuit Diagram

G95F31992
