Code 6: Vehicle Speedometer Sensor

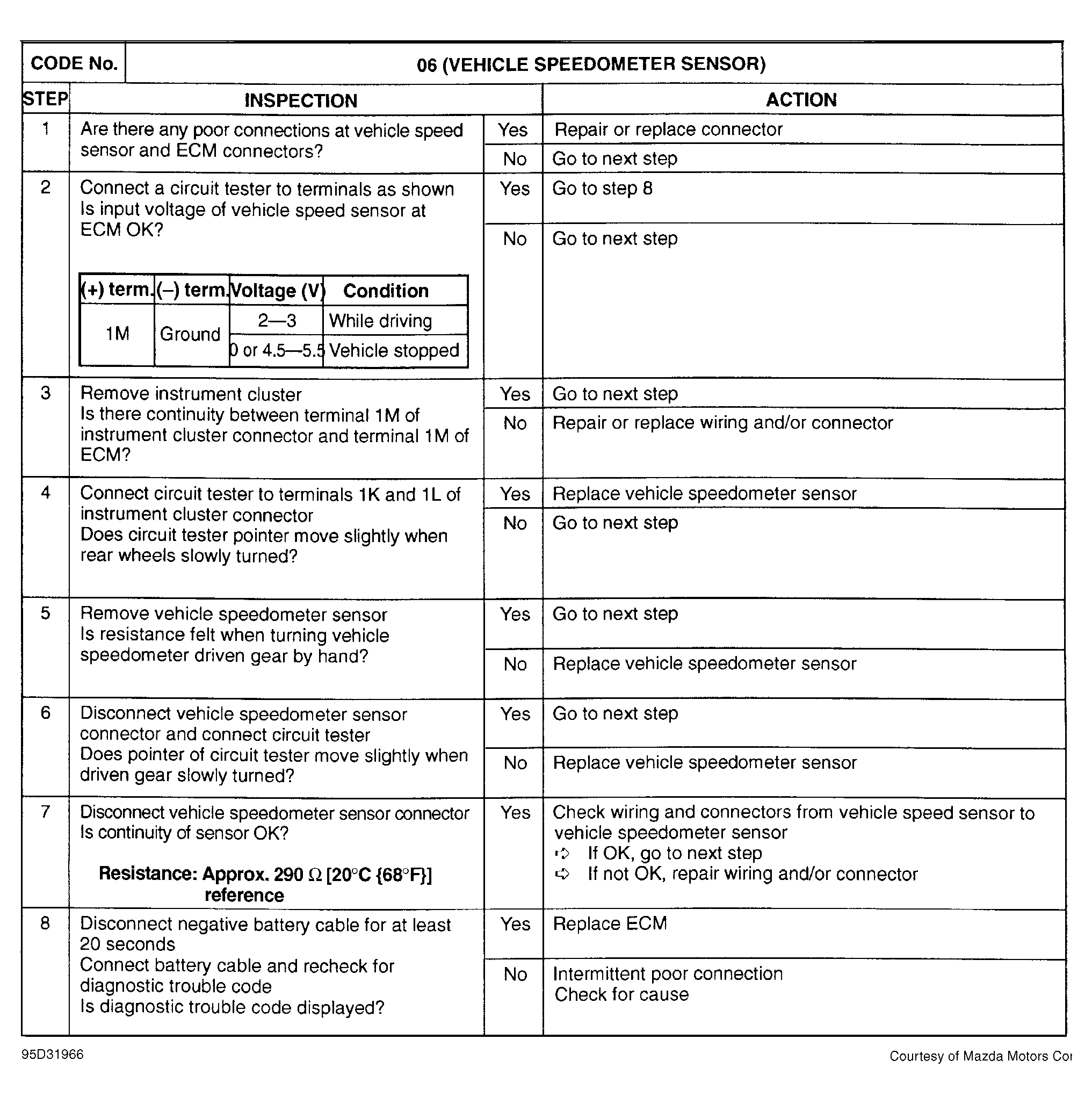

Fig 1: Trouble Code No. 6 Vehicle Speedometer Sensor

G95D31966

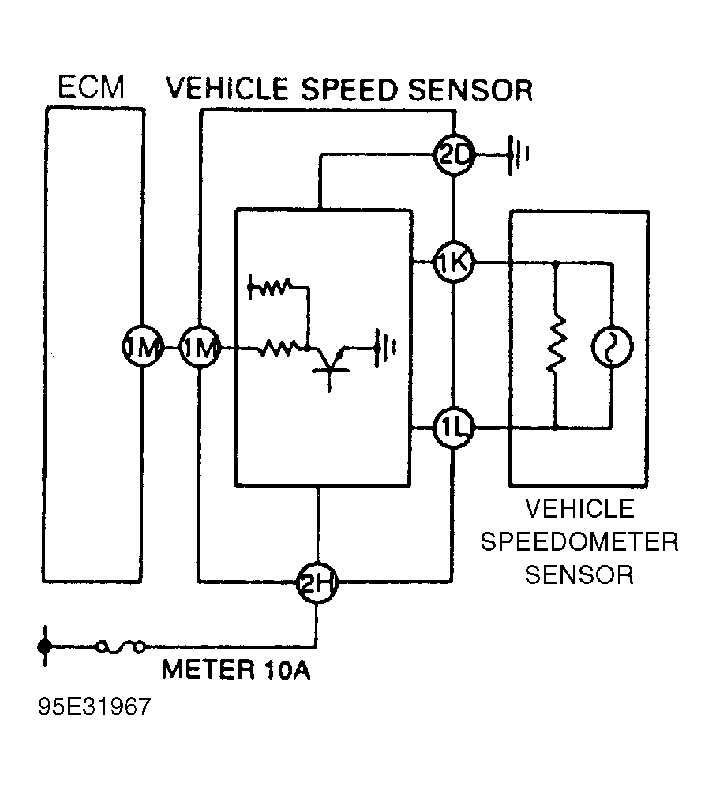

Fig 2: Trouble Code No. 6 Vehicle Speedometer Sensor Circuit Diagram

G95E31967
