RABS Control Module Test
NOTE:
Use a fine wire probe when testing RABS control module connector terminals to prevent damage to connector.

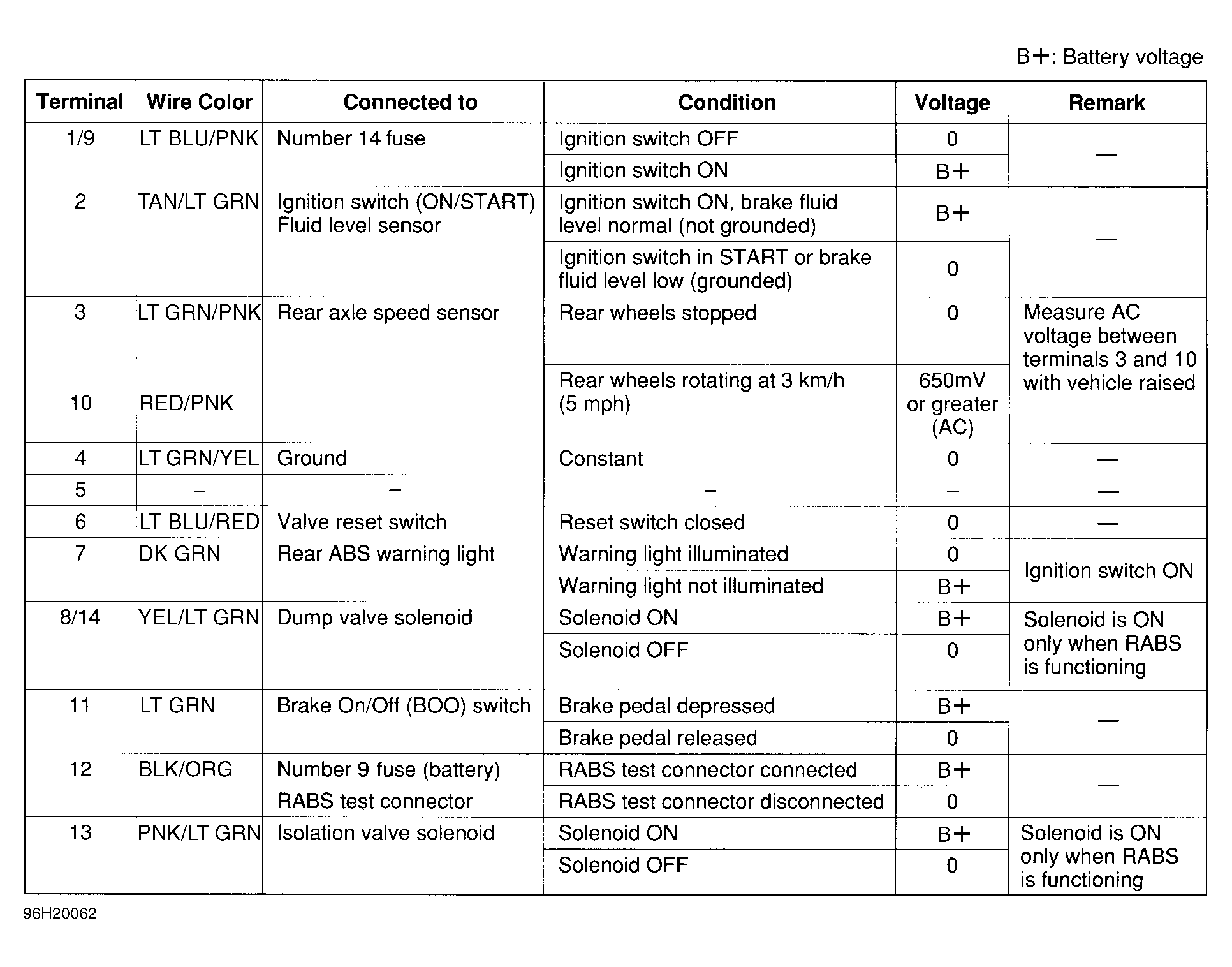

Disconnect negative battery cable. Disconnect RABS control module harness connector. See COMPONENT LOCATIONS . Using DVOM, measure voltage between applicable terminal of RABS control module harness connector and ground. See Fig 1 . If voltage is not as specified, replace RABS control module.
