Code P0340: Camshaft Position Sensor Circuit Malfunction

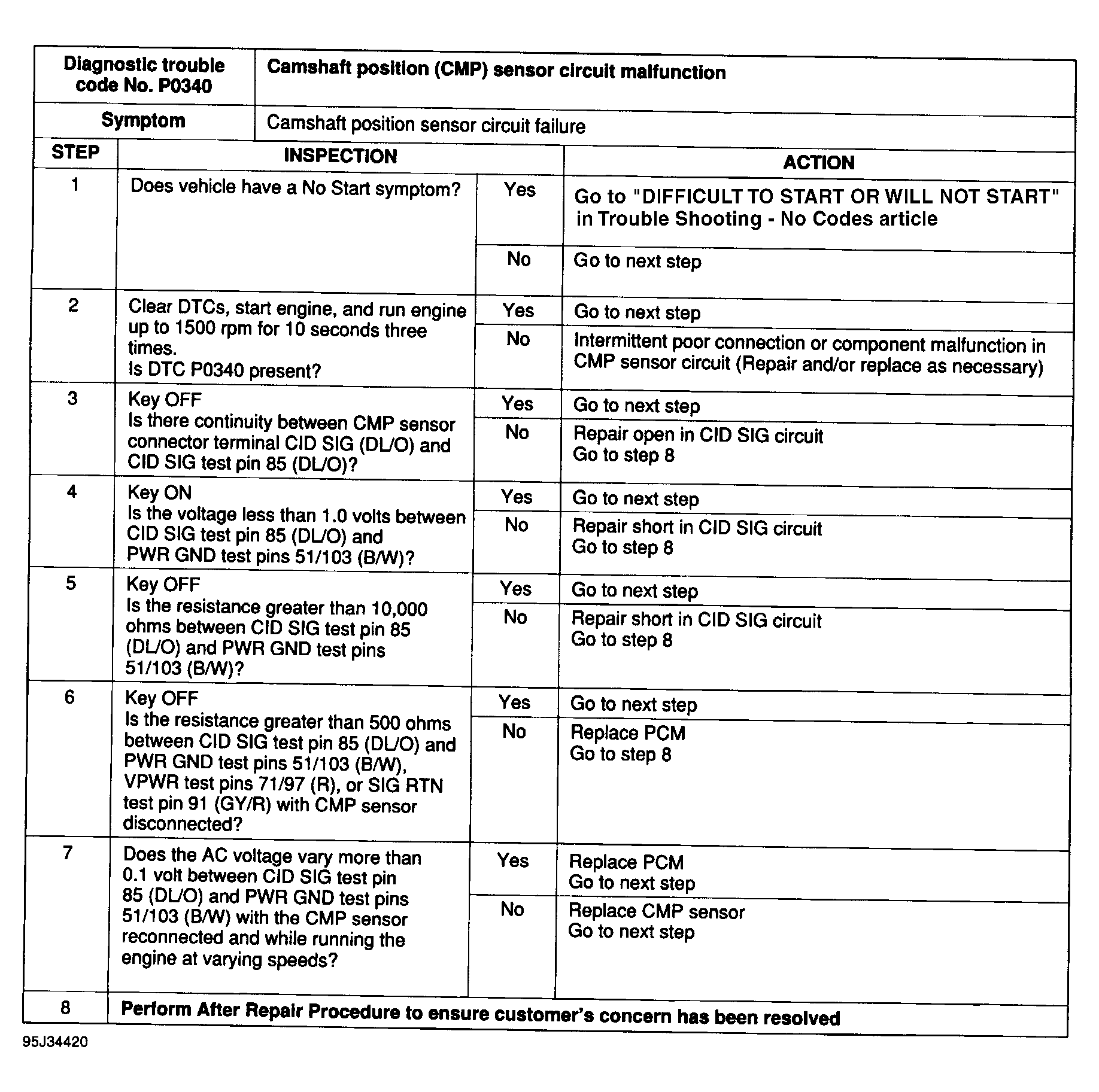

Fig 1: Trouble Codes No. P0340 Camshaft Position Sensor Circuit Malfunction (B2300)

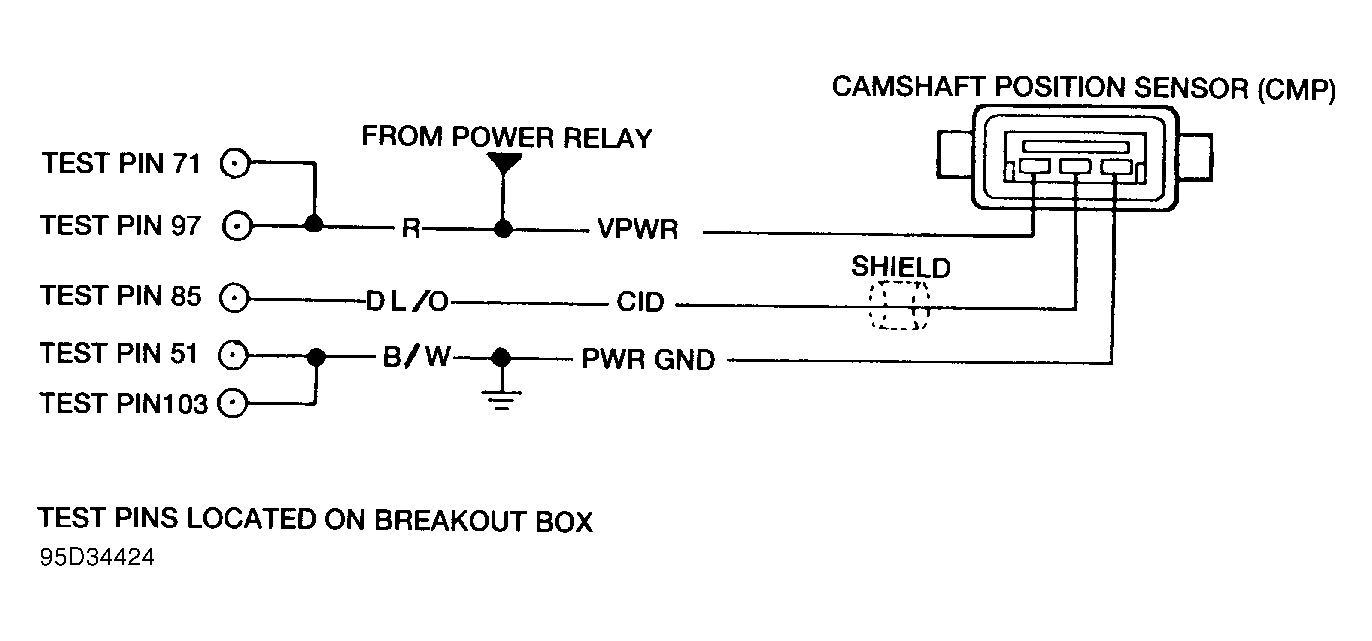

Fig 2: Trouble Codes No. P0340 Camshaft Position (CMP) Sensor Circuit Diagram (B2300)

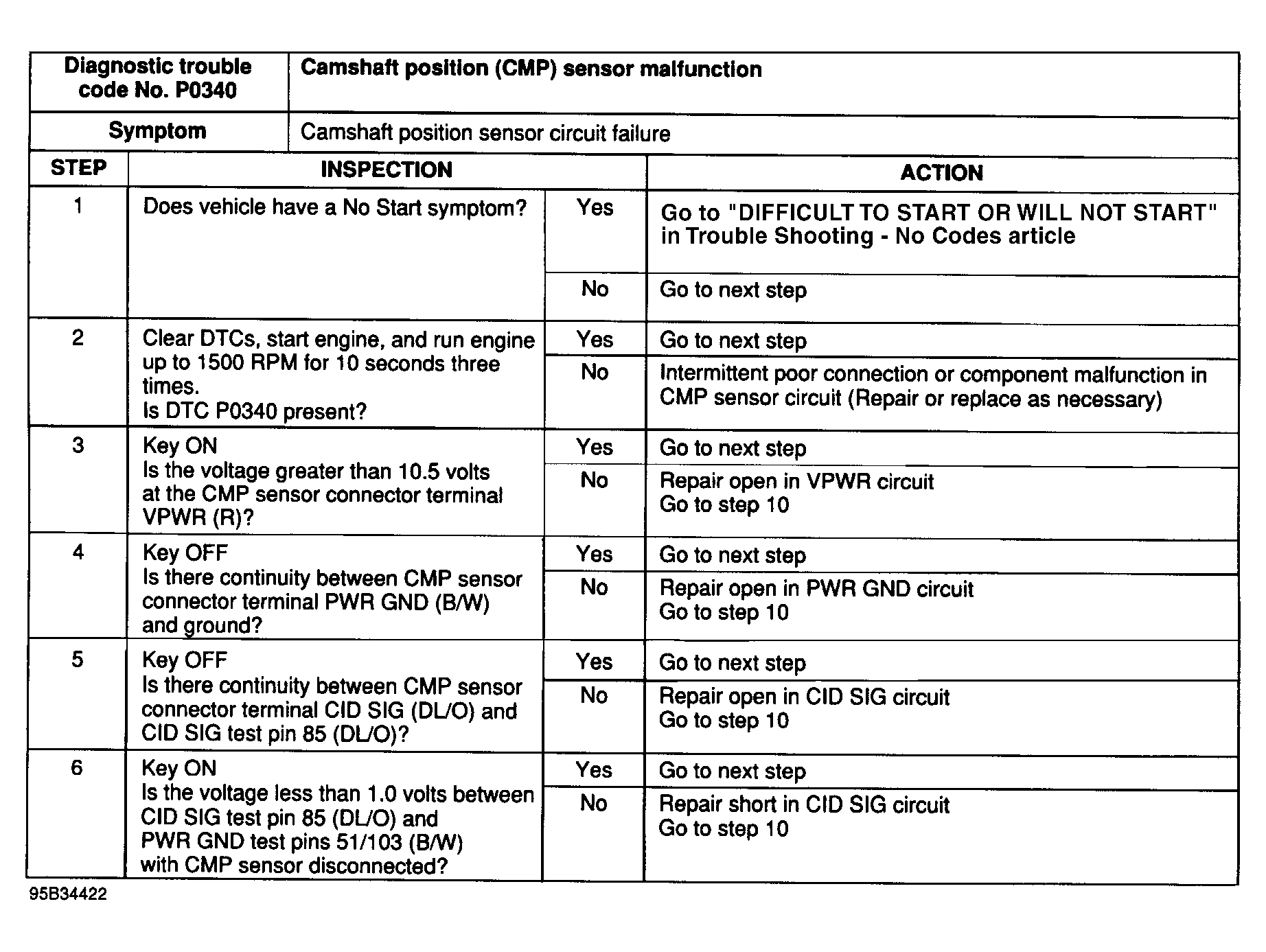

Fig 3: Trouble Code No. P0340 Camshaft Position Sensor Circuit Malfunction (1 Of 2) (B3000 & B4000)

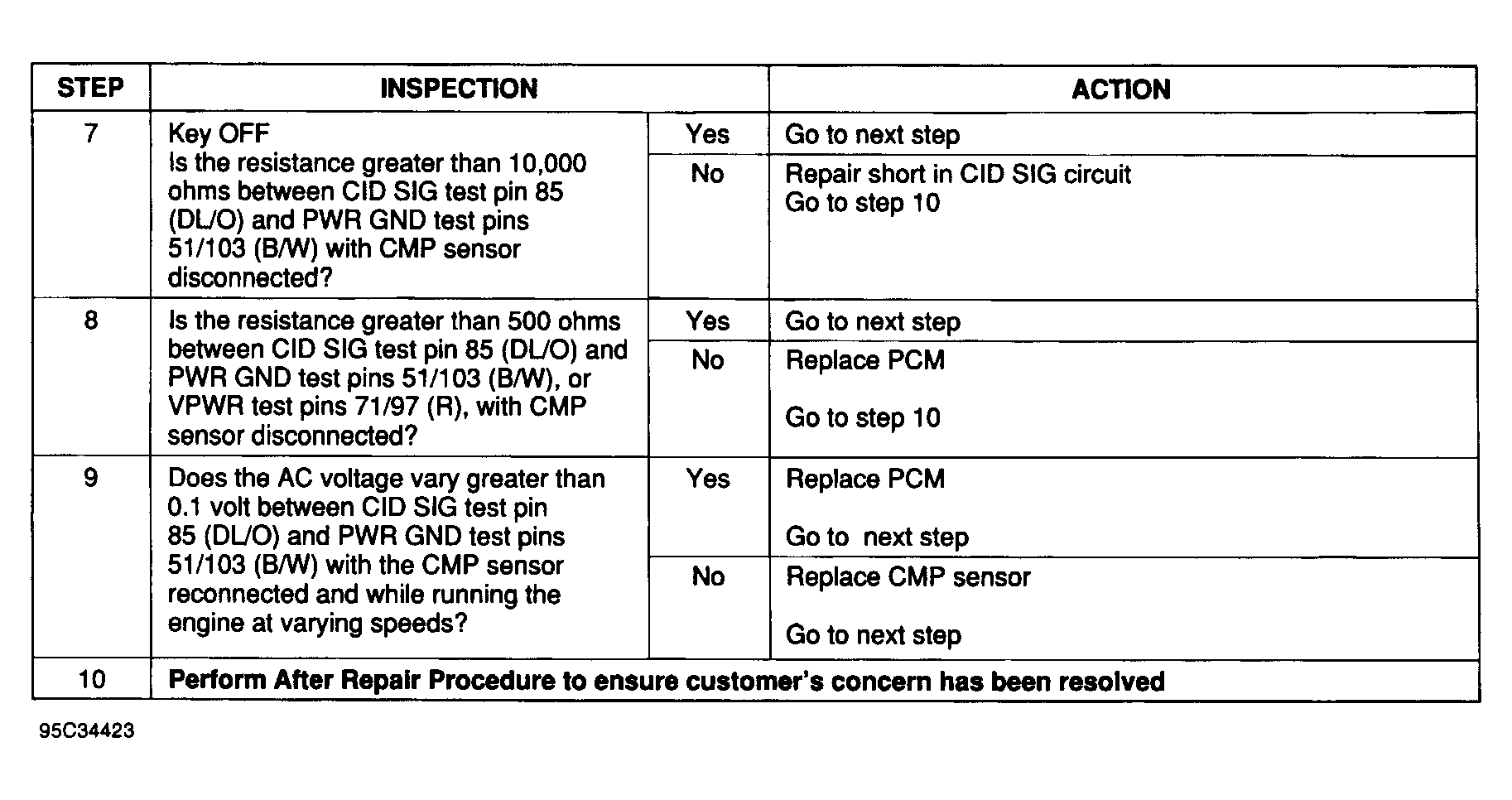

Fig 4: Trouble Code No. P0340 Camshaft Position Sensor Circuit Malfunction (2 Of 2) (B3000 & B4000)

Fig 5: Trouble Code No. P0340 Camshaft Position Sensor Circuit Malfunction (B3000 & B4000)
