Code P0500: Vehicle Speed Sensor Circuit Malfunction

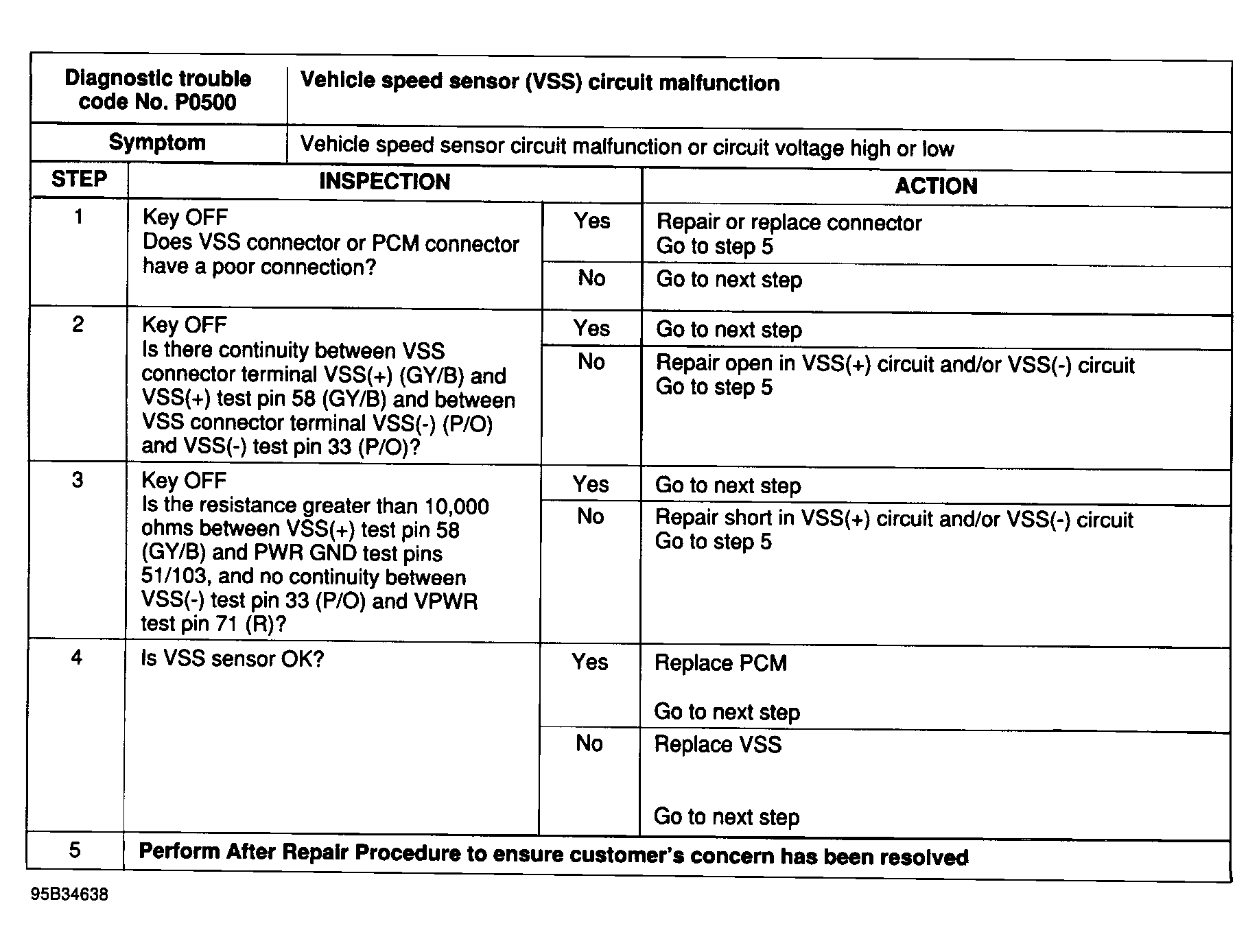

Fig 1: Trouble Code No. P0500 Vehicle Speed Sensor Circuit Malfunction

G95B34638

Fig 2: Trouble Code No. P0500 Vehicle Speed Sensor (VSS) Circuit Diagram

G95C34639
