Code P0715: Turbine Shaft Sensor Circuit Malfunction

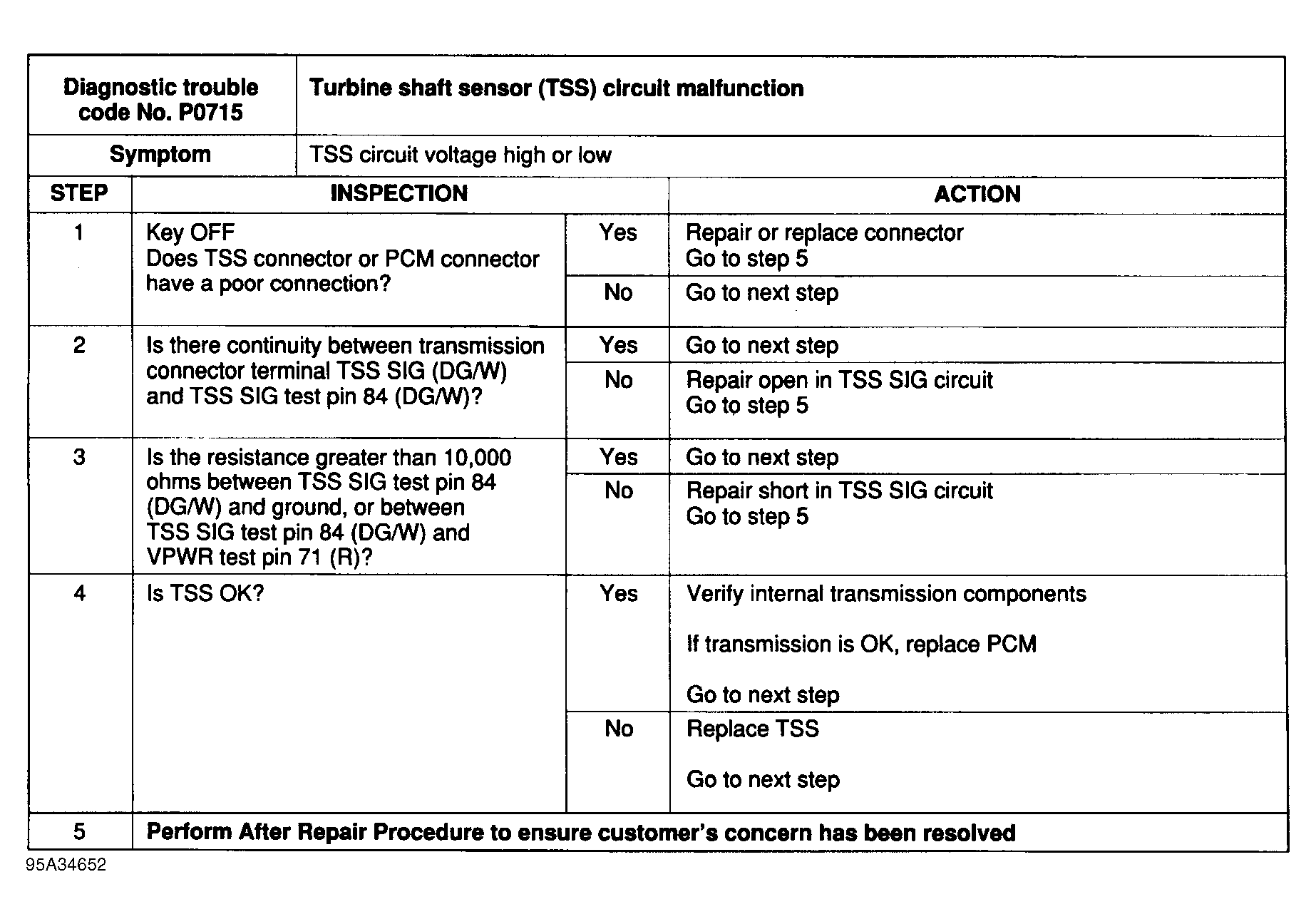

Fig 1: Trouble Code No. P0715 Turbine Shaft Sensor Circuit Malfunction

G95A34652

Fig 2: Trouble Code No. P0715 Turbine Shaft Sensor (TSS) Circuit Diagram

G95B34653
