Code P1121: Throttle Position Sensor Circuit Malfunction

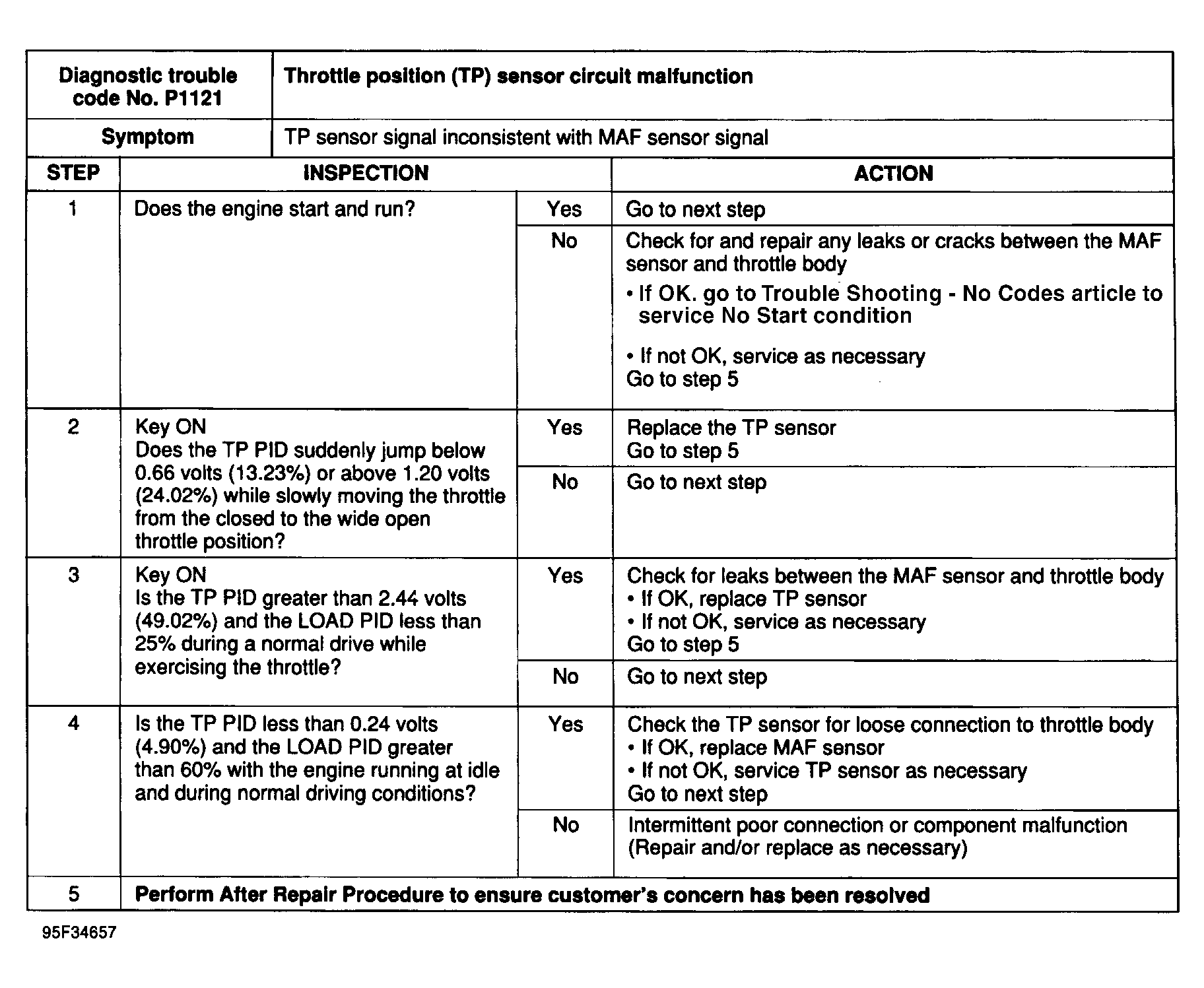

Fig 1: Trouble Code No. P1121 Throttle Position Sensor Circuit Malfunction

Fig 2: Trouble Code No. P1121 Throttle Position (TP) Sensor Circuit Diagram
